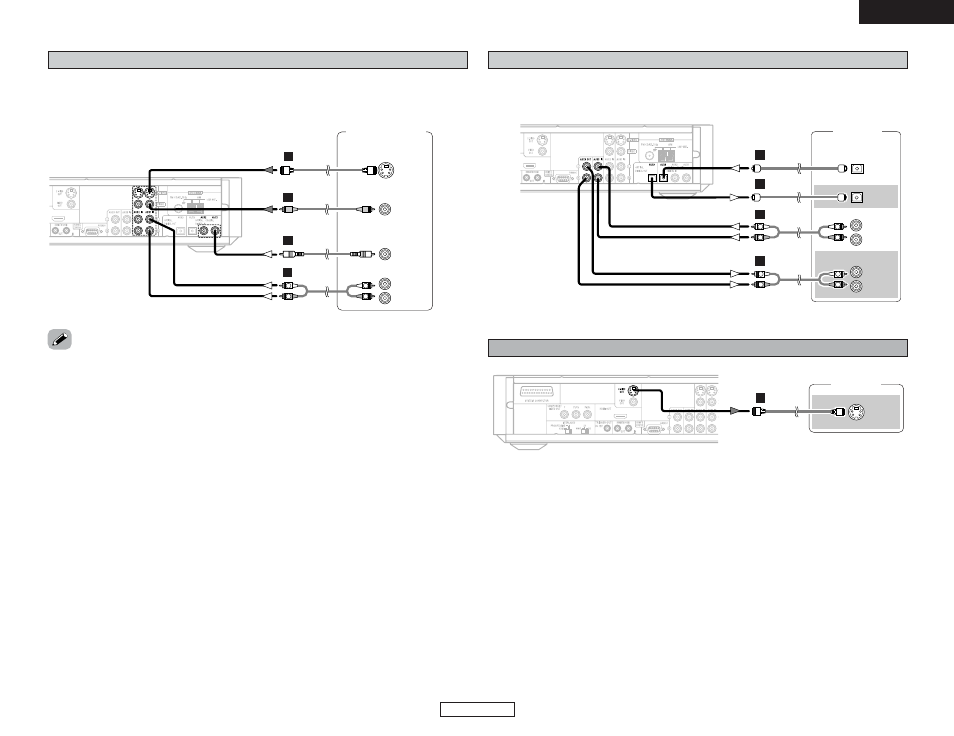

Connecting Other Sources Connecting Other Sources
Connecting a DBS / Cable tuner / VCR
• When making connections, also refer to the operating instructions of the other components.
• If the device to be connected is equipped with a digital audio output (COAXIAL), connect it to the
DIGITAL Input (COAXIAL) on the ADV-S301.
DBS / Cable Tuner/
VCR
R
L
AUDIO OUT
COAXIAL
OUT
S VIDEO
OUT
VIDEO
OUT
R
L
R
L
B
E
D
A
Connecting a tape deck, MD recorder or CD recorder
• When making connections, also refer to the operating instructions of the other components.
• Connect the tape deck’s audio output and audio input terminals to the ADV-S301’s AUX3 using
pin-plug cords.
Tape deck /
MD recorder /
CD recorder
R
L
AUDIO OUT
R
L
AUDIO IN
OPTICAL
IN
R
L
R
L
R
L
R
L
A
A
C
OPTICAL
OUT
C
Monitor TV
S VIDEO
IN
E
Connecting a S-Video connections (Better picture quality)
• When there are multiple input signals, the input signals are detected and the input signal to be
output from the video monitor output terminal is selected automatically in the following order: S-
Video, composite video.
• The S-301 is equipped with a function for up and down converting video signals.
• Cautions on the video conversion function:
There is no TBC (Time Base Collector) for AUX1 and AUX2 Video inputs.
When the component video terminals are used to connect the S-301 with a TV (or monitor,
projector, etc.) and the video or S-Video terminals are used to connect the S-301 with a VCR,
depending on the combination of the TV and VCR the picture may flicker in the horizontal
direction, be distorted, be out of sync or not display at all when playing video tapes.
If this happens, connect a commercially available video stabilizer, etc., with a TBC (time base
corrector) function between the S-301 and the VCR, or if your VCR has a TBC function, turn it on.
