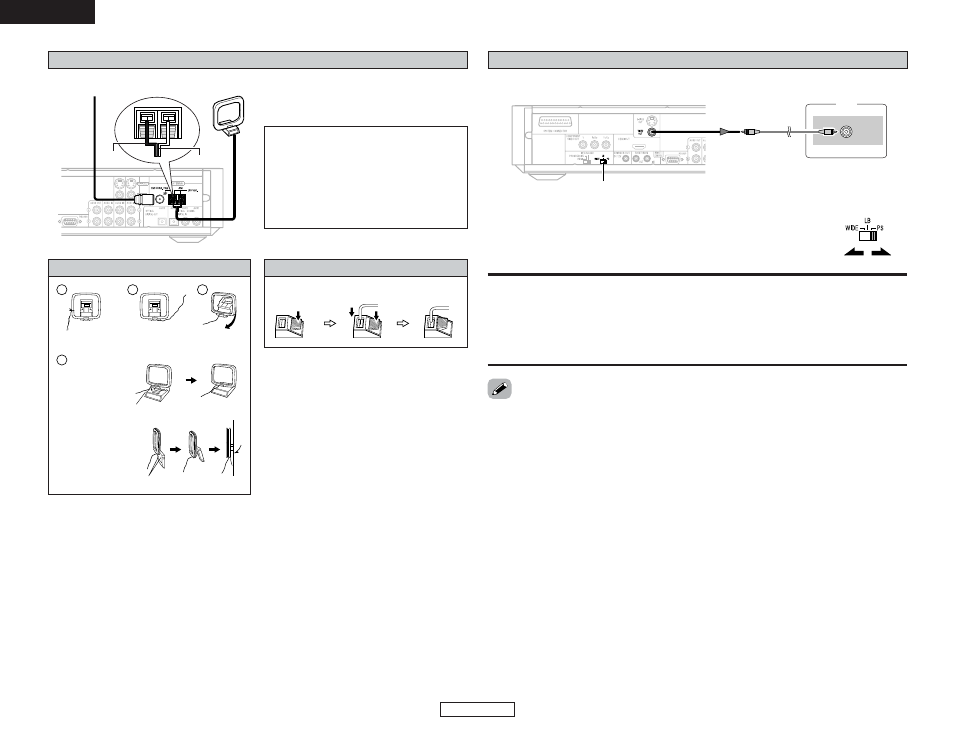

AM loop antenna assembly

ENGLISH

Easy Setup and Operation

Connection of AM antennas

Connecting the supplied antennas

FM indoor antenna

AM loop antenna

Note to CATV system installer:
This reminder is provided to call the CATV
system installer’s attention to Article 820-40
of the NEC which provides guidelines for
proper grounding and, in particular, specifies
that the cable ground shall be connected to
the grounding system of the building, as
close to the point of cable entry as practical.

Remove the vinyl tie
and take out the
connection line.

Bend in the reverse
direction.

a. With the antenna

on top any stable
surface.

b. With the antenna

attached to a wall.

Mount

Installation hole Mount on wall, etc.

1. Push the lever.

2. Insert the

conductor.

3. Return the

lever.

WIDE:

Select this to play wide DVDs in the full-screen mode.

LB:

Select this to play wide DVDs in the letter box mode (with black strips at the top and bottom).

PS:

Select this to play wide DVDs in the pan & scan mode (with the sides of the picture cut off).
Discs for which pan & scan is not specified are played in the letter box mode.

• Choose settings according to the TV to be connected.
• Set the WIDE/LB/PS switch on the ADV-S301’s rear panel to select the

aspect ratio of the TV.

Connecting a TV

• When making connections, also refer to the operating instructions of the TV or monitor.

VIDEO

WIDE/LB/PS

Setting the aspect ratio of your TV (DVD function only)

• If your TV is of the conventional size (4:3), select “LB” or “PS”. If you have a wide size TV (16:9),

select “WIDE”.

White

Black
