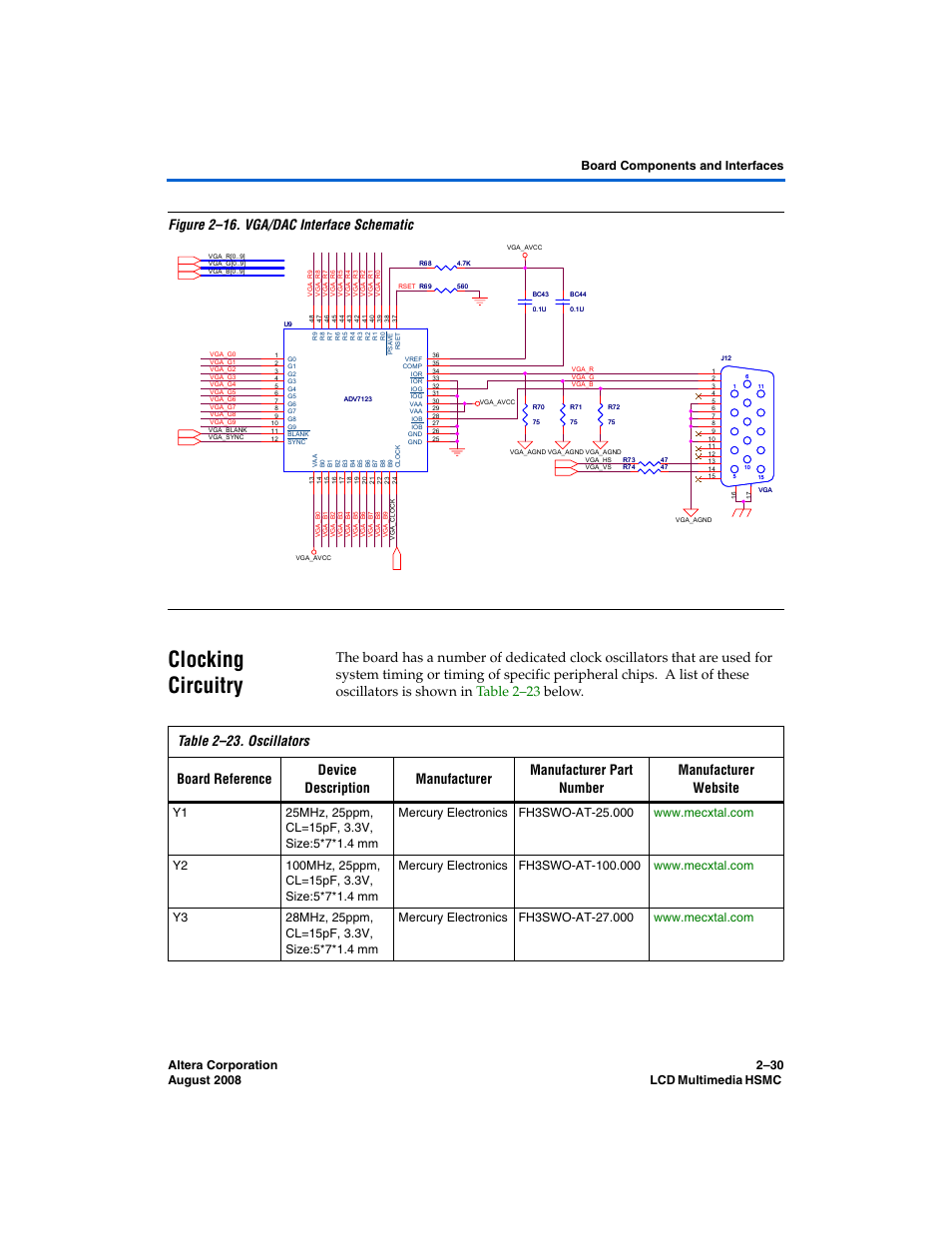

Clocking circuitry, Clocking circuitry –30, Figure 2–16. vga/dac interface schematic – Altera LCD Multimedia HSMC User Manual
Page 38
