5-3
5.2 Installing the base module
5 Installation
5.2 Installing the base module 5200 Installing the base module 5- ][Montage Basismodul
Prerequisite:
 The head module must be installed.
 If the head module does not have an integrated power supply, a
supply voltage module must be installed to the right of the head mod-
ule.
Please note:
 For mechanical reasons it is not possible to mix base modules with
screw terminals and base modules with cage clamp terminals.
 All contacts should be protected from contamination.
 The mechanics of the base modules are designed for 50 plug in/out
cycles.
Procedure:
 We recommend that you wire up the base modules before inserting
the electronic modules.
 Slot the groove on the base module on to the mounting rail from be-
low [1].
 Push the base module back [2] until you hear it lock into position.
 On the mounting rail, slide the base module to the left until you hear
the two lateral mounting hooks on the adjacent module lock into po-
sition [3].

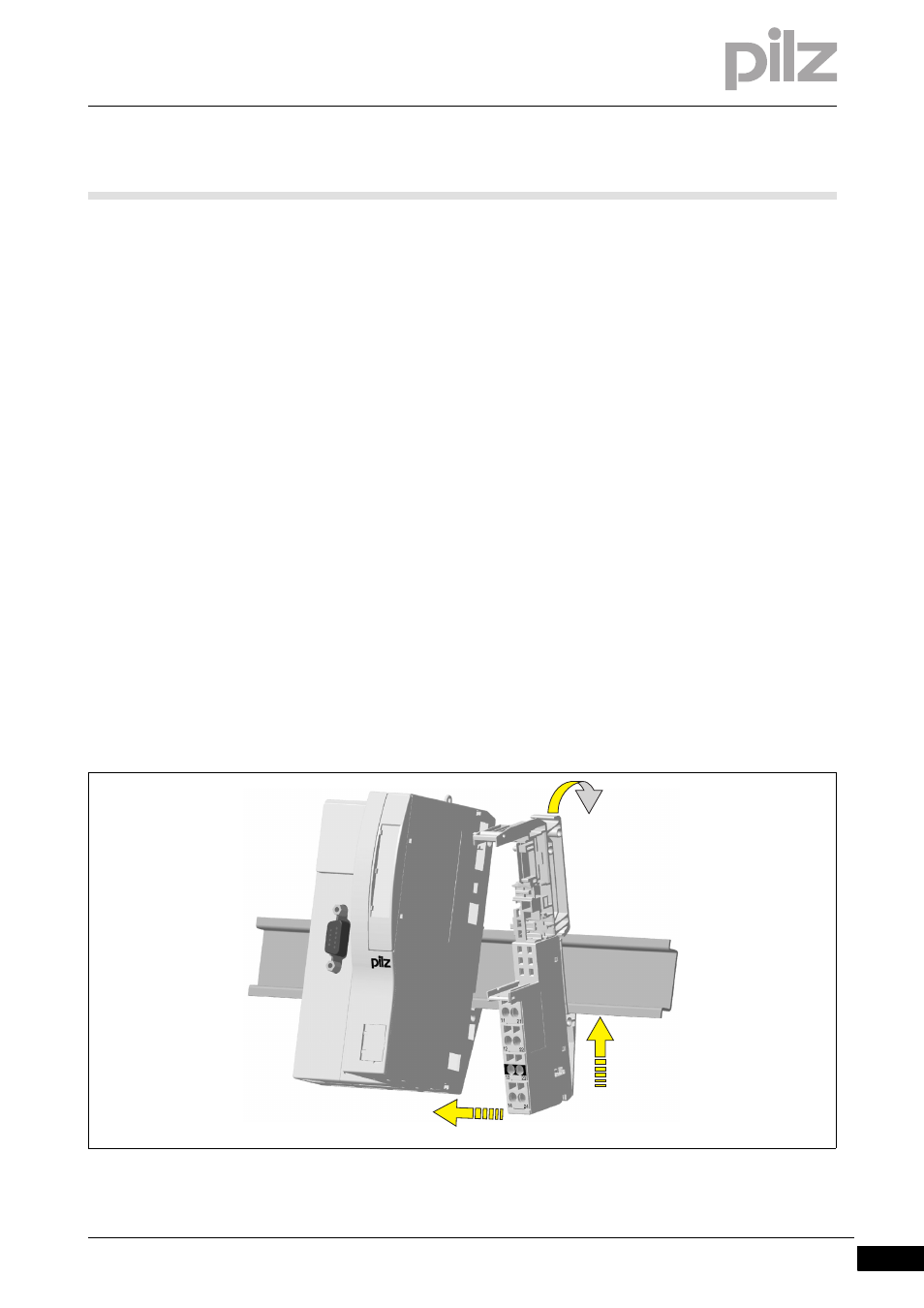

Schematic representation:
[2]
[1]
[3]
