Wiring, General wiring guidelines, Mechanical connection of the base modules – Pilz PSSu E S ABS SSI User Manual

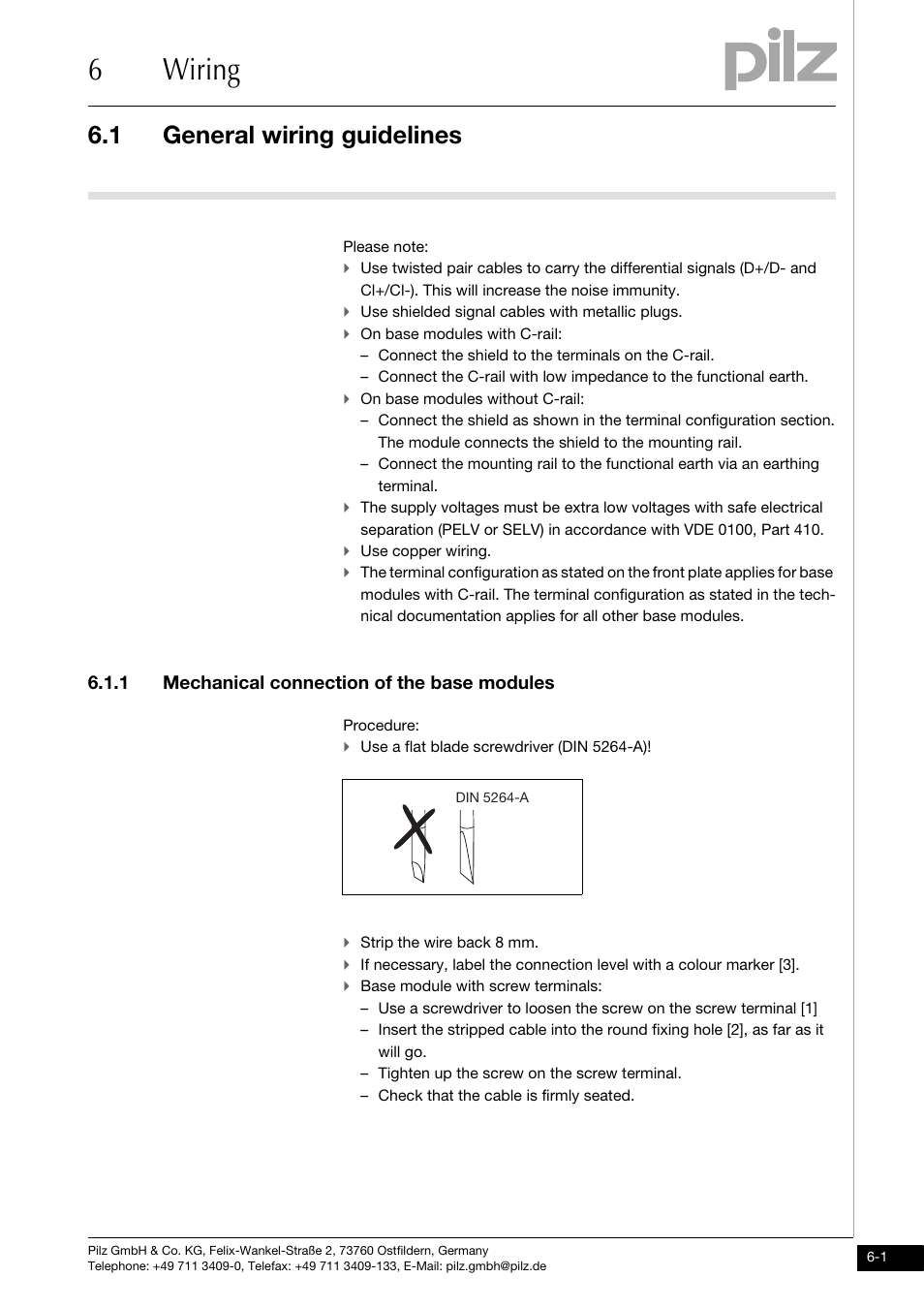

Page 29: 6wiring, 1 general wiring guidelines, 1 mechanical connection of the base modules
