Wiring
Operating Manual PSSu K S 8DI 8DO 0.5
22065­EN­07 23
6.2 Terminal configuration
Terminal configuration

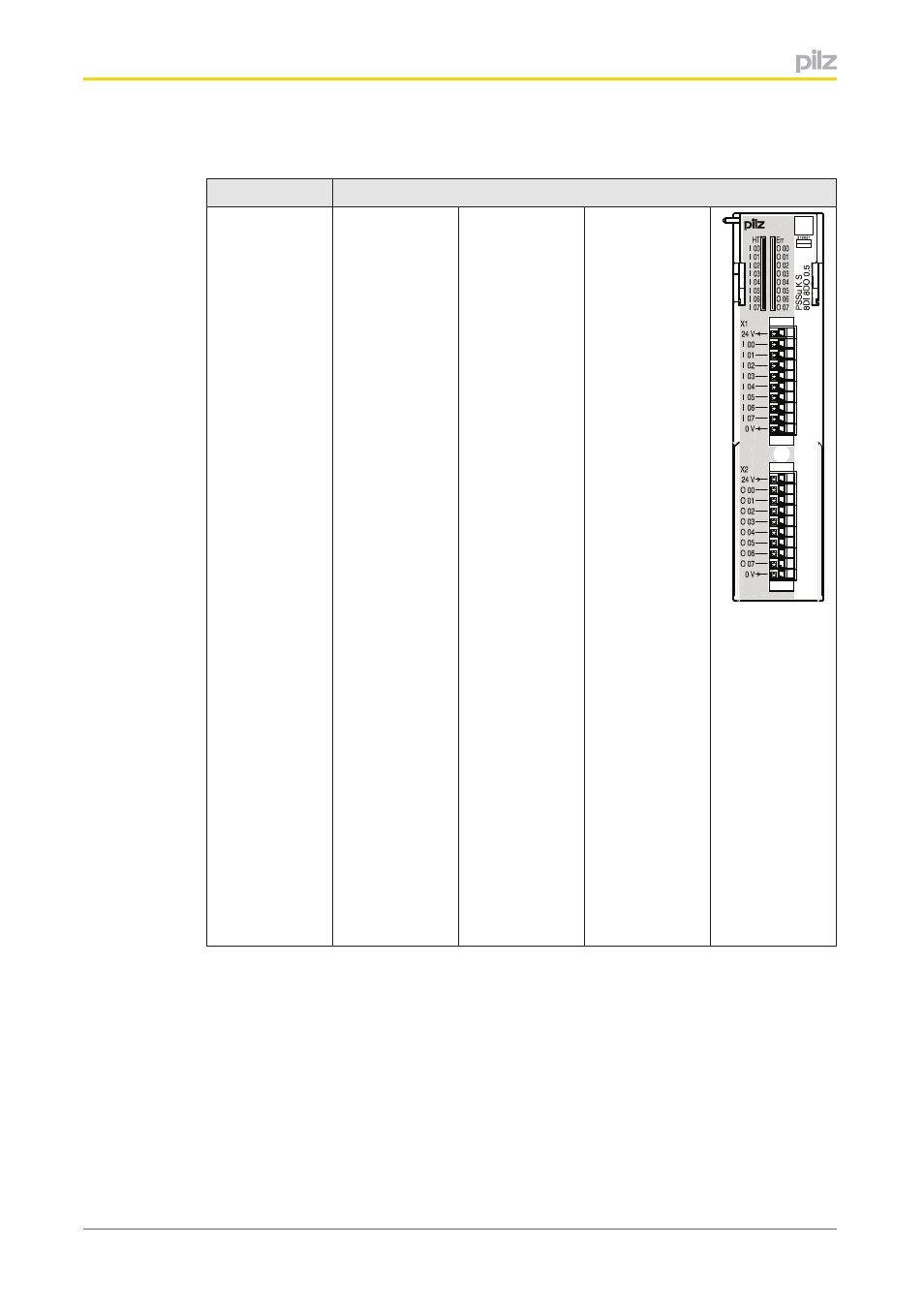

Connector with
spring­loaded
terminals (1­
row/10­pin):
PSSu A Con
1/10 C 1. Terminals
X1:
24 V: +24 V
(periphery sup­
ply)
I 00: Input 0
I 01: Input 1
I 02: Input 2
I 03: Input 3
I 04: Input 4
I 05: Input 5
I 06: Input 6
I 07: Input 7
0 V: 0 V (peri­
phery supply)
X2:
24 V: +24 V (ex­
ternal periphery
supply)
O 00: Output 0
O 01: Output 1
O 02: Output 2
O 03: Output 3
O 04: Output 4
O 05: Output 5
O 06: Output 6
O 07: Output 7
0 V: 0 V (ex­
ternal periphery
supply)
