2.2 Front view
2 Overview
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
2-2
2.2 Front view 2200 Front view 2- BA_Frontansicht

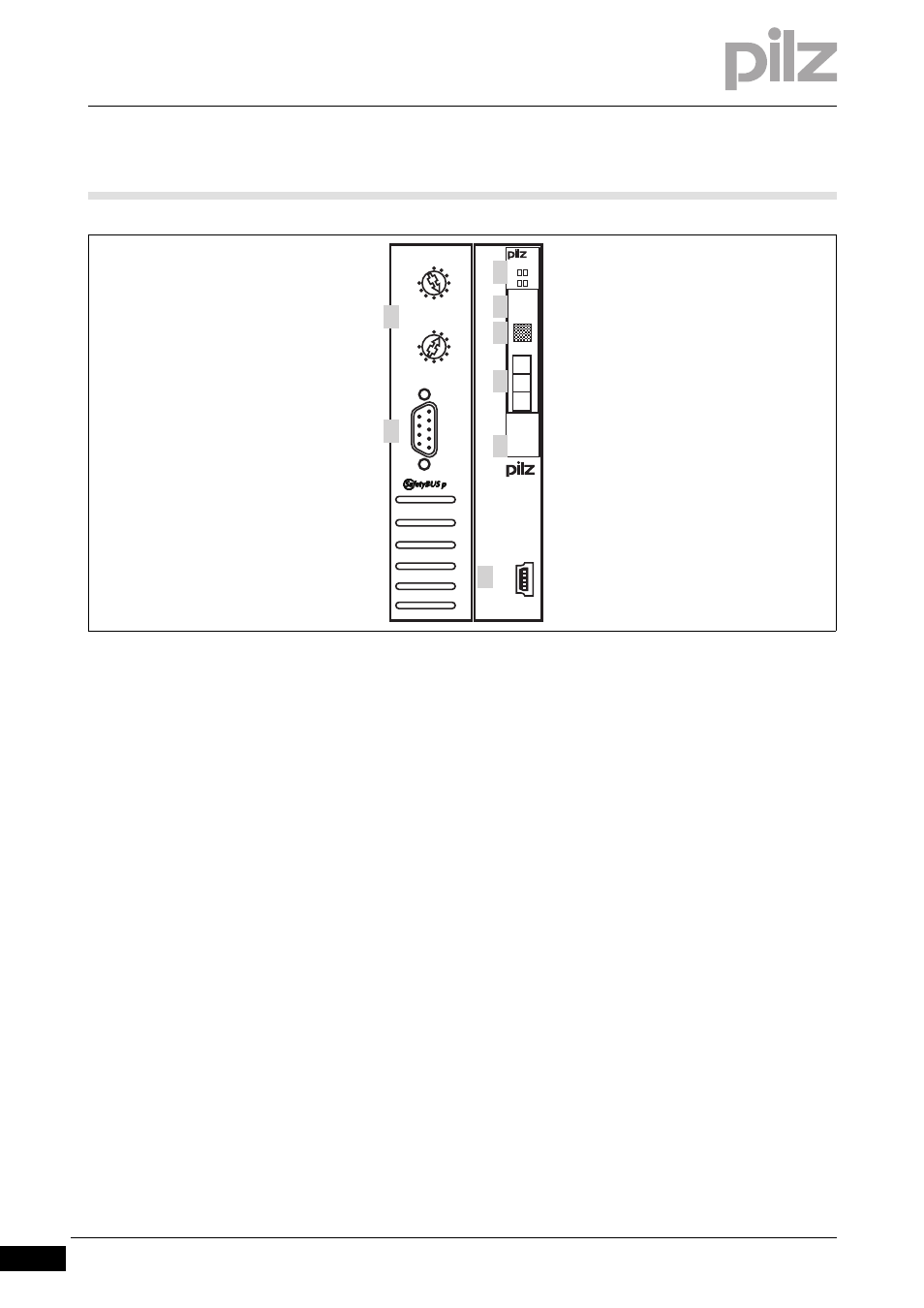

Key:
 1: Two selector switches for setting the device address
 2: SafetyBUS p interface
 3: LEDs for system diagnostics and SafetyBUS p diagnostics
 4: Labelling strip with:
– Order number
– Serial number
– Hardware version number
– Firmware version number on delivery
 5: Field for 2D code
 6: Labelling strip with interface configuration of the USB port
 7: Description of head module
 8: USB port (Mini-B)
