6 commissioning, 1 general wiring guidelines, 2 connecting the supply voltage – Pilz PNOZ m ES EtherCAT User Manual

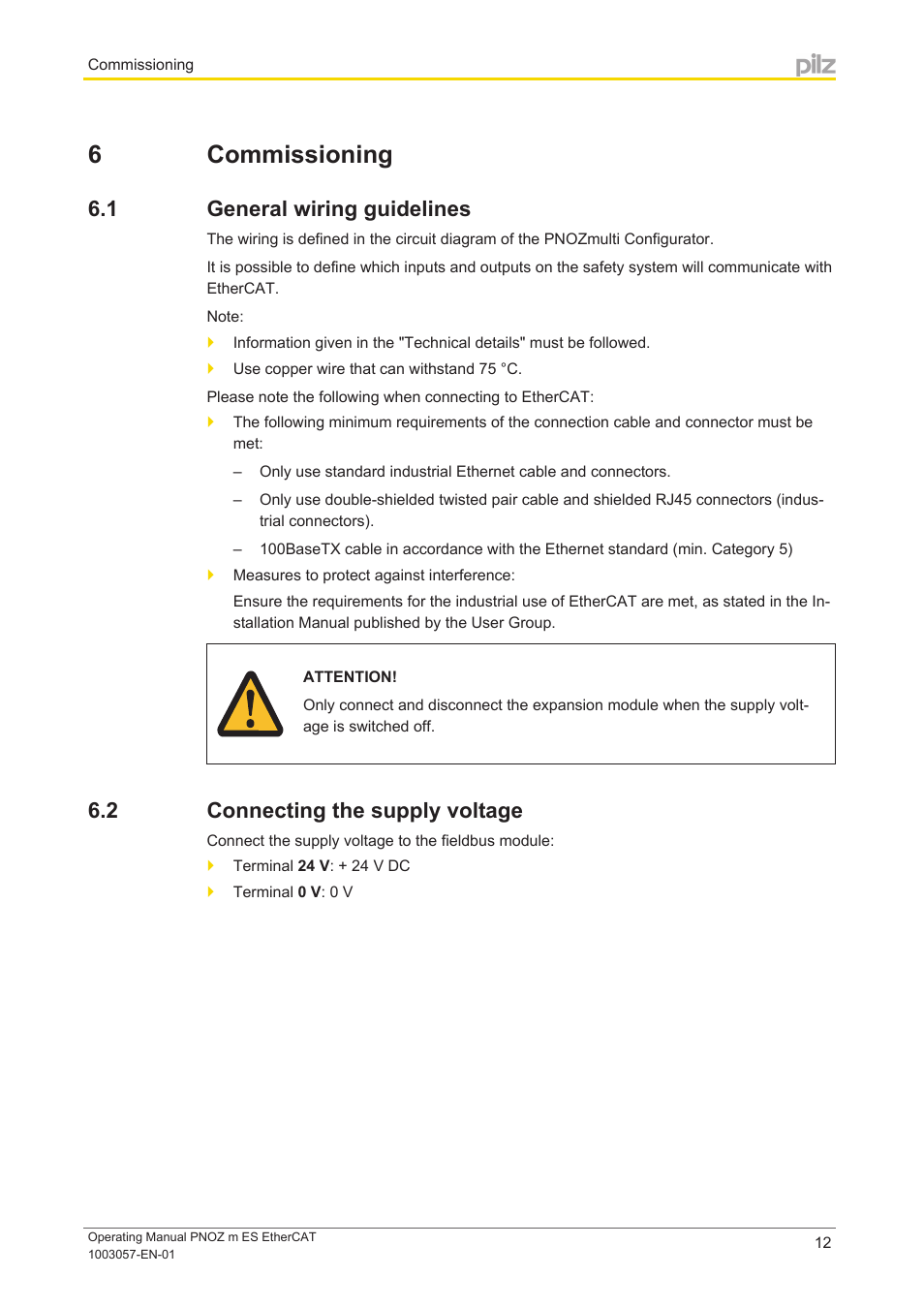

Page 12: Section 6, Commissioning, General wiring guidelines, Connecting the supply voltage
