Function description
Operating Manual PNOZ mmc11p
1002697-EN-01
11
Assigning the inputs/outputs in the PNOZmulti Configurator
to the EtherCAT inputs/outputs
Virtual inputs on PNOZmulti Configurator I0 ... I7 I8 ... I15 I16 ... I23
Input data EtherCAT Byte 0: Bits 0 … 7 Byte 1: Bits 0 … 7 Byte 2: Bits 0 … 7
Virtual outputs on PNOZmulti Configurator O0 ... O7 O8 ... O15 O16 ... O23
Output data EtherCAT Byte 0: Bits 0 … 7 Byte 1: Bits 0 … 7 Byte 2: Bits 0 … 7
The number of virtual inputs and outputs can be extended to 128 (see document "Commu-
nication Interfaces" in the section entitled "Fieldbus modules")

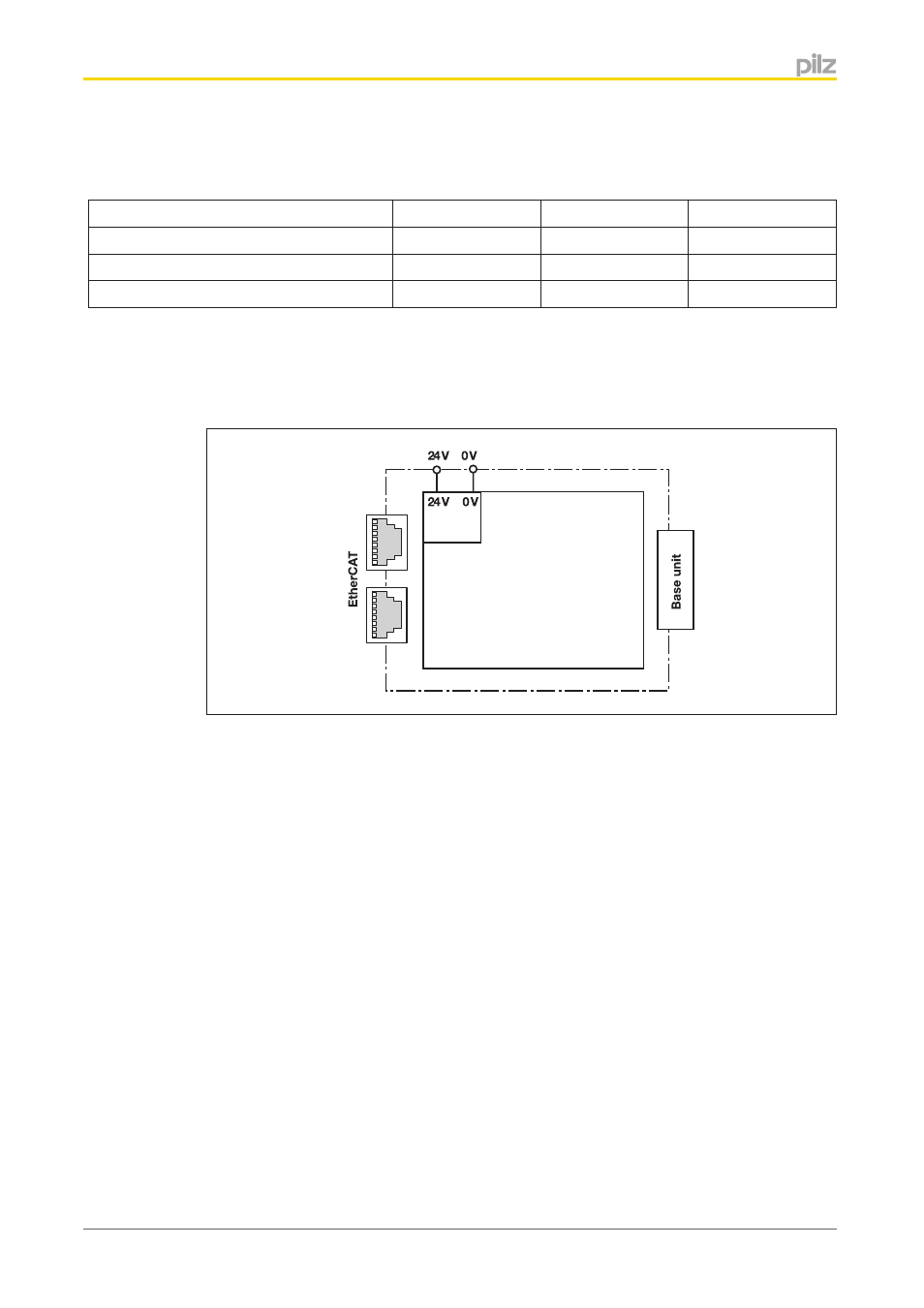

Block diagram
4.3
4.4
