Ultrasonic Generator/Power Supply LS User’s Manual Section 4 – Standard Connections
Page 33 Page 3
iQ Series ,
Ultrasonic Generator/Power Supply LS User’s Manual Section 4 – Standard Connections
Dukane Manual Part No. 403-574-01

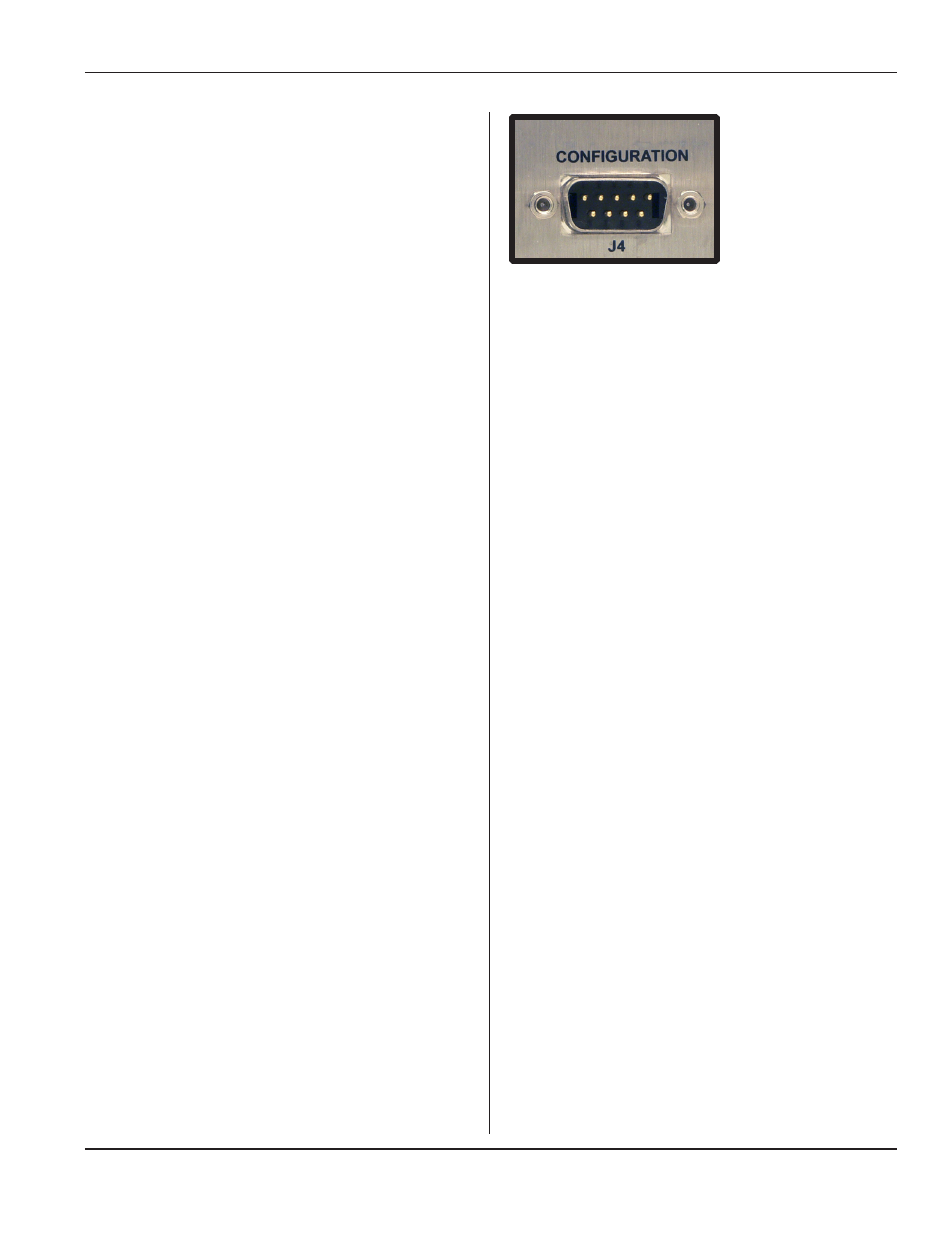

Figure 4 - 9 Configuration Port Connector
Configuration Port Connector
The configuration port connector is a DB-9M (standard D-
subminiature nine circuit, male) typically used for RS-232
serial communications. This serial port (DTE) connects to
a serial port (DCE) on a computer via a standard 9-pin
serial cable. If the computer does not have a serial port,
you may use a USB-to-serial conversion cable.
This port is used for field updates to the generator
firmware, without removing the enclosure cover. This
port can also be used with a software application running
on a Windows PC to modify the factory default system
settings and hardware configurations. Contact your local
sales representative for software availability information
and access to documentation that will allow you to make
use of the configuration port features.
