foil shield to their ground points. Connect only one end of the shield to
the module.

2. At each end of the cable, strip some casing to expose the individual

wires.

3. Trim the exposed signal wires to 2 in. lengths. Strip about 3/16 in.

(about 5 mm) of insulation away to expose the end of each wire.

4. At one end of the cable, twist the drain wire and foil shield together,

bend them away from the cable, and apply shrink wrap.

5. At the other end of the cable, cut the drain wire and foil shield back to

the cable and apply shrink wrap.

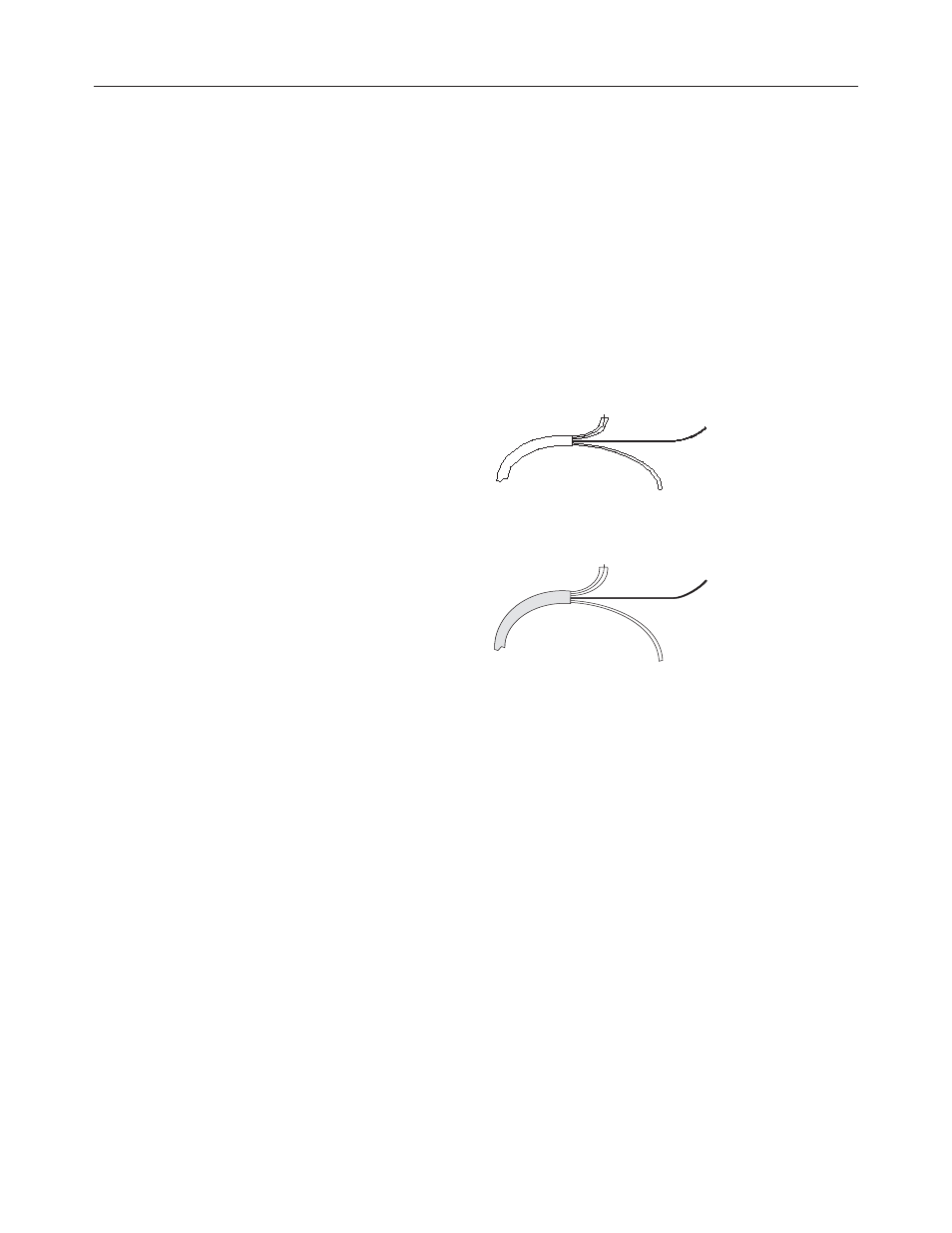

Insulation

Clear Wire

Black Wire

Foil Shield and Drain Wire

6. Connect the wires to the terminal block and field device as shown in

the following figures and table. The recommended maximum torque is
4.5 in-lb (0.565 Nm) for all terminal screws.
