OmniLink 5000 Feed Manual December 13, 1999
3.2
Manual Rev 2.3

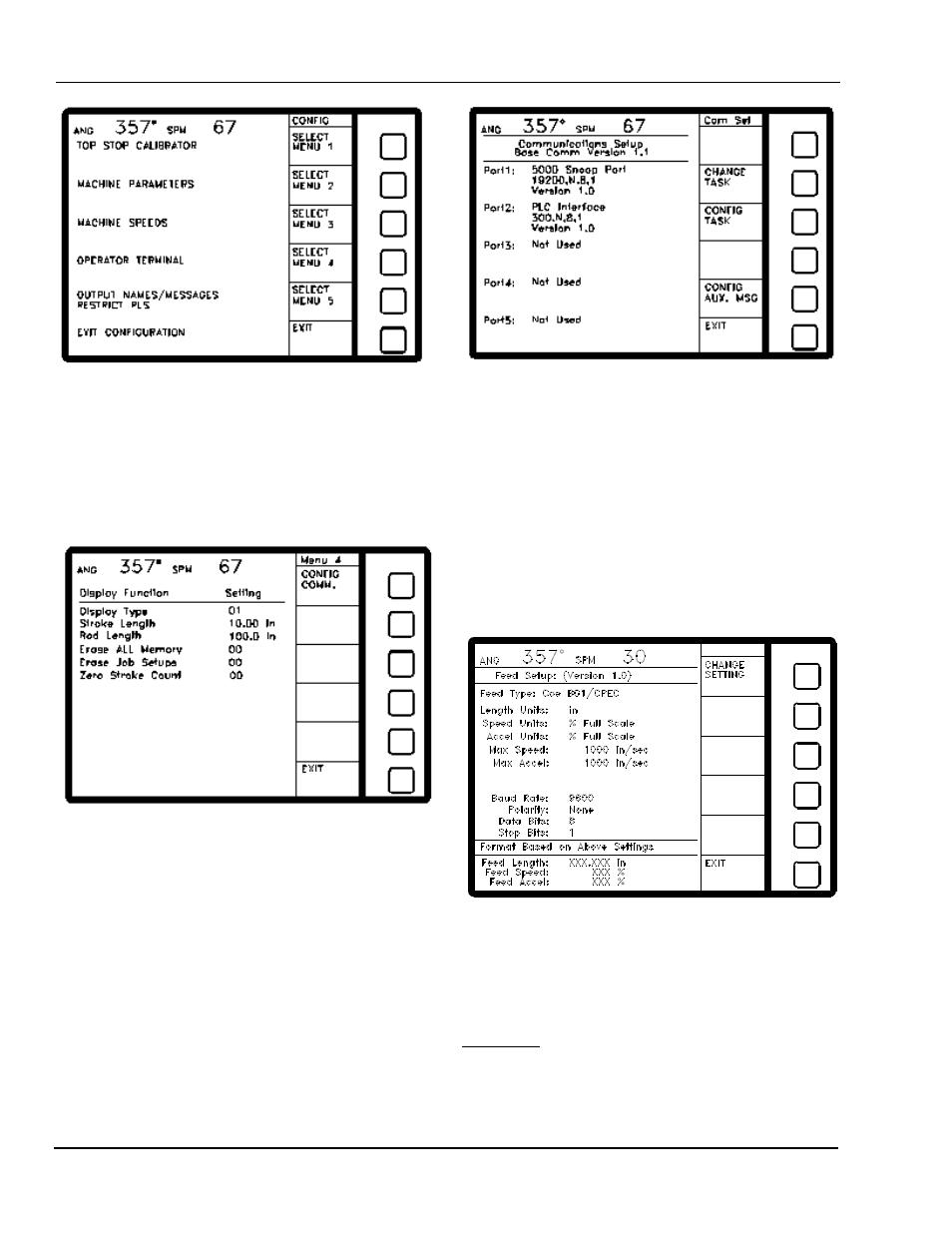

Figure 3.1: OmniLink 5000 Main
Configuration Screen
‚ Push the softkey for “OPERATOR
TERMINAL”. A screen like Figure 3.2 should
appear.
Figure 3.2: OmniLink 5000 Operator Terminal
Config. Screen
‚ Push the “CONFIG COMM.” softkey to display
the communications setup screen which should
look similar to Figure 3.3 (the port
configurations may vary depending on how the
particular machine is set up and what options
have been installed).
Figure 3.3: OmniLink 5000 Communications
Config. Screen
‚ Use the up and down arrow keys to highlight
“Port 4" and hit the “CHANGE TASK” softkey
until the description for port 4 reads “Feed - Not
Configured” or has the name of a supported
feed.
‚ Hit the “CONFIG TASK” softkey and a screen
similar to Figure 3.4 should appear.
Figure 3.4: Example Feed Configuration Screen
There are several settings to configure in this
screen:
Feed Type - Using the arrow keys, position the
highlight cursor on this field and hit the “CHANGE
SETTING” softkey until the required feed type
appears.
