HITEC X1 MF: AC/DC, 80-Watt, Multi-Function, Charger User Manual

Page 29

SELECT

X1 MF

The X1 MF can test brushless motor RPM if you have a motor equipped
with a sensor port. To check motor RPM, please connect as follows:

1. Connect the motor to the ESC, turn off ESC and connect main battery.
2. Connect power to the X1 MF.
3. Insert the ESC radio lead into the SERVO/ESC port on the X1 MF.
4. Connect the sensor wire between the X1 MF and the motor.
5. Enter the Motor RPM Tester Program and set the initial pulse width to
around 1480. You may have to adjust the pulse width up or down to
find neutral (stick center).
6. Turn on the ESC and adjust the dial to increase or decrease motor
RPM.

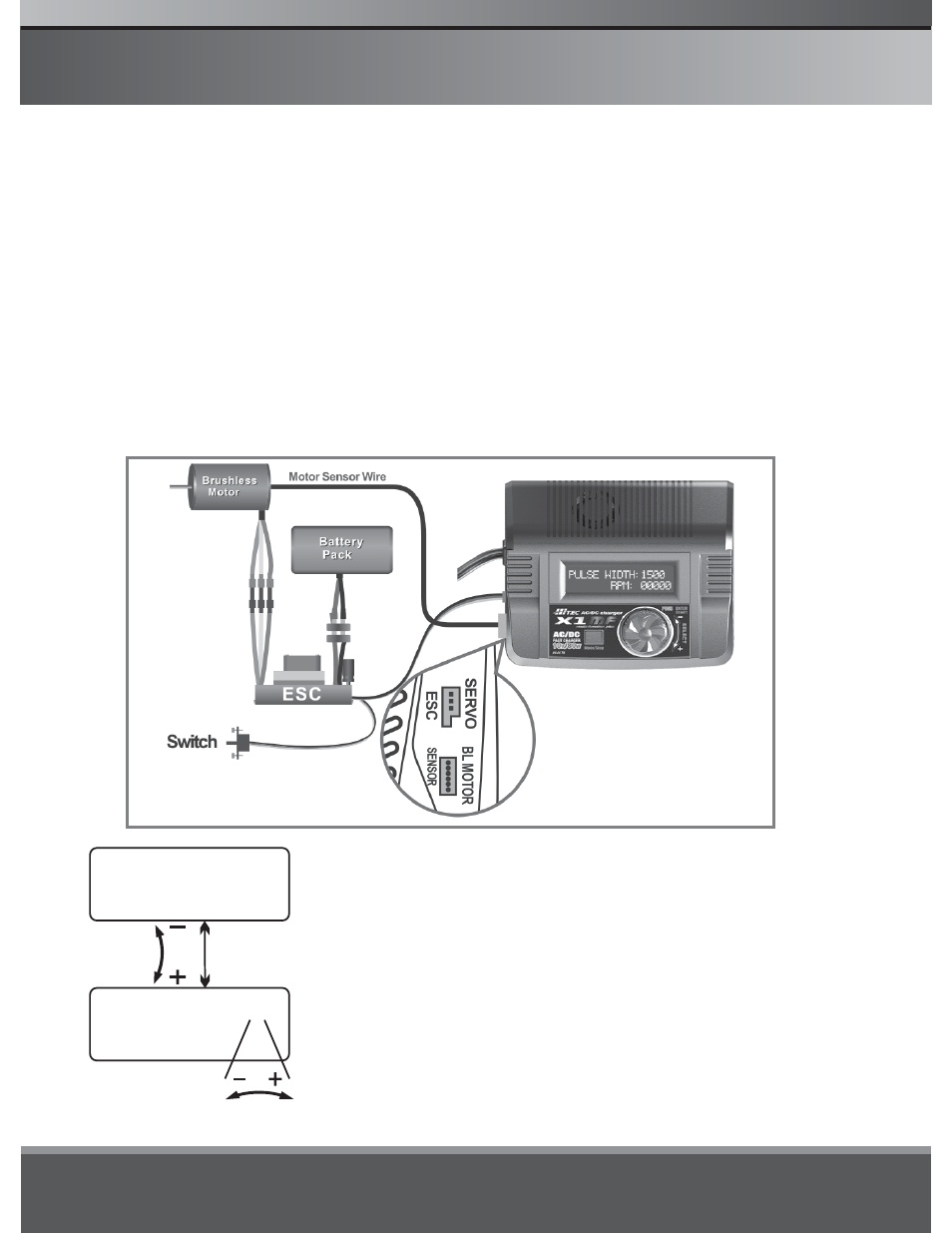

This diagram shows the
correct way to connect
your motor and ESC to the
X1 MF for RPM testing

PROGRAM SELECT
MOTOR RPM TESTER

PULSE WIDTH:1480
RPM: 00000

Scroll to the Motor RPM Tester program and press
the dial once.

Set the intial pulse width to around 1480, this is the
common value for throttle channel center/neutral. If
you find the ESC is not initializing properly, lower or
raise the value slightly and re-initialize the ESC.
