Page 21
20
X1 MF
Battery
type
- +
Elapsed
time
Charged
capacity
Battery
type
Charge
current
Battery
voltage
> 3 seconds
SELECT
Mode
Stop
Battery
type
> 3 seconds
Mode
Stop
Press
Dial
Press
Dial

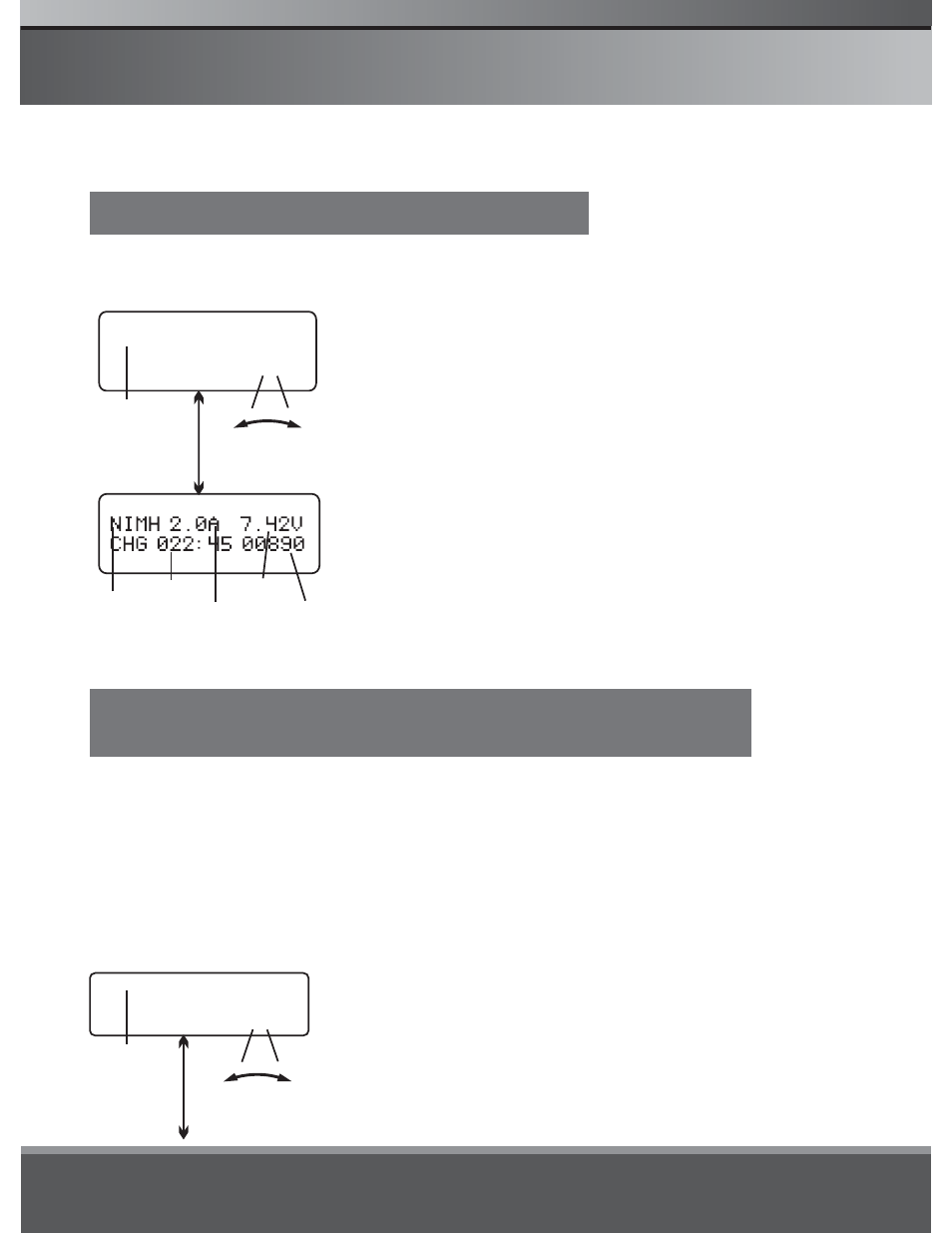

These programs are for charging or discharging Nickel-Metal Hydride
(NiMH) or Nickel-Cadmium (NiCd) batteries.
The standard charge mode for NiMH and NiCd batteries will use the
charge current set by the user.
Pressing the dial once will allow you to set the
charging amperage for the charge process.
Refer to manufacturer specifications for
maximum charge rates for your Nickel-based
battery packs.
Pressing the dial once will allow you to set the
charging amperage for the charge process.
Refer to manufacturer specifications for
maximum charge rates for your Nickel-based
battery packs.
This screen displays the charge status in
real-time. Pressing the Mode/Stop button
once will end the process and return you to
the setup screen.
In this mode, the charger automatically detects the connected NiMH or
NiCd battery and determines the proper full charge and cutoff thresh-
olds. Setting the upper charge current limit for safe levels based on your
battery specifications will ensure safe charging of your specific battery.
If you are unsure of the maximum allowable charge rates, set the
charger to a maximum of 1C (battery mAh/1000, i.e., 2500mAh = 2.5A)
NiMH CHARGE
CURRENT
2.0A
NiMH Auto CHARGE
CURRENT
2.0A
- +
SELECT
