HITEC X1 MF: AC/DC, 80-Watt, Multi-Function, Charger User Manual

Page 17

Number
of cells

Battery
voltage

Charging
time

Charged
capacity

Charging
current

> 3 seconds

SELECT

Mode
Stop

Press
Dial

X1 MF

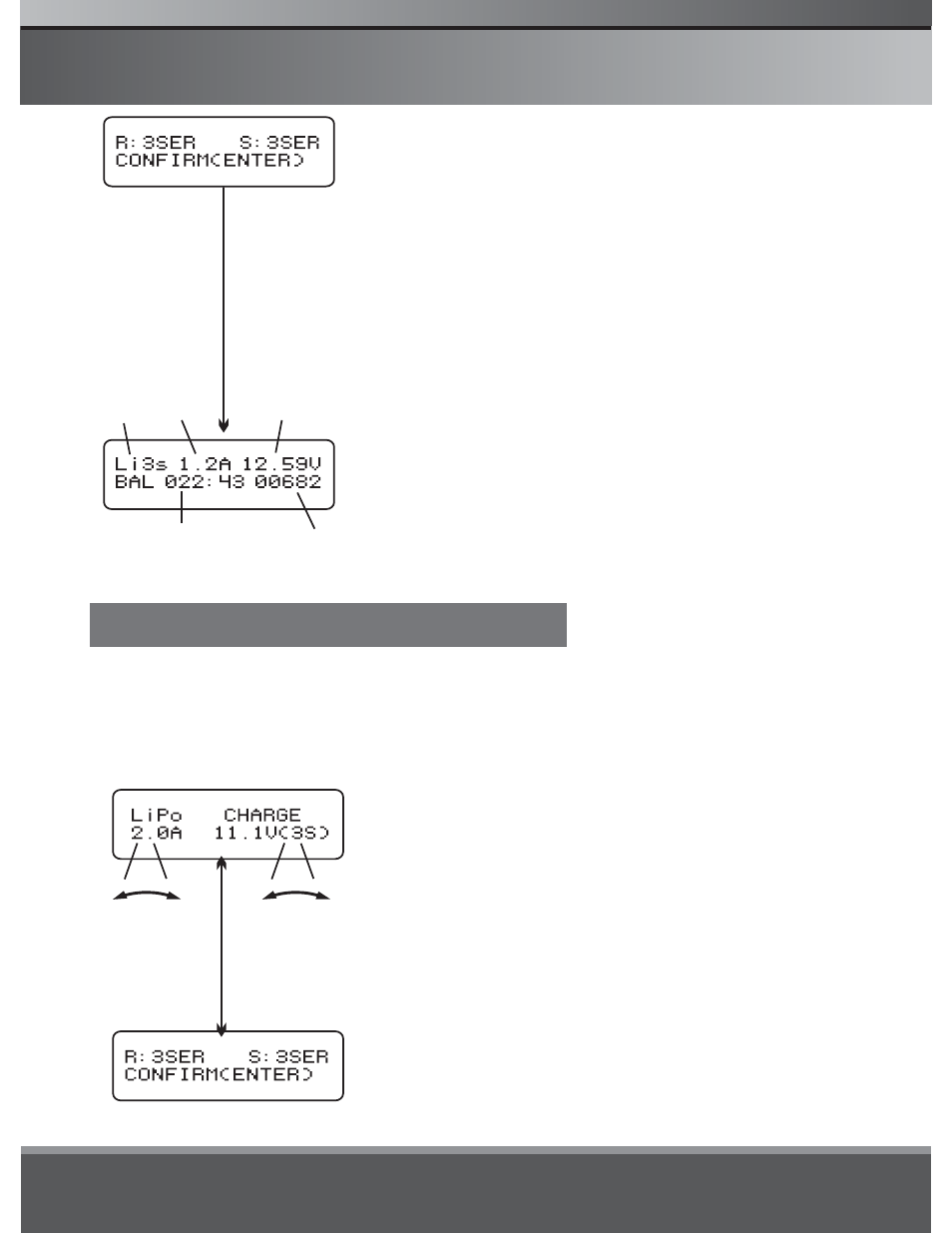

This screen displays the number of cells
detected by the charger (R), and the number
of cells you selected in the previous screen
(S). If these numbers mismatch, go back to
the previous screen and verify your settings. If
your settings are correct, there may be a
problem with one or more cells in your pack.
Verify the pack total voltage (from the main
leads) is within normal expected range. If it is,
you may have a problem with one or more of
the balancing leads coming from the pack.

This screen displays the number of cells
detected by the charger (R), and the number
of cells you selected in the previous screen
(S). If these numbers mismatch, go back to

This screen displays the real-time status of the
charge process. Pressing the Mode/Stop
button once will end the charge process and
return you to the setup screen.

“Charge” Mode is for charging Lithium batteries without a balancing
connector present. It is highly recommended to always charge in
Balance Mode if possible. This will ensure the best performance and
longest life of your Lithium batteries.

Top Line (left to right): Selected Battery Type
and Charge Mode

Bottom Line (left to right): Charging Rate and
Pack Nominal Voltage/Cell Count

Adjust the parameters, then press and hold
the dial for 3 seconds to start the process.
