Balancing Board:
WARNING

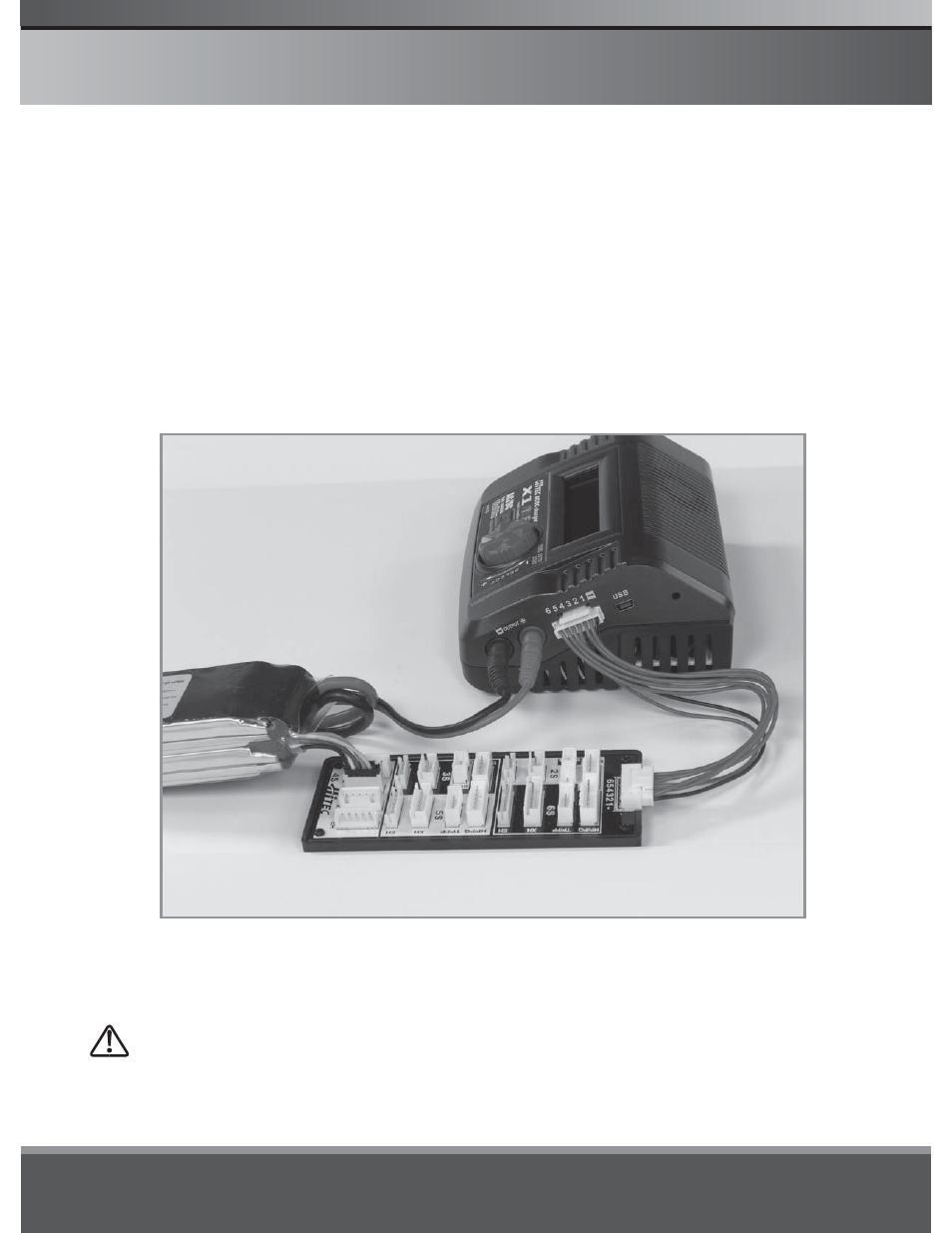

This image shows the correct way to connect your battery and the
balancing board to the X1 MF before charging in the balance charge
mode.
Failure to connect the battery and balancing board as shown in this
image will result in damage to the charger!
The balancing port lead polarity is critical! Verify that the black
wire (negative) coming from the balancing board is connected to
the negative port (-) on the charger. Failure to do so will damage
the charger!!
