23
X1 MF
-
Elapsed
time
+ - +
Charged
capacity
> 3 seconds
- + - +
SELECT SELECT
Mode
Stop
SELECT SELECT
> 3 seconds
Mode
Stop
Press
Dial
Press
Dial
Pb or Small Lead-Acid (SLA) batteries typically found in ATVs, lawn
mowers and motorcycles require their own specific charging
procedures. Pb batteries, as a rule, are unable to charge at higher rates
like Nickel or Lithium-based batteries. Pb batteries should always be
stored fully charged to avoid sulfation and cell degradation. Always
consult the manufacturer’s recommendation for proper charging and
charge rates of your Pb battery. Charge in a well ventilated area.

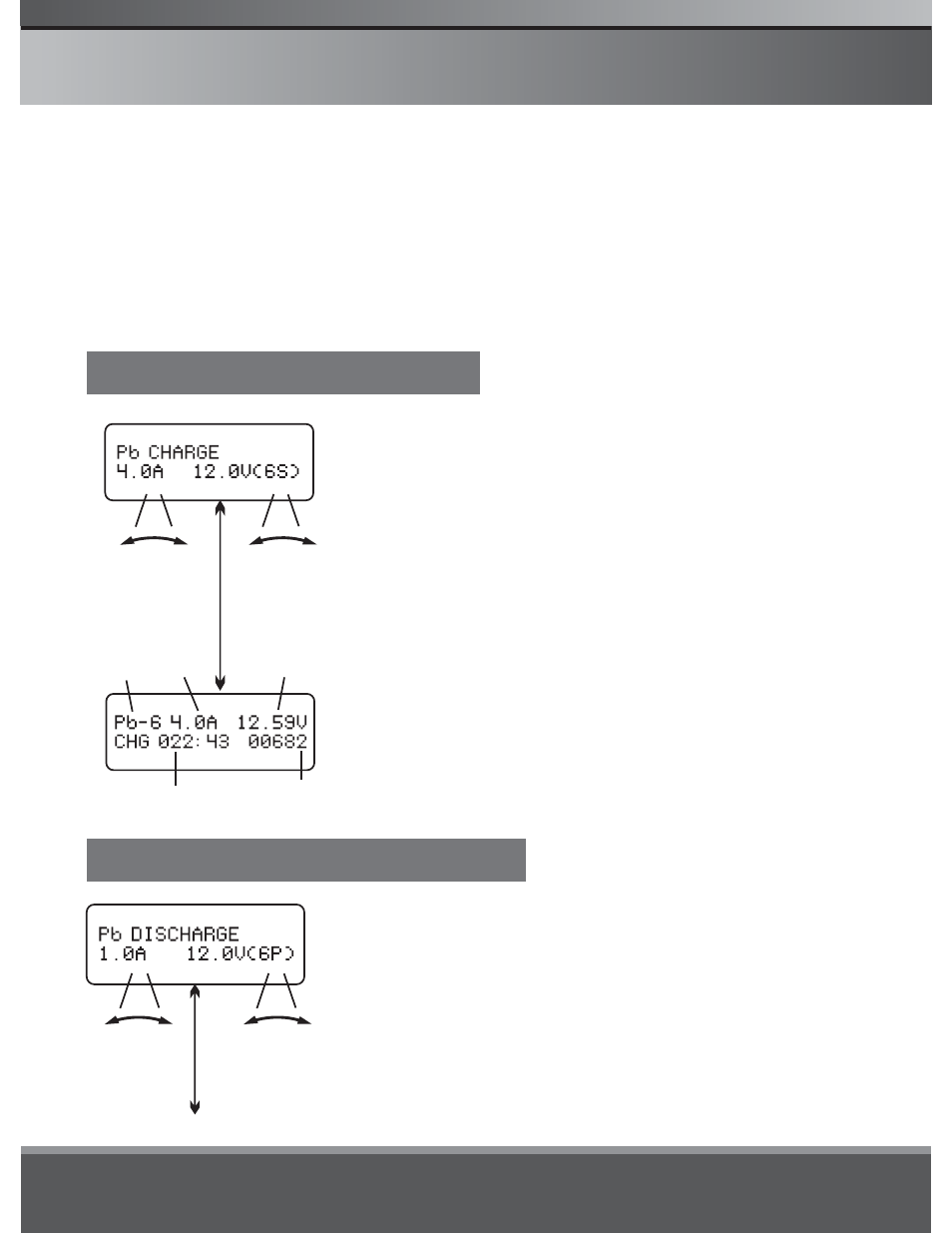

Adjust the charge current on the left by
pressing the dial and rotating. Press again to
set the value. Repeat the procedure for the
cell voltage on the right . The charge current
range is 0.1A to 10.0A. Typical Pb cell
voltage is 2.0 volts per cell. “S” indicates
series configuration, so a 12.0V Pb battery
would be 6S. A 6.0V Pb battery would be 3S.
This screen displays the real-time status of
the charging process. Pressing the
Mode/Stop button once will end the charging
process and return you to the setup screen.
Set the discharge current on the left and the
cutoff voltage on the right. The discharge
current ranges from 0.1A to 5.0A.
Press the dial for 3 seconds to start the
discharge process.
Battery
type
Battery
voltage
Discharge
current
