6.8 Termination above eaves
The Horizontal termination should be terminated 100mm
above the eaves. The vertical flue outlet should be a minimum
distance of 300mm above the eaves.
Exposed site conditions may require that the flue be secured as
described in diagram.
6.9 Termination
The termination can be changed from 87° horizontal to 45° or
vertical.
To achieve this remove the wire bird protection guard from the
87° Bend. Remove the O-ring seal from the 1M Pipe or 45°
elbow and fit the wire bird protection guard into the 1M Pipe or
45° elbow where the O-ring seal was fitted.
It is not necessary to fit a terminal guard over the appliance
main flue outlet. However should the plume management kit
terminal discharge in a place where it requires protection, a
guard should be fitted.

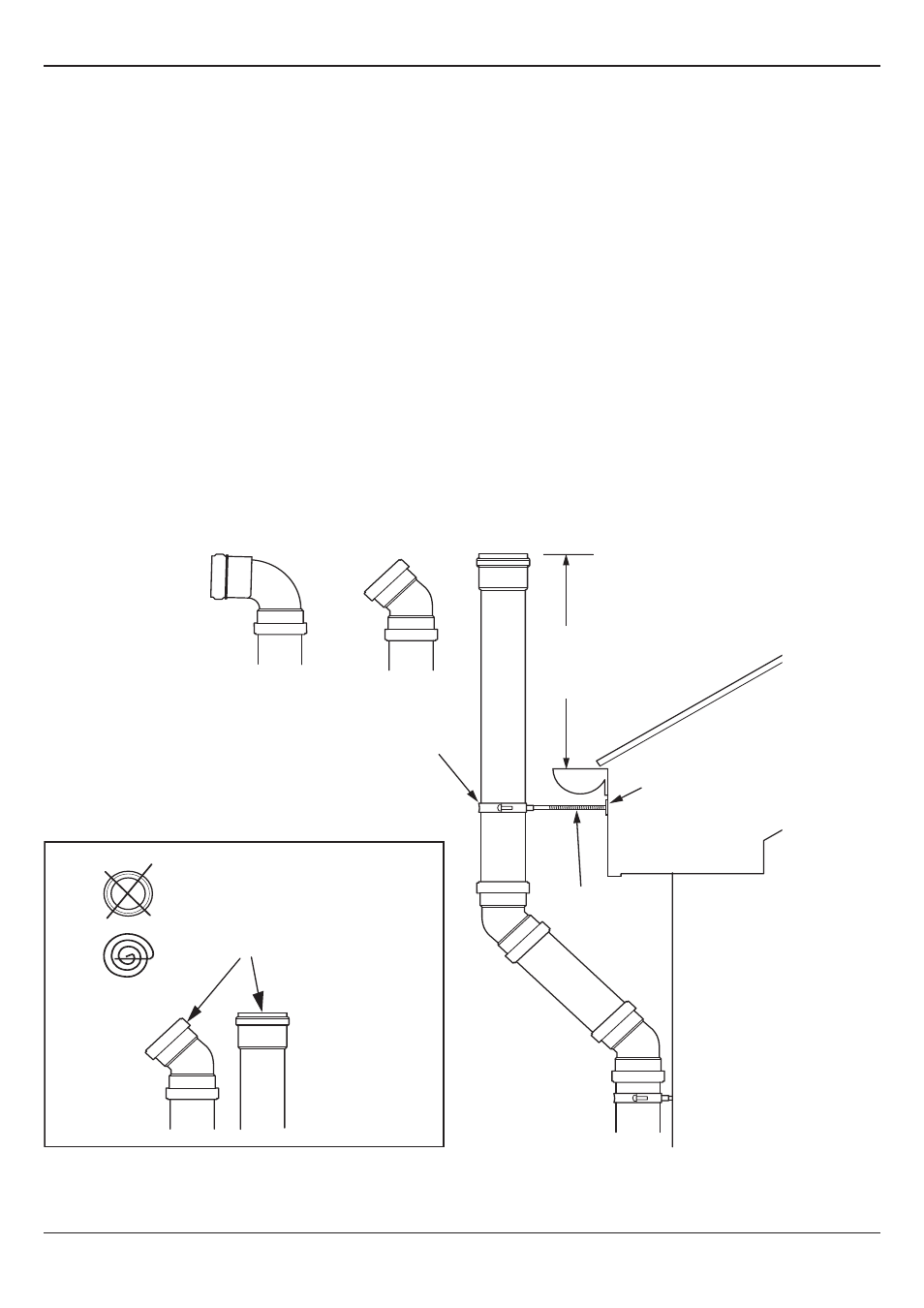

Vertical
Terminal
45°Terminal
Wall plate
Stud bolt
Pipe fixing bracket
IMPORTANT:
Remove the seal and fit the
bird protection wire from the
87° bird protection bend
Bird protection
wire
Seal
Minimum
Clearance
Vertical 300mm
90 0 or 45 0 100mm
90°Terminal
(supplied)
WE RECOMMEND THAT
TERMINALS ABOVE
EAVES ARE SECURED
6.10 fixing Instructions
These instructions are supplied to enable the flue pipe from the
Plume Management Assembly to be securely fixed either at the
eaves or on the gable end of a building when the flue terminal is
to be terminated above the roof.
The stud bolt and wall plate fixings can be obtained from kit pt.
no. A2043900 and used with the pipe fixing bracket supplied.
