Monitoring Optical Switch Modules
Optical Switch 51
Using QuickTools
For the IQS-9100/9100B Optical Switch, one of the four QuickTools utility
versions will be displayed, depending on the model of the selected
module, as shown in the figure below.
To control a specific optical switch with QuickTools:
Ensure that the switch window is selected (its title bar should be displayed
in the same color as the sidebar buttons.)

For 1 x n models, from the Output section, click the selection arrows
on both sides of the list, and then click the Check
button to select
the port. For 2 x 2 or 2 x 4 models (IQS-9100 Optical Switch only), from
the 2 x 2 Mode or Mode 2 x 4 section, select the appropriate port
configuration (For details, see Operating the Optical Switch on
page 27).

If a Continuity switch button is displayed in the QuickTools utility, click
it to activate the optical switch (For more information, see Selecting
Configurations with the 1 x n Model on page 32).

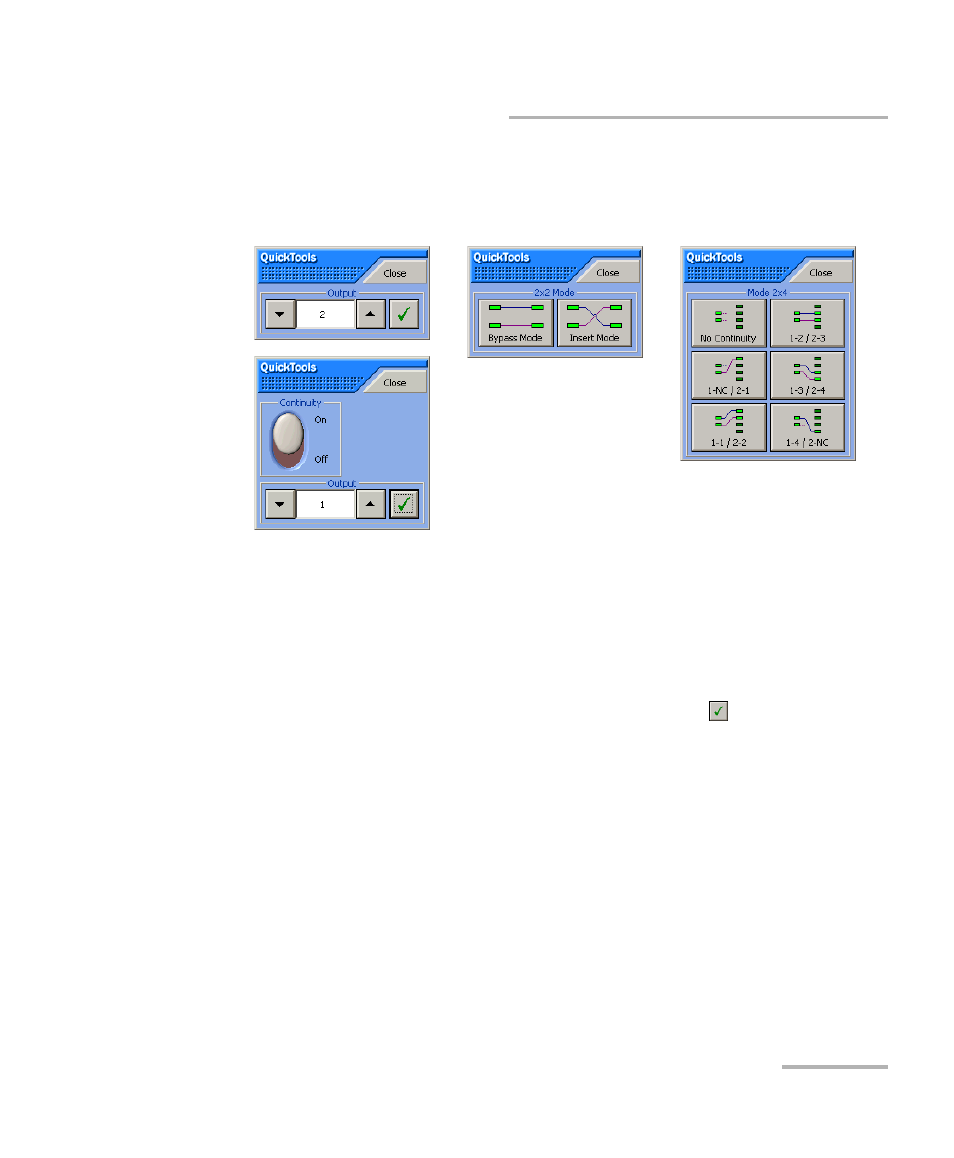

1 x 2 and 1 x n optical switch
model QuickTools utility
2 x 2 optical switch
model QuickTools utility
(IQS-9100 Optical Switch
only)
2 x 4 optical switch model
QuickTools utility
(IQS-9100 Optical Switch
only)
