Introducing the IQS-9100/9100B Optical Switch
12 IQS-9100/9100B
Typical Applications
Typical Applications
Testing with Multiple Devices
Using two optical switches, a light source and a power meter, it is possible
to perform automated qualification and production testing for multiple
devices.
To perform automated qualification and production testing for
multiple devices:

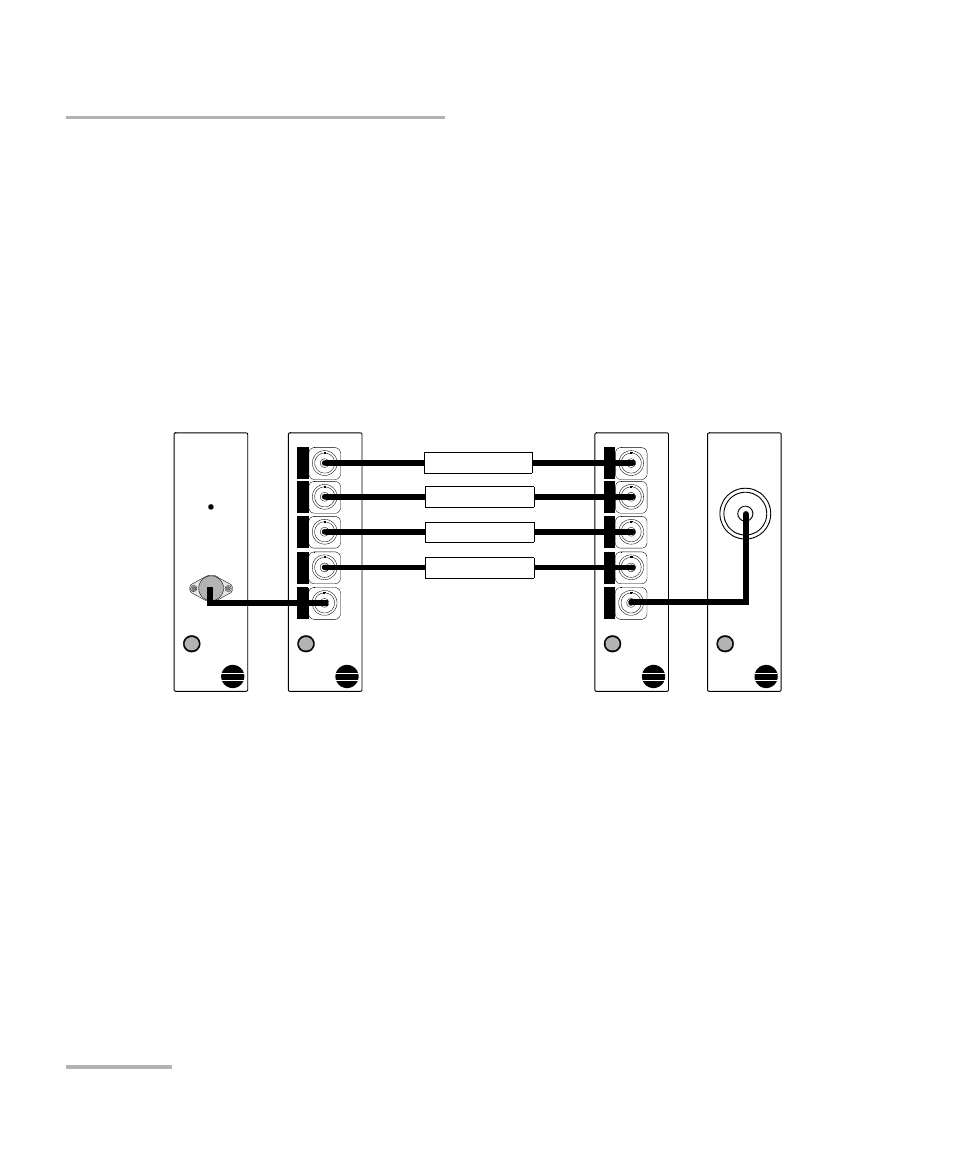

1. Connect the modules and DUTs as shown below.
2. Measure the DUTs with the power meter.
IQS-1100
Device 1
Device 2
Device 4
Device 3
Light Source
IQS-2100
ACTIVE
1 x 4
IQS-9100
Optical Switch
1 x 4
IQS-9100
Optical Switch
Power Meter
