Monitoring Optical Switch Modules
Optical Switch 49

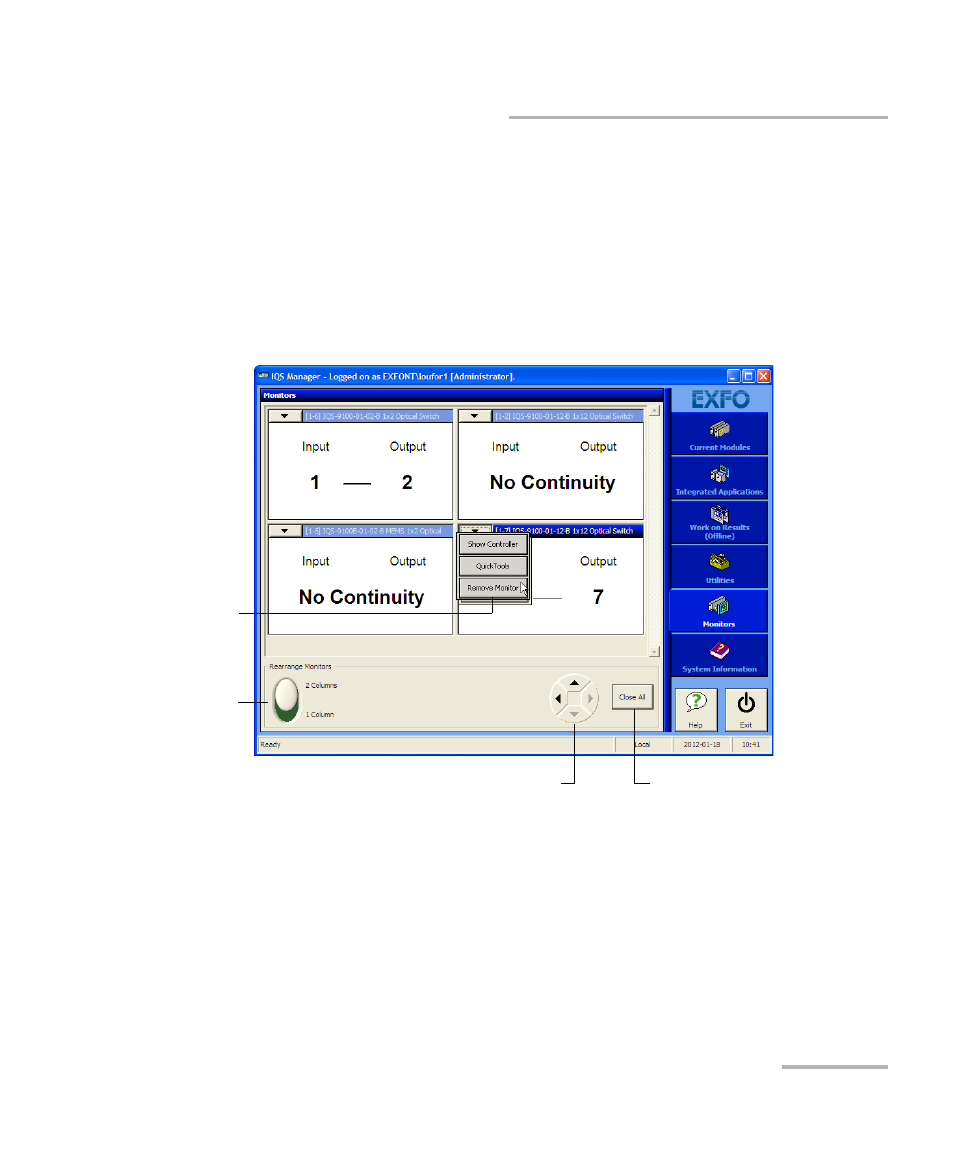

Using Monitor Windows
3. Click Start Monitor to apply your selection.
IQS Manager will display the selected monitor windows on the
Monitors function tab.
Note: To start the highlighted module’s corresponding application at the same
time, click Start App. & Monitor. The application will appear in a different
window.
Rearrange
Monitors
button
(1 or 2
columns)
To remove
the monitor
Close All
button Monitor window
arrow buttons
