Operating the Optical Switch
32 IQS-9100/9100B

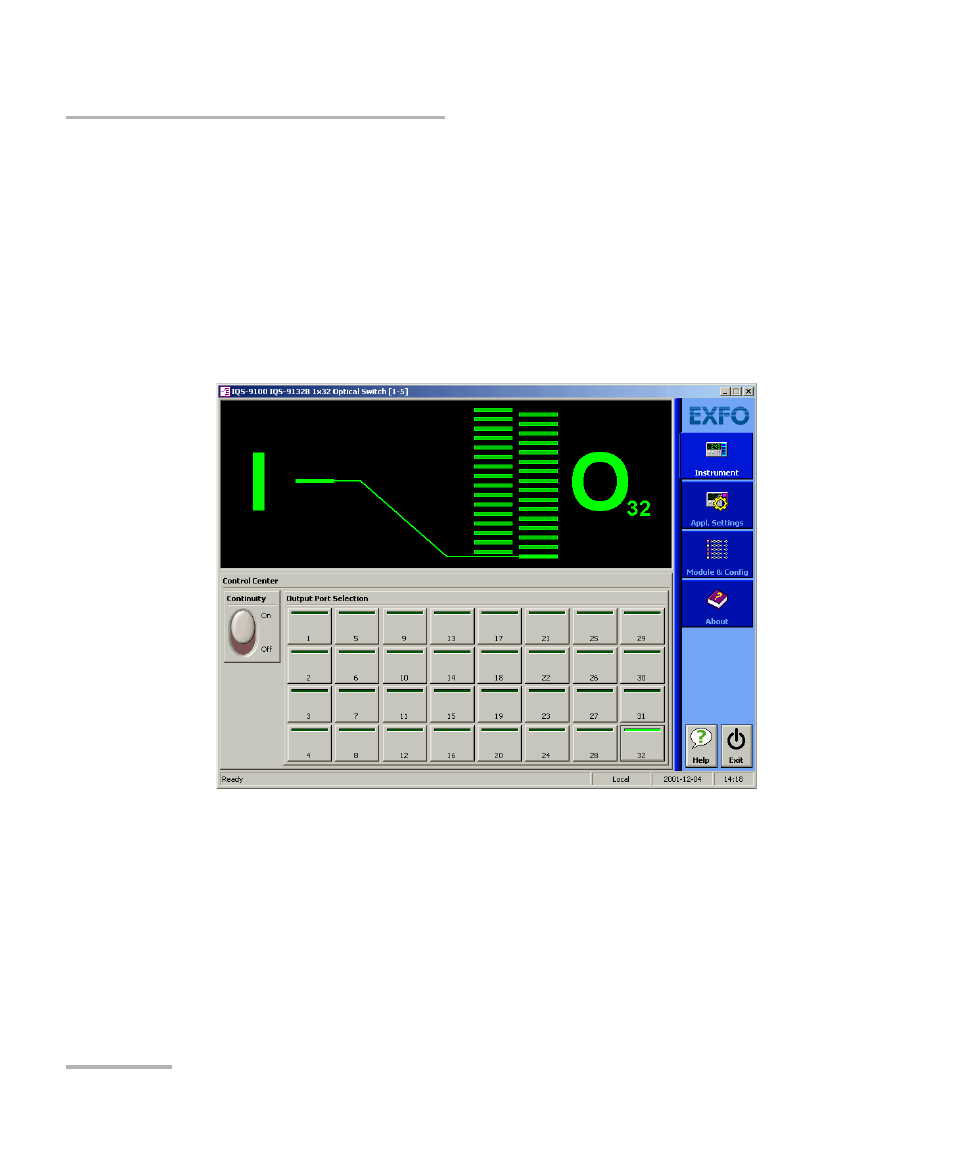

Selecting Configurations with the 1 x n Model
Selecting Configurations with the 1 x n Model
The different configurations available in the 1 x n optical switch model
allow you to access a number of switch possibilities.
To select configurations with the 1 x n model optical switch:
1. Set the Continuity switch to the On or Off position, depending on
whether or not you want the light signal to pass through the optical
switch.
Note: For the 1 x 2 model, the Continuity function is not available in the Control
Center.
2. In the Output Port Selection panel, select the port through which you
want to direct the light.
