Inspecting Fibers with a Probe
128 FTB-500
To inspect fibers with a probe:
1. Connect the probe to your unit.
For a probe of the FIP-400 series, connect it to the probe port on the
right panel of the unit.
2. From the Main Menu, tap Probe.
I
MPORTANT
For a probe of the FIP-400B series, connect it to the USB port that is
closest to the bottom, on the front panel of the unit. Otherwise, the
probe will not be detected properly.

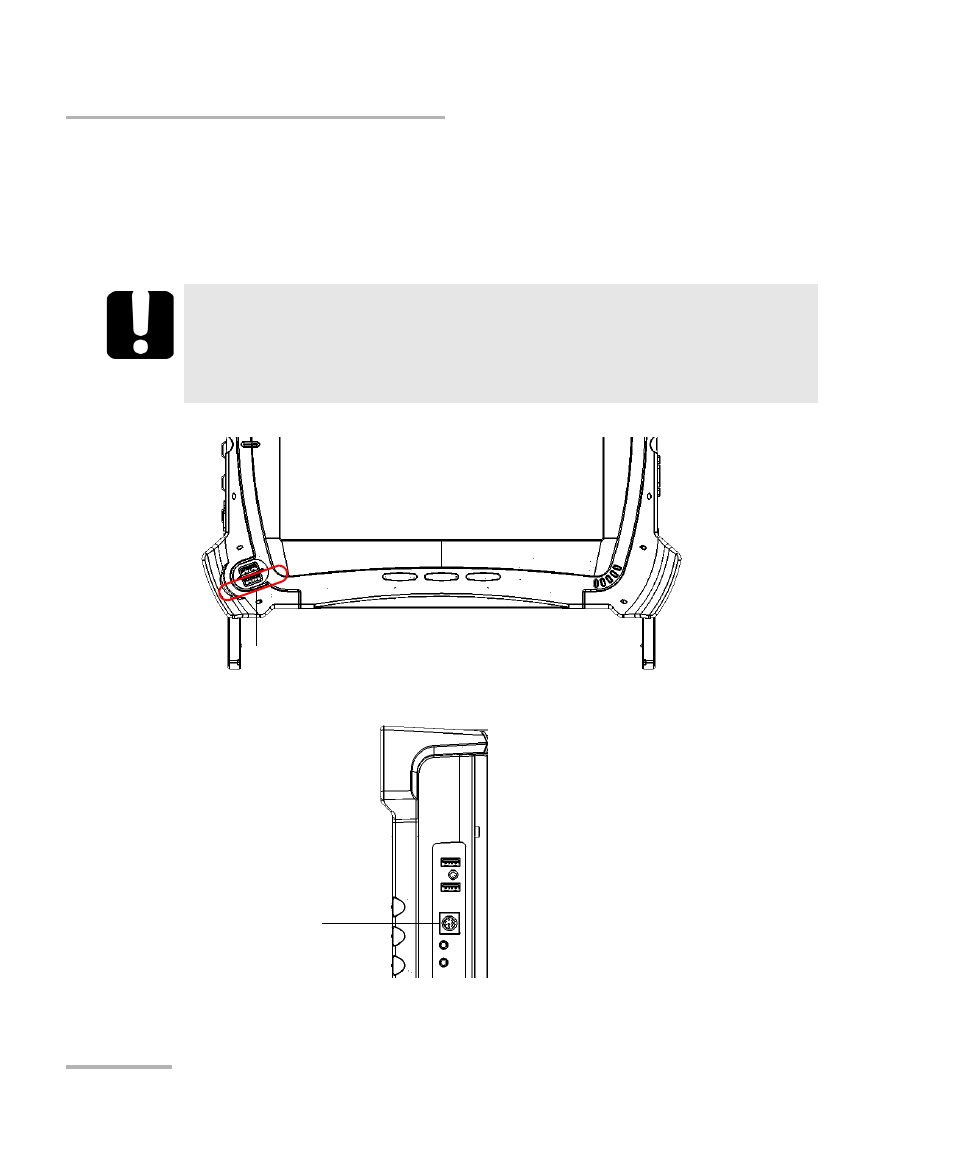

USB host port
(for FIP-400B probes)
Fiber inspection probe port
(for FIP-400 probes)
Front panel
Right panel
