Measuring Power or Loss
5. Using bulkhead adapters or the system patch panels, connect a fiber
under test to reference patchcord attached to the light source and
power meter.
6. From the Instrument View tab, use the list to select a wavelength.
Activate the source at the same wavelength.
7. Tap Add to transfer the displayed values to the Measurements list.
8. Repeat the procedure for other wavelengths.
9. Once your work is complete, tap Save.
I
MPORTANT
If you specify a name that already exists, the original file will be
overwritten and only the new file will be available.

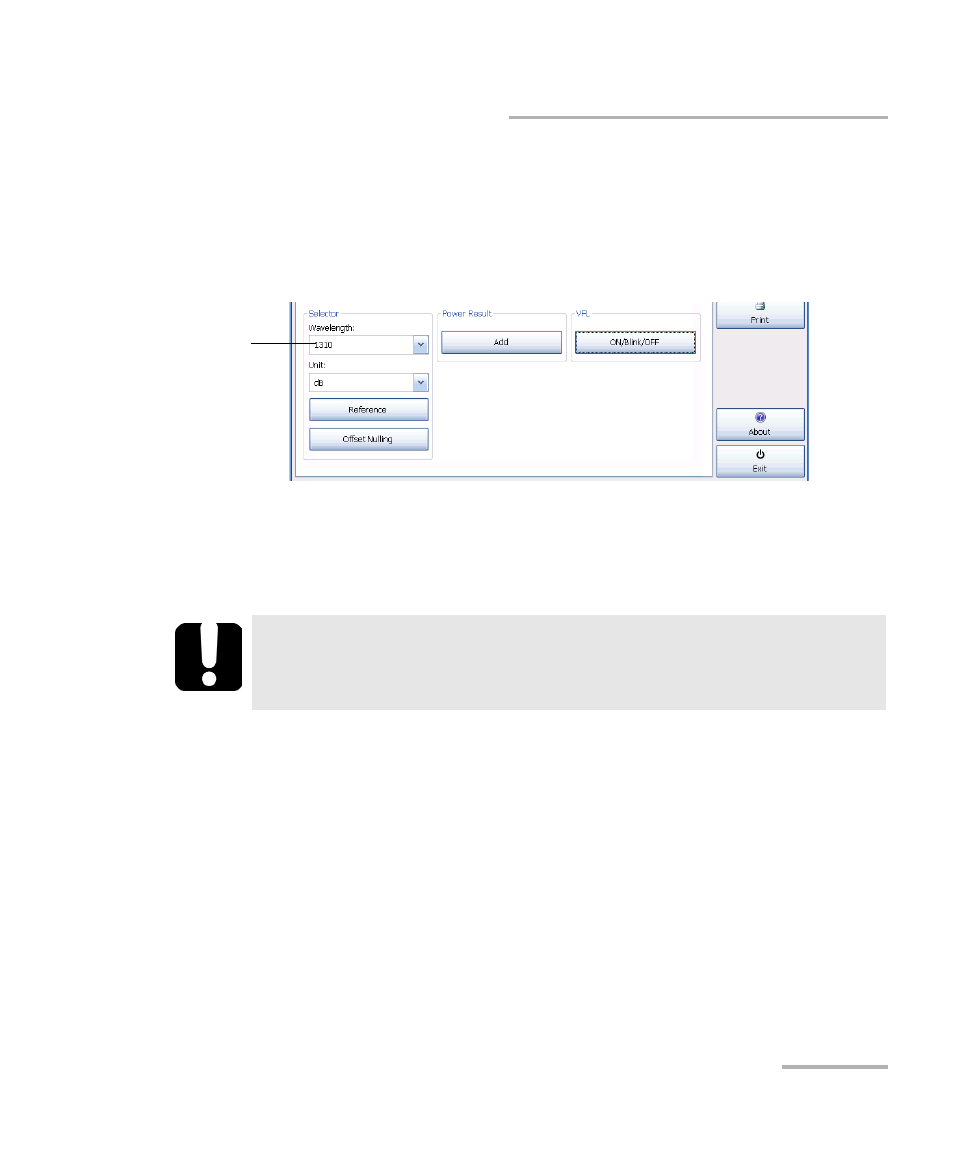

Wavelength list
