Eurocom M5 Pro - Manual (Page 50)

1 - 16 Right View
Quick Start Guide
1

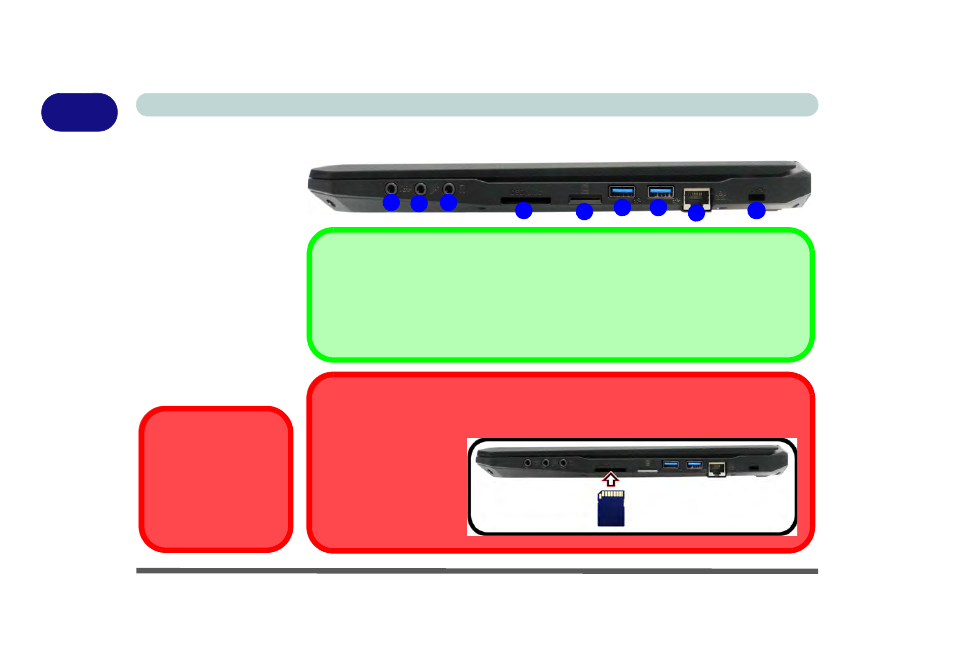

Right View
Figure 1 - 8
Right View
1. S/PDIF-Out Jack
2. Microphone Jack
3. Headphone Jack
4. Multi-in-1 Card
Reader
5. SIM Card Reader
(for 3G/4G USIM
Cards - see over)
6. 2 * USB 3.0 Ports
7. RJ-45 LAN Jack
8. Security Lock Slot

USB Ports
Note that the connec-
tions to the USB ports
only fit one way, do not
force them.
1 3
4
2
6 8 5

Multi-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / RSMMC
SD (Secure Digital) / Mini SD / SDHC / SDXC
6
7

Inserting Cards into the Card Reader
Note that the cards should
be inserted with the read-
able side of the card fac-
ing upwards
, as
illustrated on the right.
