System Map: Front View with LCD Panel Open (Models A & C)
Note that the
Touchpad
and Buttons
valid opera-
tional area is
that indicated
within the red
dotted lines.
2 1
9
3
8
5
15.6” (39.62cm)
4
10
11
8
12
6
7

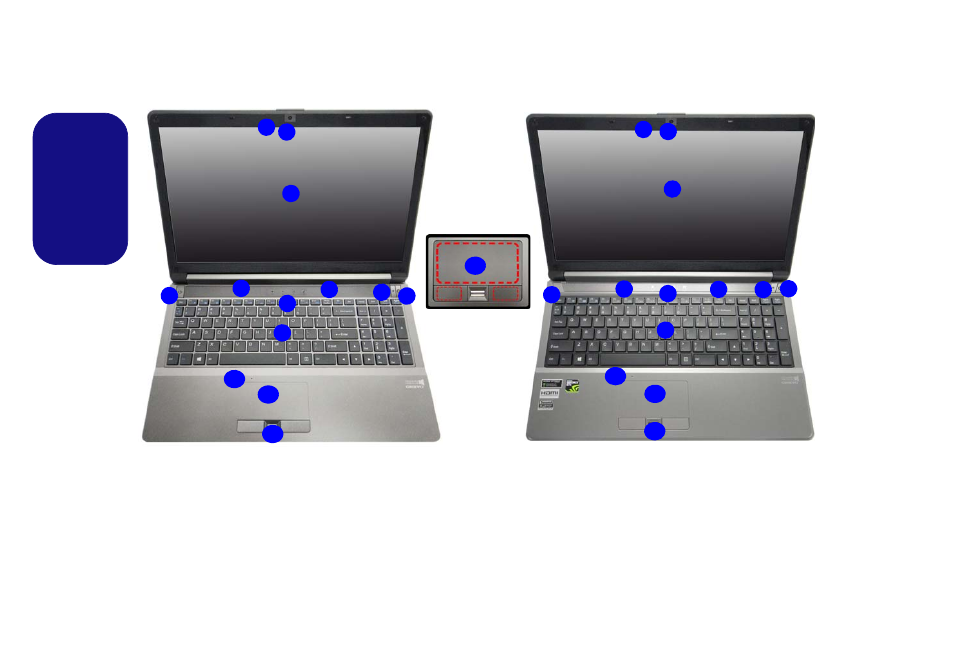

Figure 5 - Front View with LCD Panel Open (Models A & C)
1. PC Camera
2. *PC Camera LED
*When the PC camera is in use,
the LED will be illuminated in red.
3. LCD
4. Power Button
5. LED Indicators
6. Airplane Mode Button
7. Control Center Button
8. Speakers
9. Keyboard (Model A)
Illuminated Keyboard (Model C)
10. Microphone
11. Touchpad & Buttons
12. Fingerprint Reader
(Optional)
