Graphic display, Rt45 operator’s manual – Ditch Witch RT45 User Manual
Page 32
RT45 Operator’s Manual
Controls - 33
Center Console
CMW
®

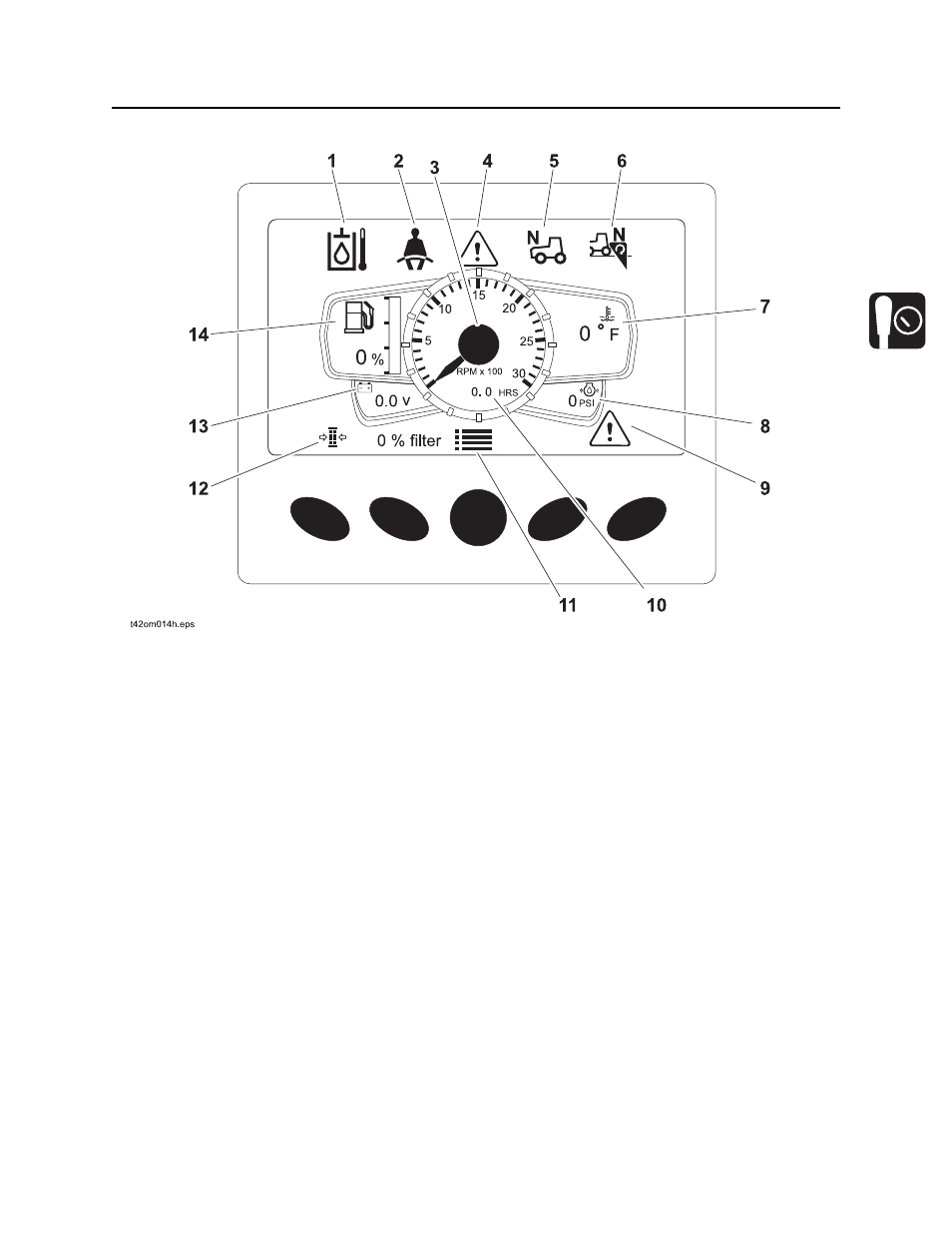

Graphic Display
1.
Hydraulic fluid temperature indicator
2.
Operator presence indicator
3.
Engine speed (RPM)
4.
Diagnostic message indicator
5.
Ground drive neutral indicator
6. Attachment drive neutral indicator
7.
Engine coolant temperature
8.
Engine oil pressure indicator
9.
Diagnostic menu button
10. Hourmeter
11. Settings menu button
12. Air filter restriction indicator
13. Electrical system voltage
14. Fuel level indicator
