Ditch Witch RT45 - Manual (Page 195)

Specifications - 198
RT45 Operator’s Manual
MT12 MicroTrencher
CMW
®
MT12 MicroTrencher

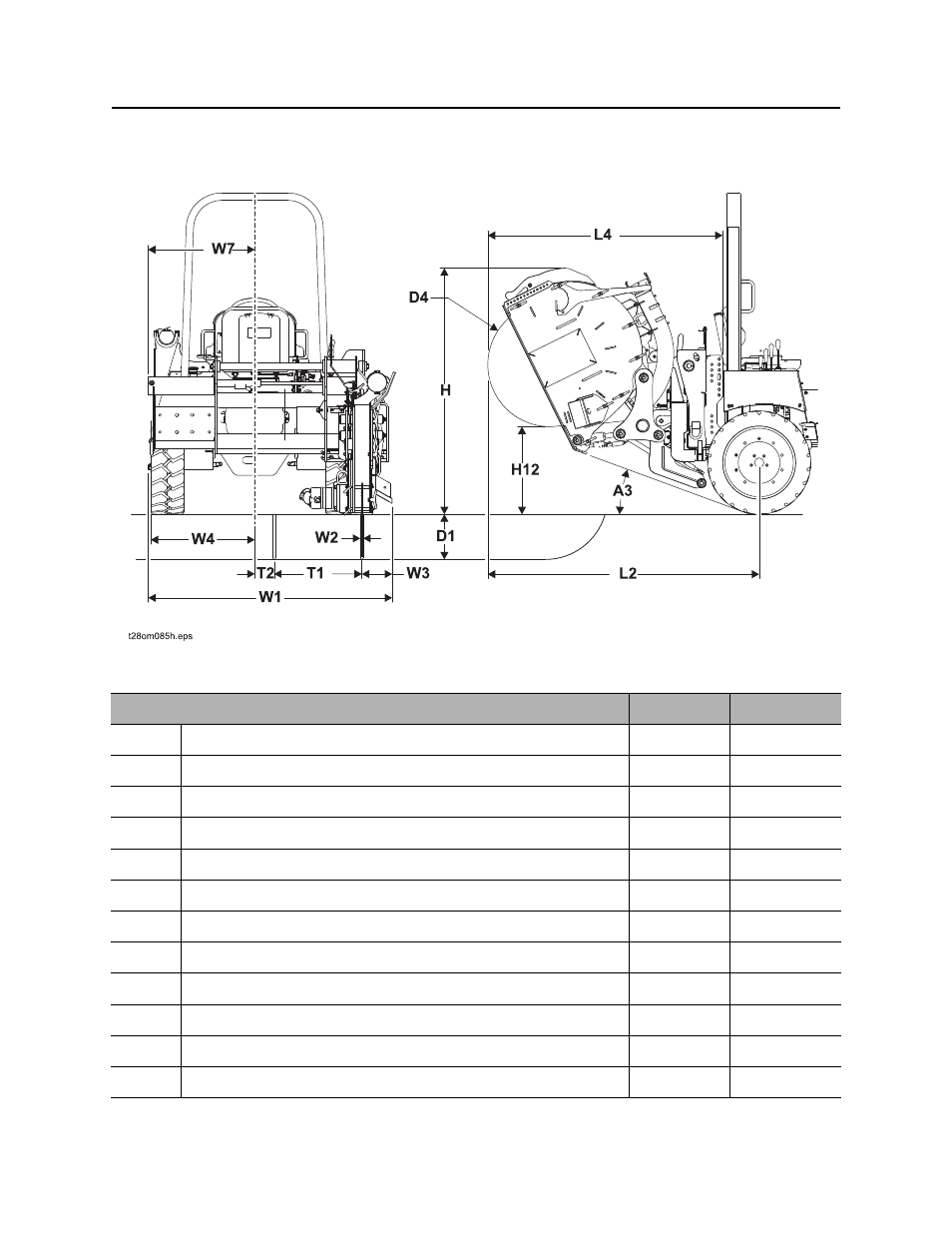

Dimensions U.S. Metric
A3 Angle of departure 19° 19°
D1 Trench depth, 1-in (25-mm) increments 6.5-12.5 in 165-318 mm
D4 Blade diameter 34 in 864 mm
H Attachment height, transport 68 in 1.72 m
H12 Ground clearance at wheel 24 in 610 mm
L2 Length, transport, from centerline of rear axle 75 in 1.90 m
L2’ Working length, from centerline of rear axle (not shown) 81 in 2.06 m
L4 Length, transport, from front of attachment 64 in 1.62 m
T1 Saw offset distance 24 in 610 mm
T2 Centerline of saw to centerline of unit, minimum offset 5.3 in 135 mm
W1 Maximum working width 67 in 1.70 m
W2 Trench Width 0.75-1.25 in 19-32 mm
