Specifications - 192
RT45 Operator’s Manual
H350 Combo
CMW
®
H350 Combo
Trencher

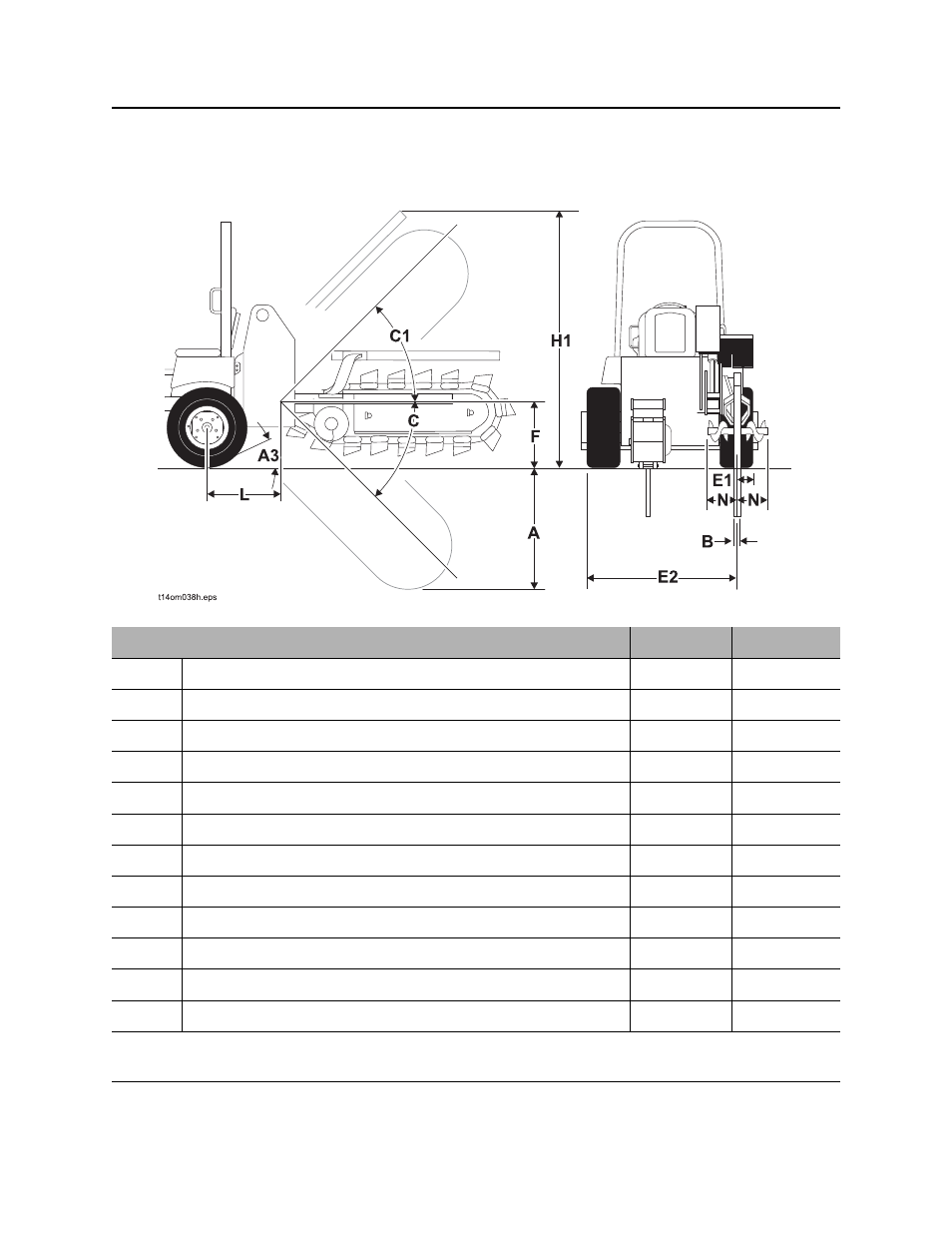

Dimensions * U.S. Metric
A Trench depth, maximum 42 in 1.1 m
A3 Angle of departure 33° 33°
B Trench width, minimum to maximum 6-8 in 150-200 mm
C Boom travel down 55° 55°
C1 Boom travel up 51° 51°
E1 Centerline of trench to outside edge, left 52 in 1.3 m
E2 Centerline of trench to outside edge, right ** 3 in 80 mm
F Headshaft height, digging chain 23 in 590 mm
Overhang beyond tire 4.5 in 115 mm
H1 Transport height 86 in 2.2 m
L Headshaft overhang 25 in 630 mm
N Soil discharge reach 17 in 430 mm
* Dimensions are based on shortest roller boom, 26 X 12.00-12 standard tire and wheel.
** With 6” (150-mm) chain, right side of trench will be in line with right outside edge of tires.
