RT45 Operator’s Manual
Specifications - 193
H350 Combo
CMW
®
Plow

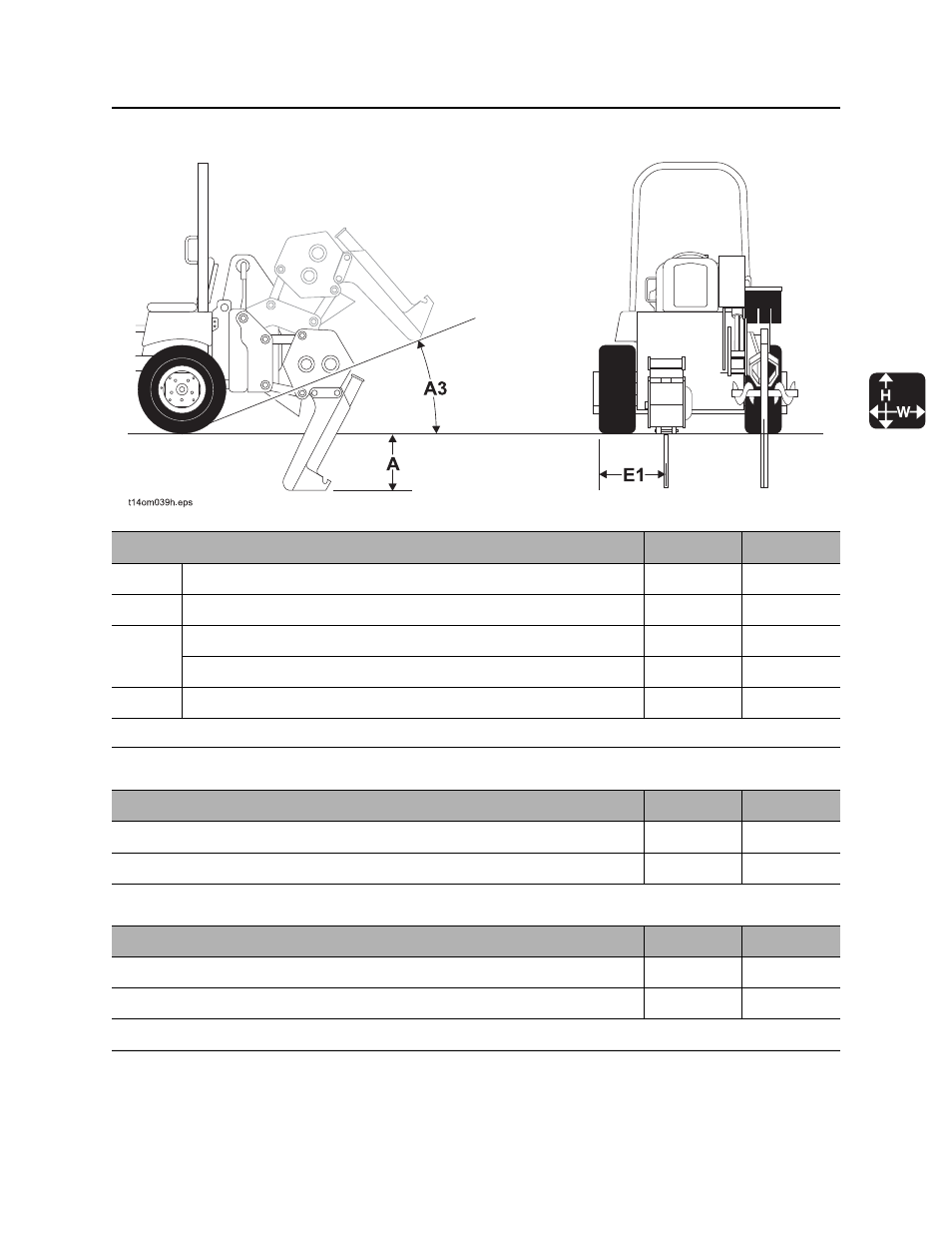

Dimensions U.S. Metric
A3 Angle of departure, transport, 18” (457-mm) blade 17° 17°
A Cover depth, maximum* 24 in 610 mm
Plow swing angle, left 30° 30°
Plow swing angle, right 20° 20°
E1 Center of plow to outside edge of unit 20 in 510 mm
*Suggested maximum. Plow blade used will be determined by job requirements and soil conditions.
Operation U.S. Metric
Material diameter, pull-in, maximum 2.5 in 65 mm
Material diameter, feed chute, maximum 1.5 in 40 mm
H350 General U.S. Metric
Operating weight, without augers, boom, chain, and plow blade 1500 lb 680 kg
Counterweight required, minimum 1100 lb 500 kg
With front-mounted weight rack and A323 backhoe, no rear counterweighting is required.
