IntelliSense
®
Operating Modes
The IntelliSense
®
Sensor Interface Module (SIM) can be operated in two modes, Cylinder Monitoring or Pressure /
Temperature Monitoring. The general installation and setup for these two modes is the same. The modes differ in the
status information that is displayed in the software and on the SIM.
Figure 1 lists the
information provided in each
mode. This manual is focused on using IntelliSense
®
in the Cylinder Monitoring Mode. The manual will note when the
Pressure / Temperature Monitoring mode differs from the Cylinder Monitoring mode.
Cylinder Monitoring
Cylinder Monitoring mode is used to measure and analyze the performance of pneumatic cylinders.
Pressure / Temperature Monitoring
Pressure / Temperature Monitoring mode is used in system monitoring to establish alerts based on pressure and
temperature limits.

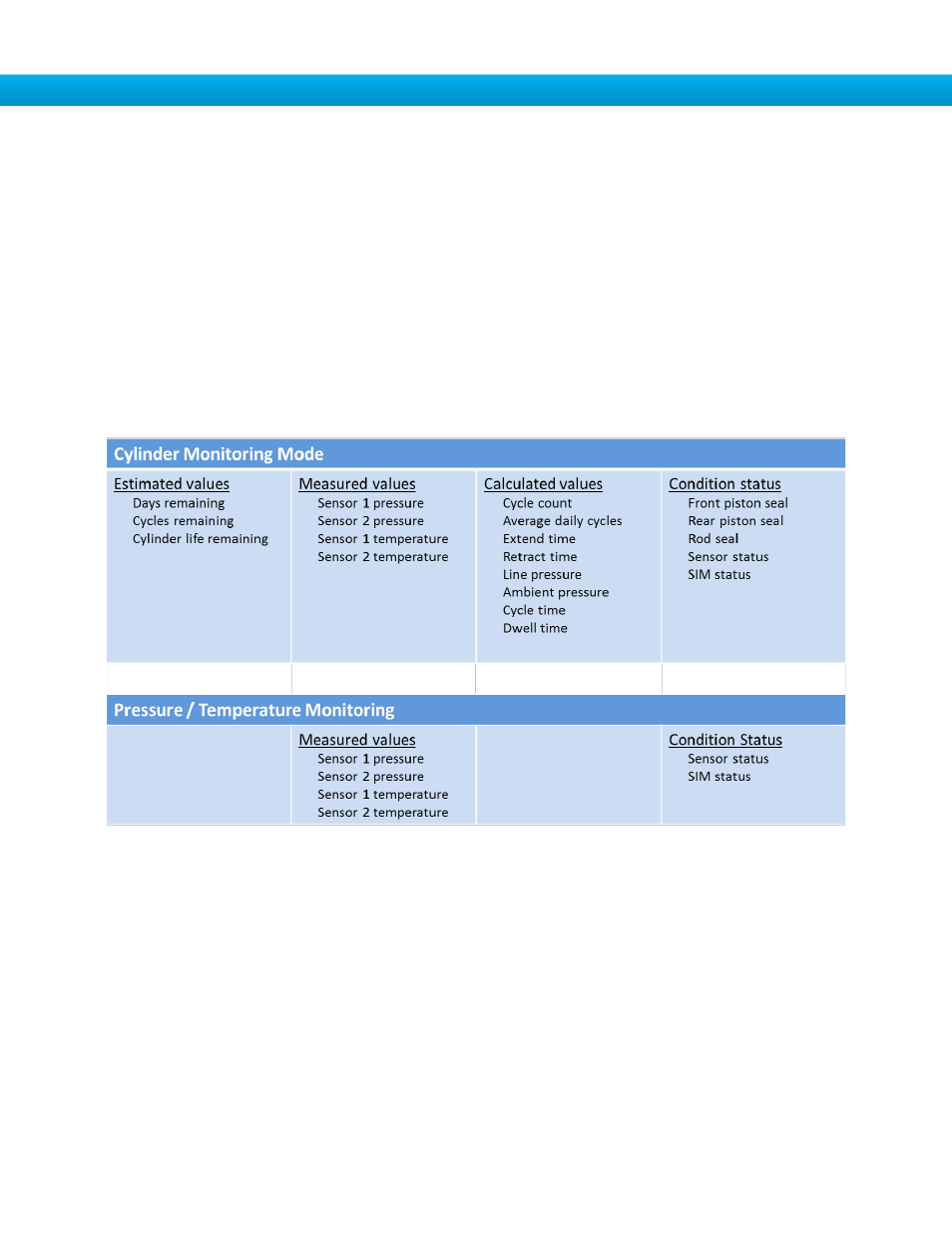

Figure 1: Information available in IntelliSense
®
operating modes
