IntelliSense ® Manual
35
Using IntelliSense ® with a PC or Data Gateway
Top Menu Bar
The Top Menu bar is located in the top right corner of the screen and is accessible from any window in IntelliSense ®
and has the following functions:
User Options:
Logout: Allows the current user to log off the system
Change Password: Allows the current user to change their password
Switch to oC/oF: Toggles the temperature units used to display measurements
Switch to mBar(a)/psia: Toggles the pressure units used to display measurements
Hide tips: Hides the command and field tips
Help: Provides a link to the software help file
Alerts: Provides real-time feedback if there are any alerts in the system. Selecting the tab brings a drop
down list with the detail of each alert.

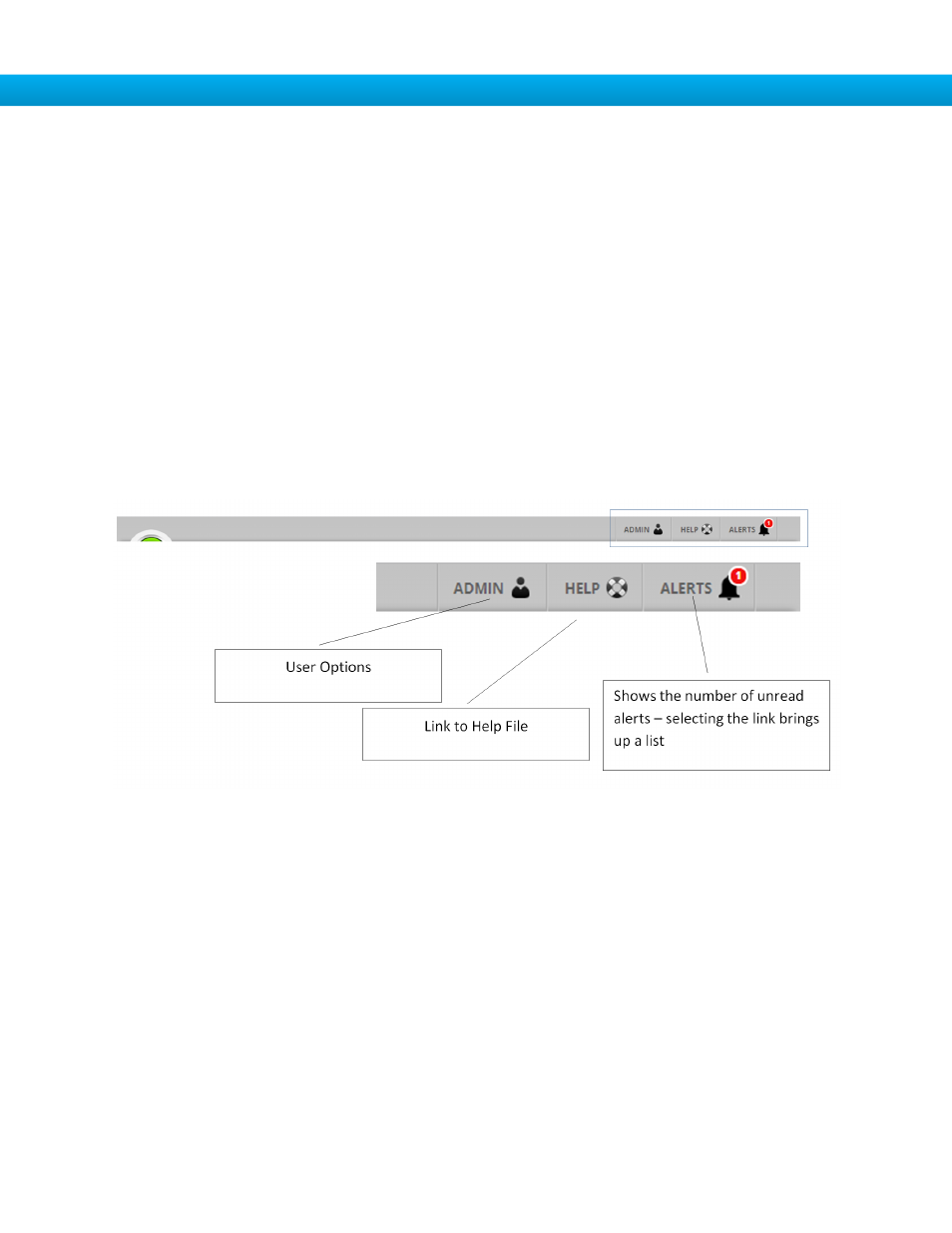

Figure 43: Menu Bar
Dashboard
The IntelliSense
® dashboard is the program homepage and provides a summary of all of the SIMs connected to the
computer or gateway. It is the first page that is shown after logging in to the computer or gateway and can be ac-
cessed from any other window by selecting the Status tab on the left.
The IntelliSense ® dashboard has a list of all of the SIMs displayed along with the current status. From this page, it is
possible to select a SIM individually to view detailed status and real time monitoring information (see SIM Status and
SIM monitoring sections), change SIM settings (SIM Configuration) and export logged data.
The cylinder icon next to the SIM name indicates the status of the cylinder. The cylinder icon at the top of the window
indicates the status of the machine that the gateway is monitoring, and is the worst case of all of the cylinders in the
list.
