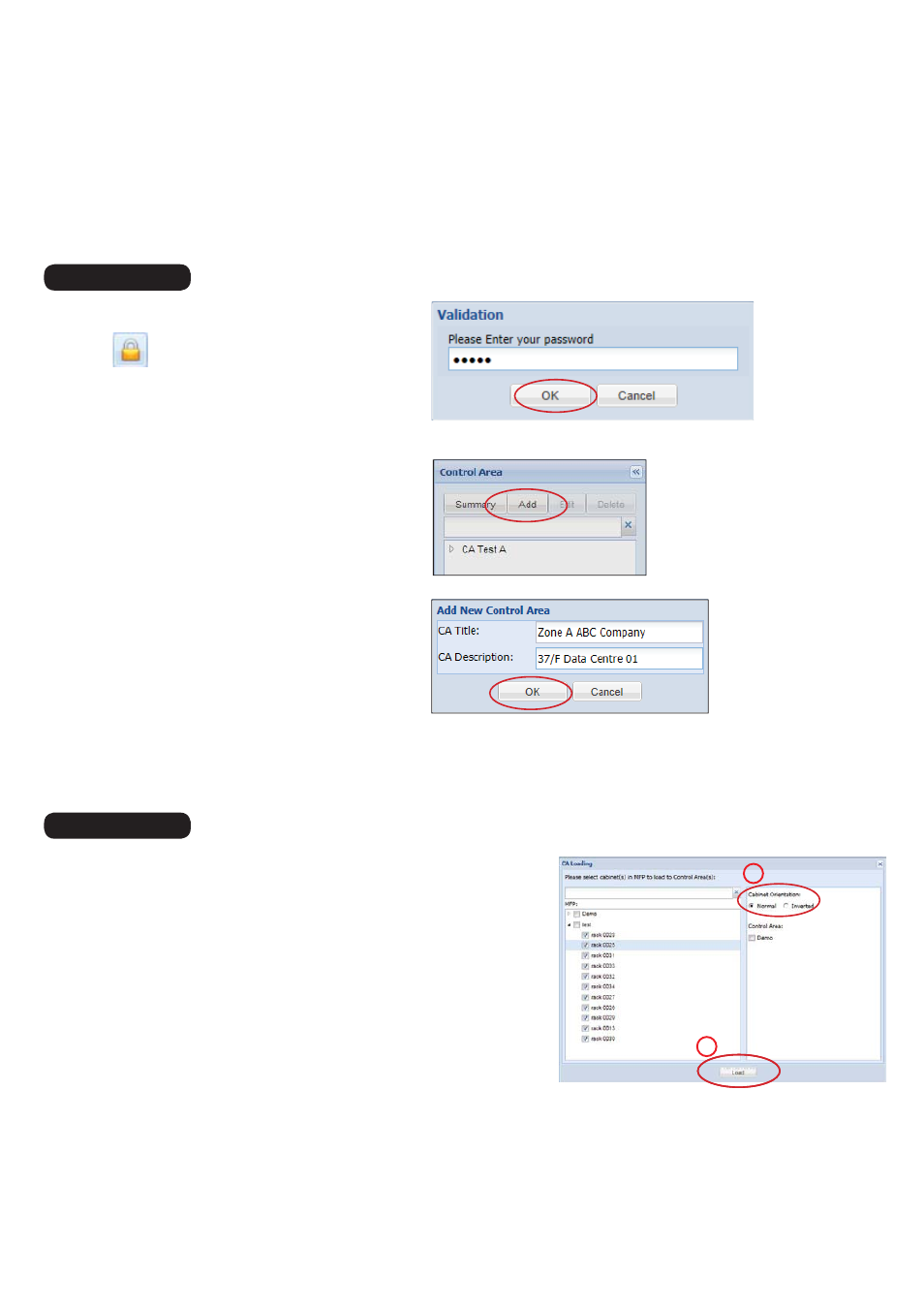

1. Click “ Control Area “ tab
2. Click “ “ & input the login password
in validation window to enter “ Edit Mode “
3. Click “ Add “
4. Input the CA title & Description
( min. 1 char / max. 32 char )
5. Click “ OK “ to fi nish CA addition
< 10.3 > CA - Control Area
1. Go back to “ MFP “ tab
2. Select the MFP where the cabinet( s ) you want to load to CA
3. Click “ CA loading “
4. You can load whole MFP cabinets or part of them by tick
5. In “ Cabinet Orientation “, you can select Normal if the rear
door at bottom side, or select Inverted if the rear door at top side
6. Click “ Load “ button to fi nish CA loading.
Load Cabinet
Add CA
5
6
- You can build a Control Area for some specifi c cabinets which you want to monitor, confi gure & control.
- All cabinets in the CA should be loaded from the MFP by CA Loading button.
- CA can be more than one. How many CA is subject to your plan.
- CA has 2 modes : Edit mode & View mode.
- Under Edit mode, you can confi gure not only cabinets but also devices such as PDU, fan unit & sensors.
- View mode is designed for users with limited authority so they can ONLY monitor the status of cabinet & device.
