www.austin-hughes.com UM-X-600-ISM-Q214V2 P.17
Side View
Front View

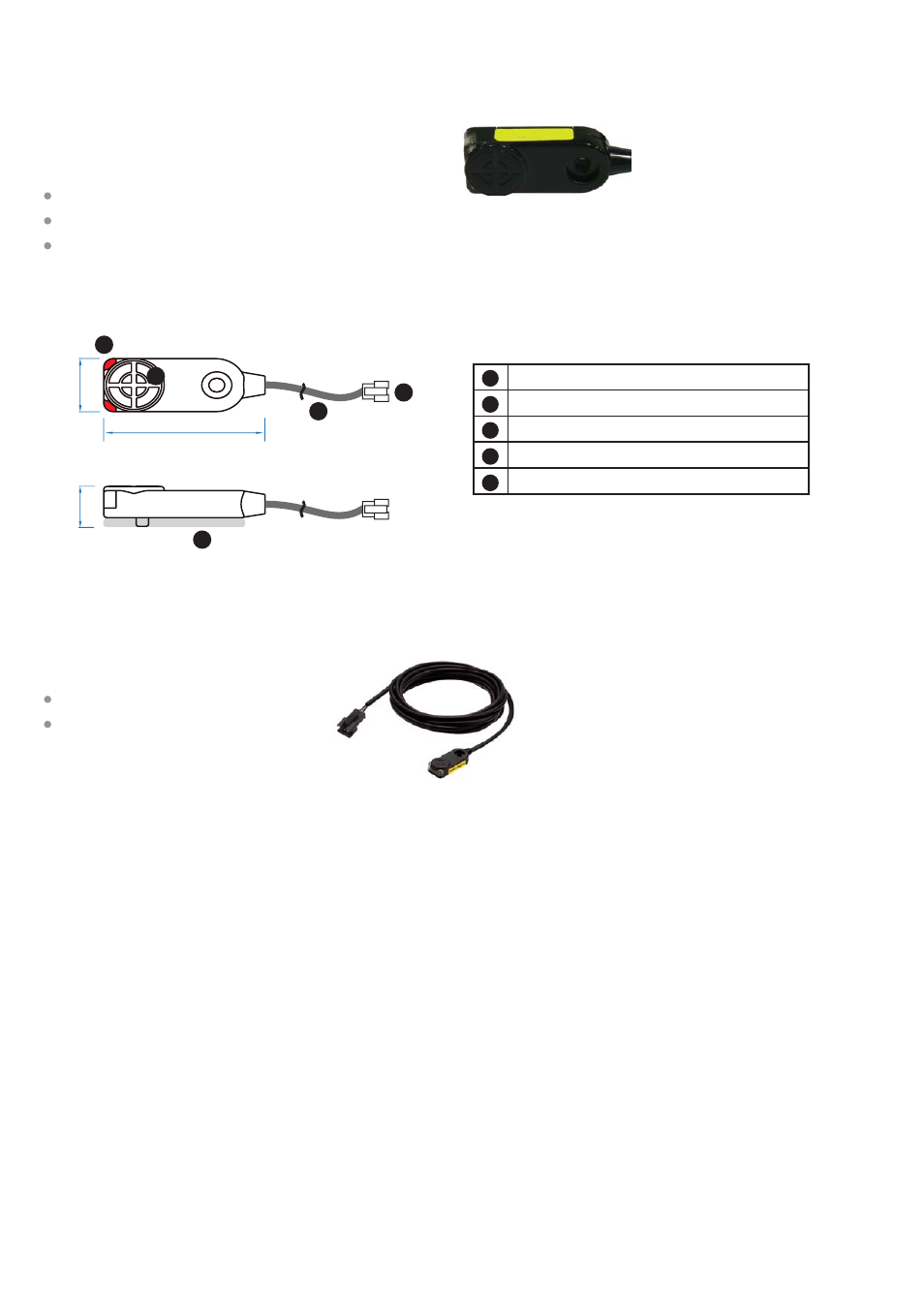

Inductive Door Sensor, pair ( S-DSI )
Features
Package content
light weight / adhesive
mini size ( 32.5 x 12.2 x 9.2 mm )
no custom cutting required on door
Inductive sensor w/ 2m cable x 2
2mm adhesive tape x 6
< 2.4 > Door Sensor - Inductive
9.2 mm
32.5 mm
12.2 mm
1
2
3
5
4
Sensor area
Red LED ( light up while door opening )
2m cable
Cable jack ( connect to handle )
2mm adhesive tape
2
3
4
5
1
