< 2.3 > Handle X-600P / X-600M

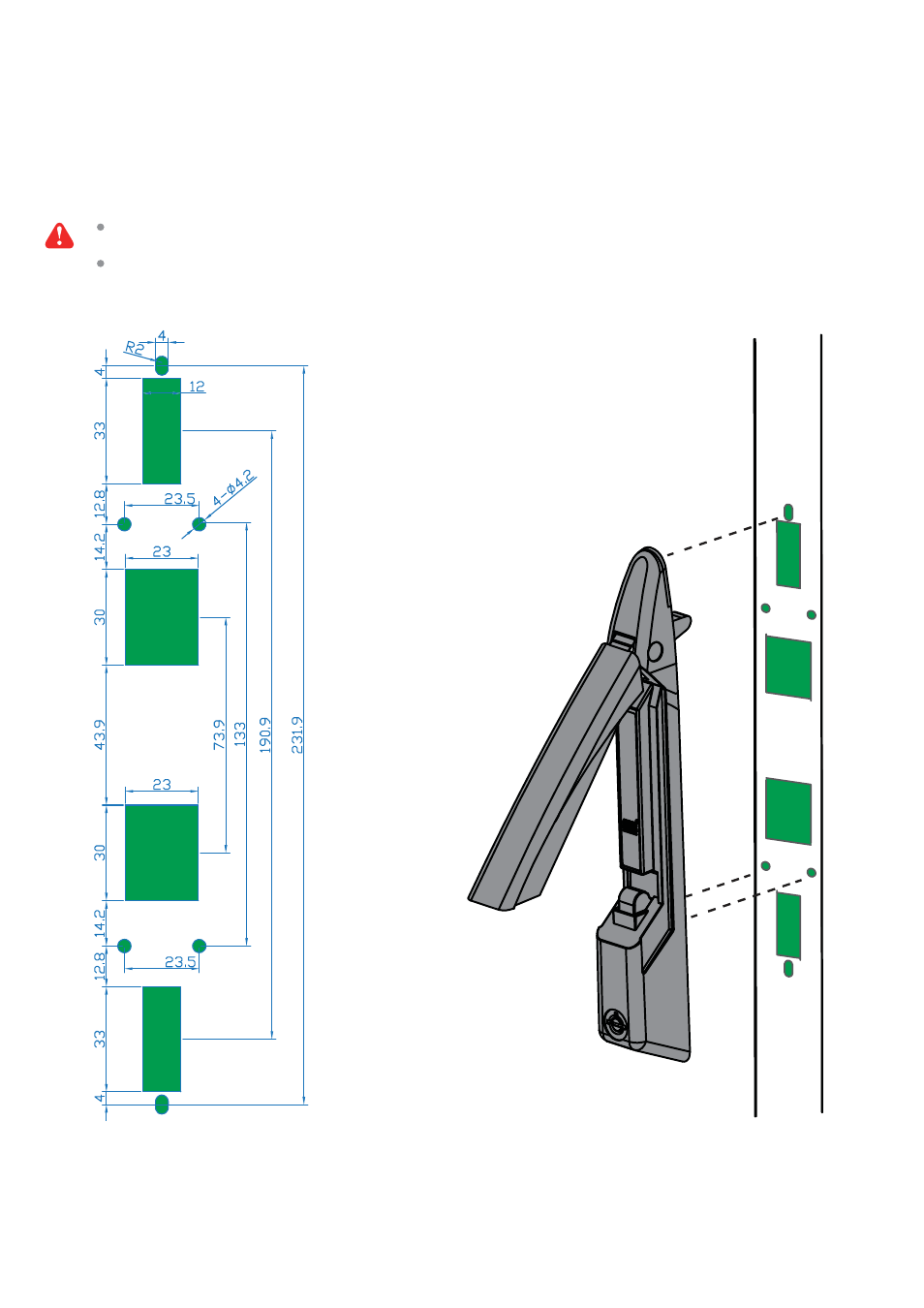

Custom Mounting Cut-out on Cabinet Door for Handle Installation :
Unit : mm
It is highly important to make a correct handle mounting cut-out on cabinet door.
Please 100% follow the diagram on the below to make the cut-out.
Cabinet
door
>>>>>
