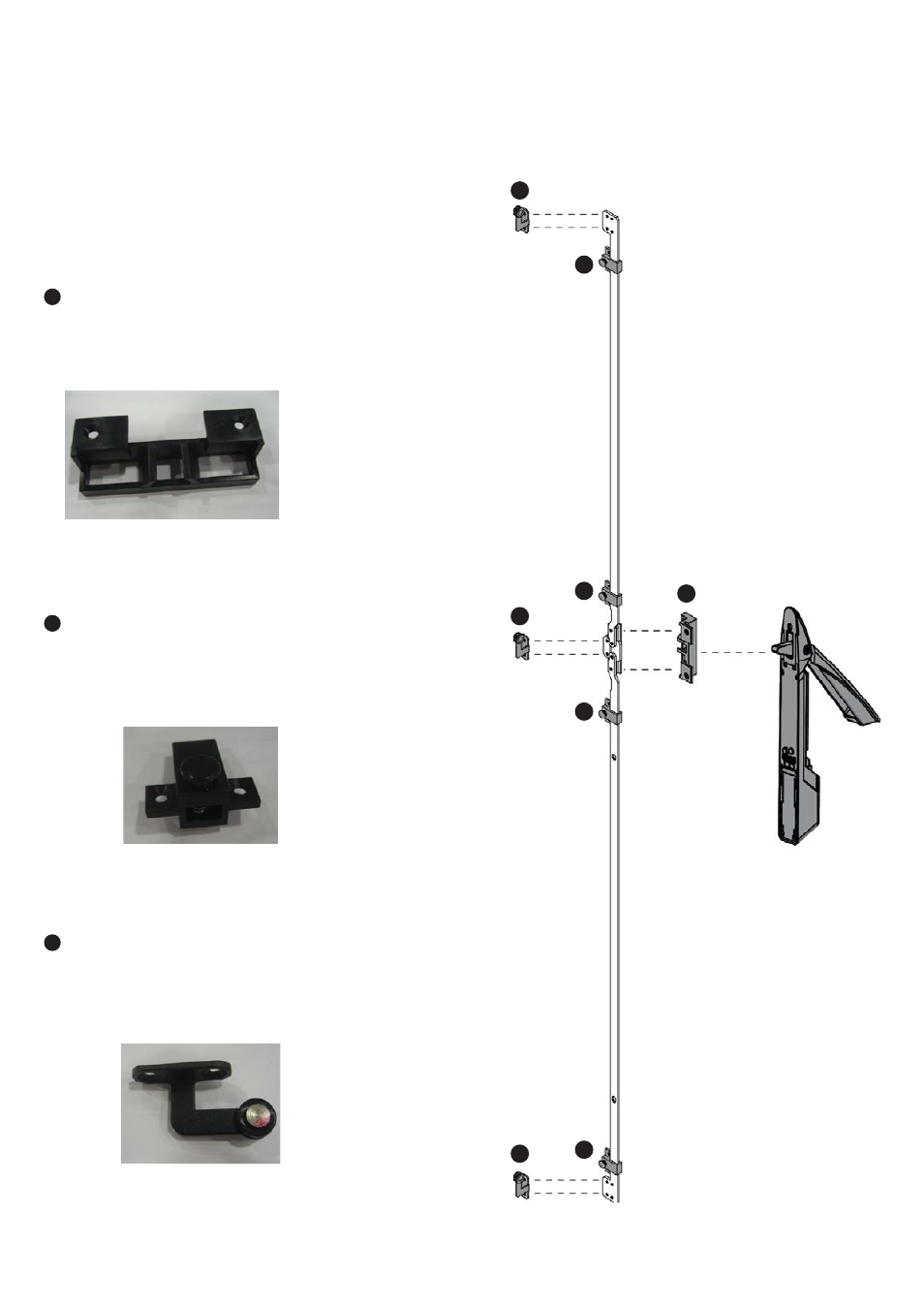

Parts of Cabinet Door Locking Bar
Three parts available for cabinet manufacturer
to produce the cabinet door locking bar system
integrated with X-600 handle .
1
3
3
3
2
2
2
2
Locking bar handle bracket, pc
Order part no. : 404 - 8 - 02111
material : alloy
( fi xing screw not provided )
1
Locking bar roller, pc
Order part no. : 314 - 0 - 10020
material : alloy
( fi xing screw not provided )
Dimension Diagram
on next page
Dimension Diagram
on next page
Dimension Diagram
on next page
2 Locking bar retaining bracket, pc
Order part no. : 314 - 0 - 10010
material : alloy
( fi xing screw not provided )
3
Locking
Bar >>>>>
< 2.3 > Handle X-600P / X-600M
