Requirements
cabinet frame made of ferrous metal ( iron )
sensing distance 3mm
Installation steps

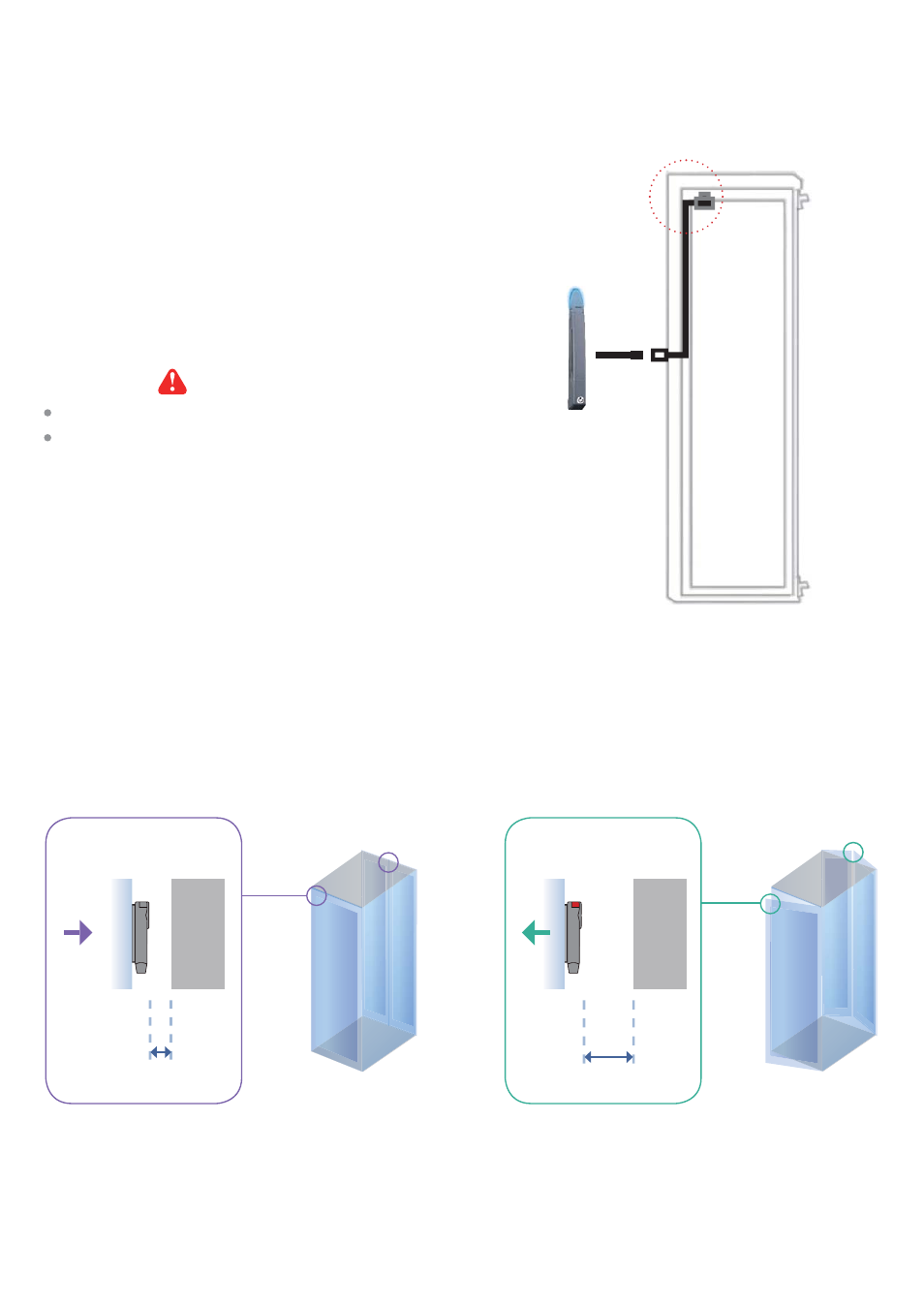

Suggested
sensor position
- connect to the handle
- guide & fi x the cable with cable clips ( bundle with handle package )
- place the sensor at the top of the door, close to the opening side
- adjust the sensor with adhesive tape to ensure the sensing distance
between door to frame within 3mm while door in close status
Sensor Operation
CLOSED
Cabinet
frame
Door
frame
Sensing distance
< 3mm
OPENED
Sensing distance
> 3mm
Cabinet
frame
Door
frame
DOOR CLOSE
- close door
- inductive sensor detects the cabinet frame
- DOOR CLOSE SIGNAL sends out DOOR OPEN
- open door
- inductive sensor lose detection with cabinet frame
- Red LED of sensor light up
- DOOR OPEN SIGNAL sends out
< 2.4 > Door Sensor - Inductive
