1.4 Specifications
1.4.1 Physical Specifications
Table 1-3 lists the physical dimensions of the baseboard.
1.4.2 Mechanical Specifications

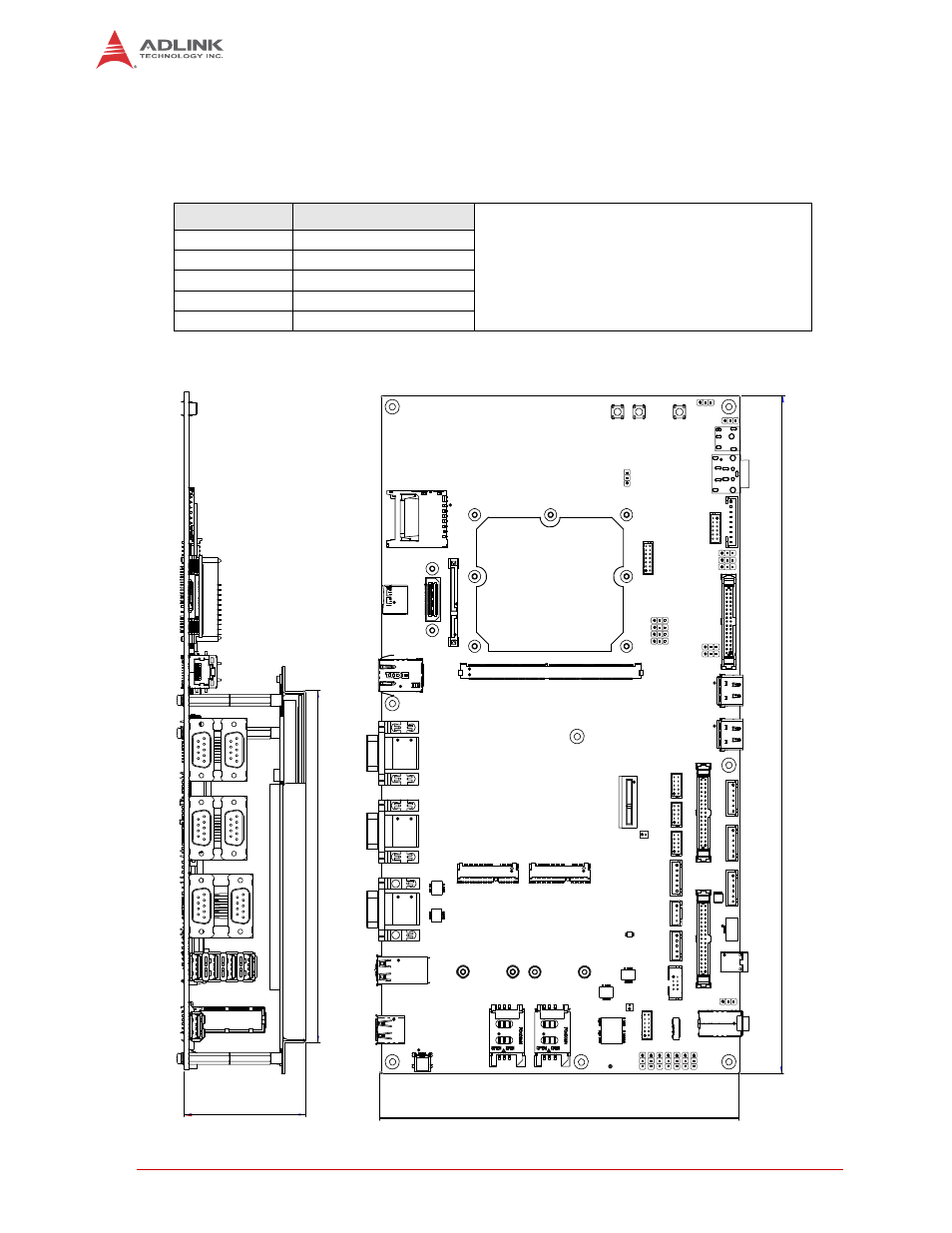

Figure 1-4: Mechanical Dimensions (Top Side)
Table 1-3: Weight and Footprint Dimensions
Item Dimension Overall height is measured from the upper board
surface to the top of the highest permanent
component on the upper board surface. This
measurement does not include the cooling solution,
which can vary. The cooling solution will probably
increase this dimension.
Weight 0.42 kg (0.93 lb)
Height (overall) 33.02 mm (1.30 inches)
Board thickness 2.03 mm (0.08 inches)
Width 175.00 mm (6.89 inches)
Length 330.00 mm (12.99 inches)
6.89" (175mm) 2.32" (59mm)
6.73" (171mm)
12.99" (330mm)
LEC-BASE_T
op_MechDmn_b
