Page 66 Express-CVC
Azalia Vci Enable
Azalia supports 1 extended VC, which, when enabled, overrides ICH VCp settings

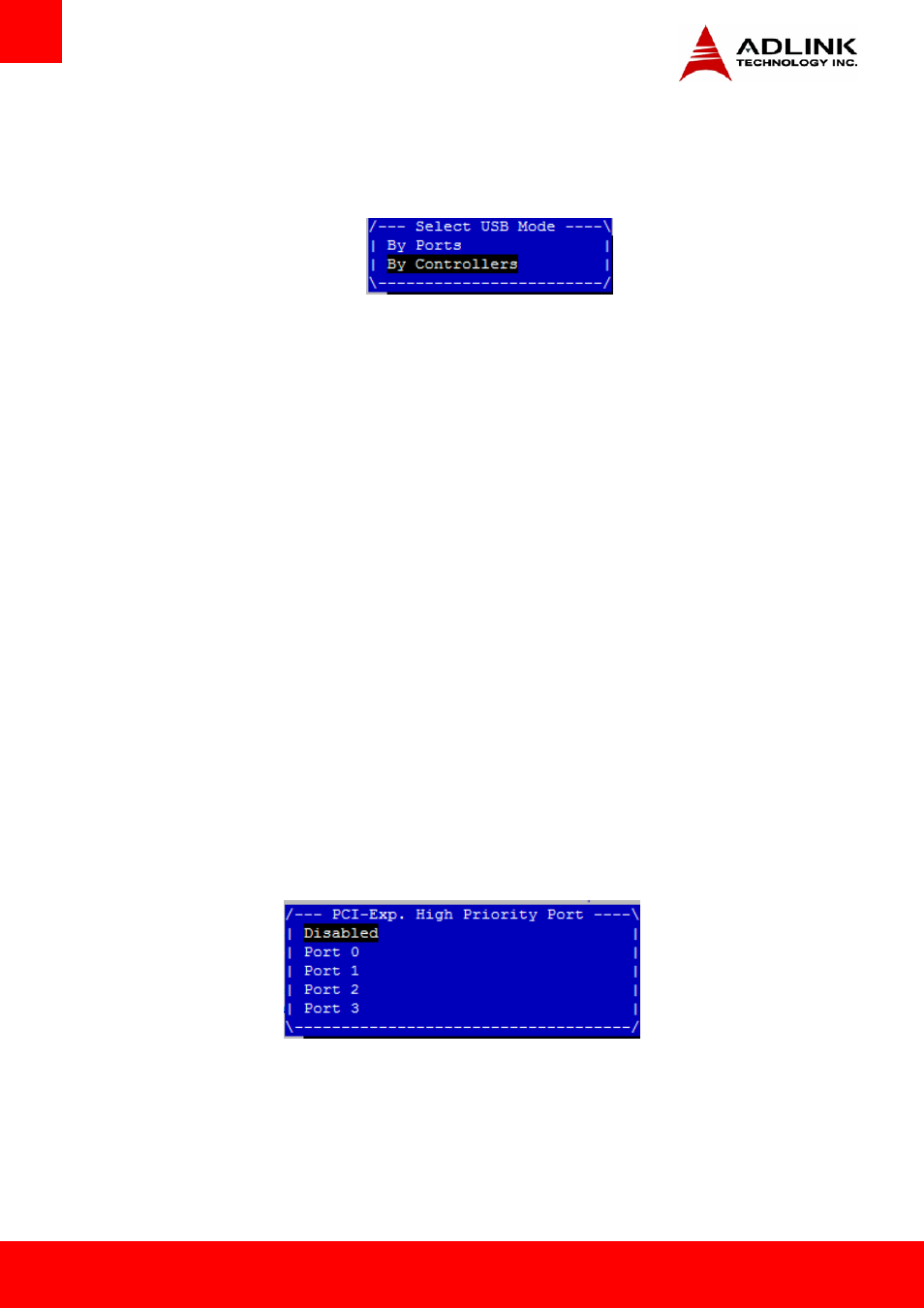

Select USB Mode
Select USB mode to control USB ports.
UHCI #1-4 Controller
The UHCI controller. Set this value to Enabled/Disabled.
USB2.0 Controller
The EHCI controller. Set this value to Enabled/Disabled.
SMBus Controller
The SMBus controller. Set this value to Enabled/Disabled.
LAN Controller
Enable/Disable OnChip NIC Controller.
SMBus Controller
Enable/Disable OnChip SMBus Controller.
SIRQ Logic
Enable/Disable SIRQ logic.
SIRQ Mode
Set SIRQ mode.
PCI Express Ports Configuration
The PCI Express Ports in the chipset. Configuration options: Enable, Disable.
DMI Link ASPM Control
The control of Active State Power Management on both NB side and SB side of the DMI Link.
PCI-Exp. High Priority Port
Select a PCI Express High Priority Port.
High Precision Timer
Enable/Disable the High Precision Event Timer.
