Functional diagram, Nm10 – ADLINK Express-CVC User Manual
Page 11
Express-CVC
Page 11

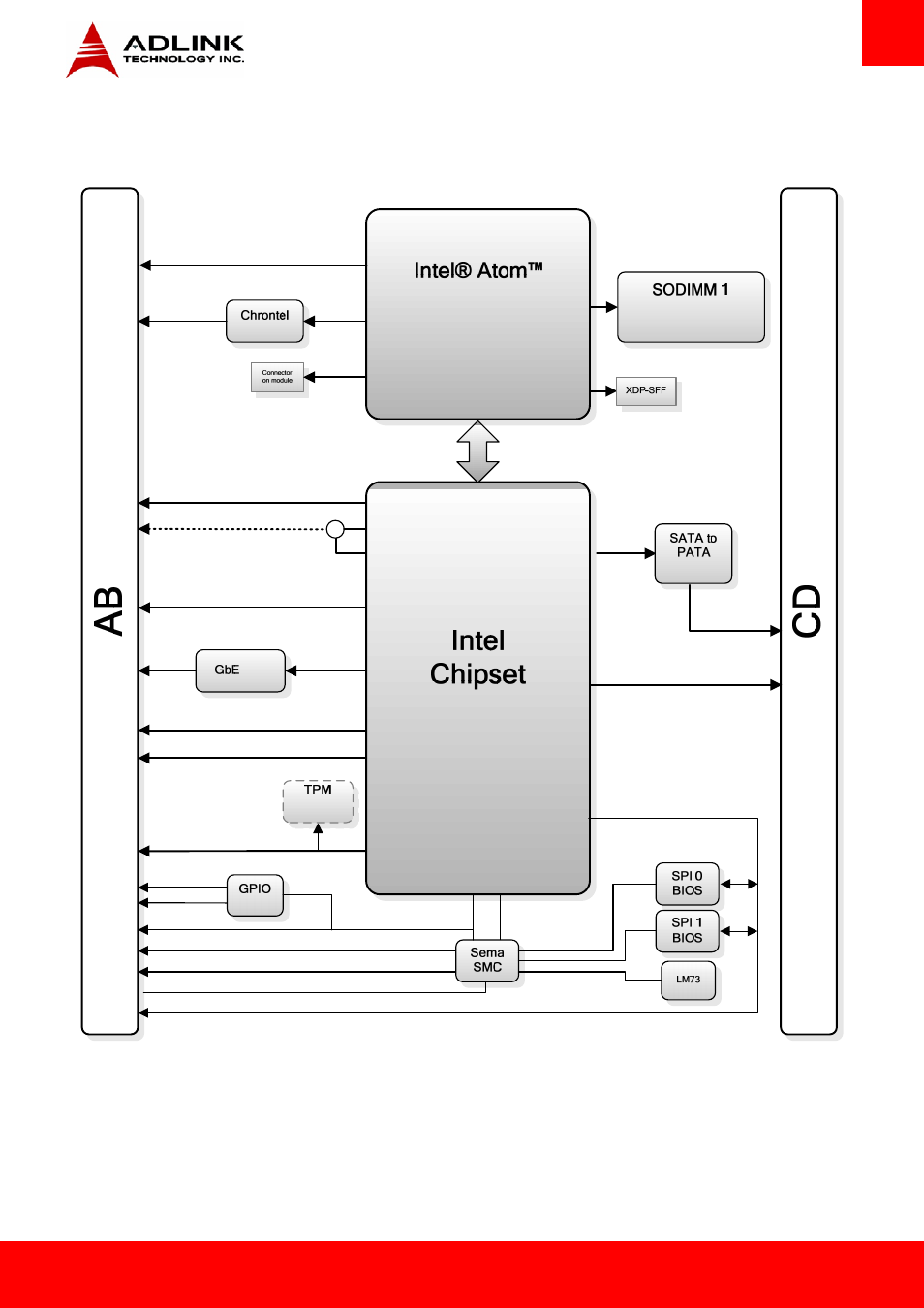

2.15. Functional Diagram
SATA
3x PCIe x1
(port 0,1,2)
CH7511
NM10
N2600
N2800
D2550
eDP/DP
HDA Audio
800/1067 MHz
1~4 GB DDR3
VGA
SATA 3Gb/s (port 0)
DM
I
LVDS 24-bit
i210
PCI Bus
PCIe x1
(port 3)
JM330
PATA
IDE
DP
SATA 3Gb/s (port1)
8x USB 2.0
ATMEL
AT97SC3204
PCA9535
SMbus
4x GP0
GP I2C
LPC bus
SPI
4x GPI
DDC I2C
SPI_CS0
SPI_CS1
SPI_CS#
