Express-HL2 Page 33
4.4 Fan Connector
¾ Connector Type: JVE 24W1125A-04M00
¾ Pin Assignment
Name Signal Description
1 BMC_FAN_OUT FAN_PWMOUT
2 BMC_FAN_PWM_IN FAN_TACHIN
3 GND Ground
4 P5V_S 5V
4.5 BIOS Setup Defaults Reset Button
To perform a hardware reset of BIOS default settings, perform the following steps:
1. Shut down the system.
2. Press the BIOS Setup Defaults RESET Button continuously and boot up the system. You can release the button when the BIOS
prompt screen appears

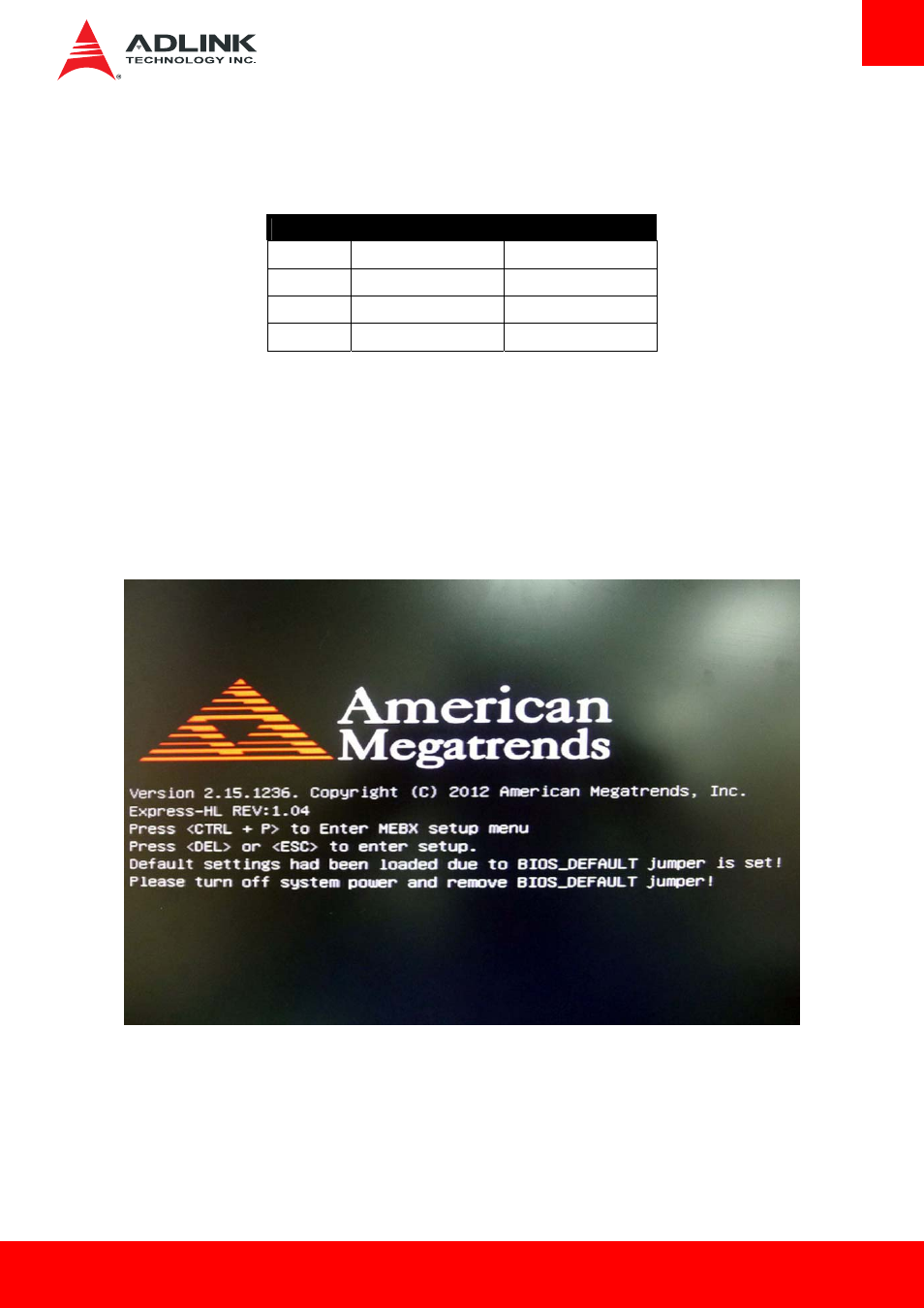

3. The BIOS prompt screen will display a confirmation that BIOS defaults have been reset and request that you reboot the system.
