Hardware Information
2.1.2
Module Stand
The multi-function USB-1900 Series stand is compatible with
desk, rail, or wall mounting. To fix the module in the stand, slide
the module body into the stand until a click is heard. To remove the
module from the stand, twist the bottom of the stand in a back-and
forth motion and separate from the module.

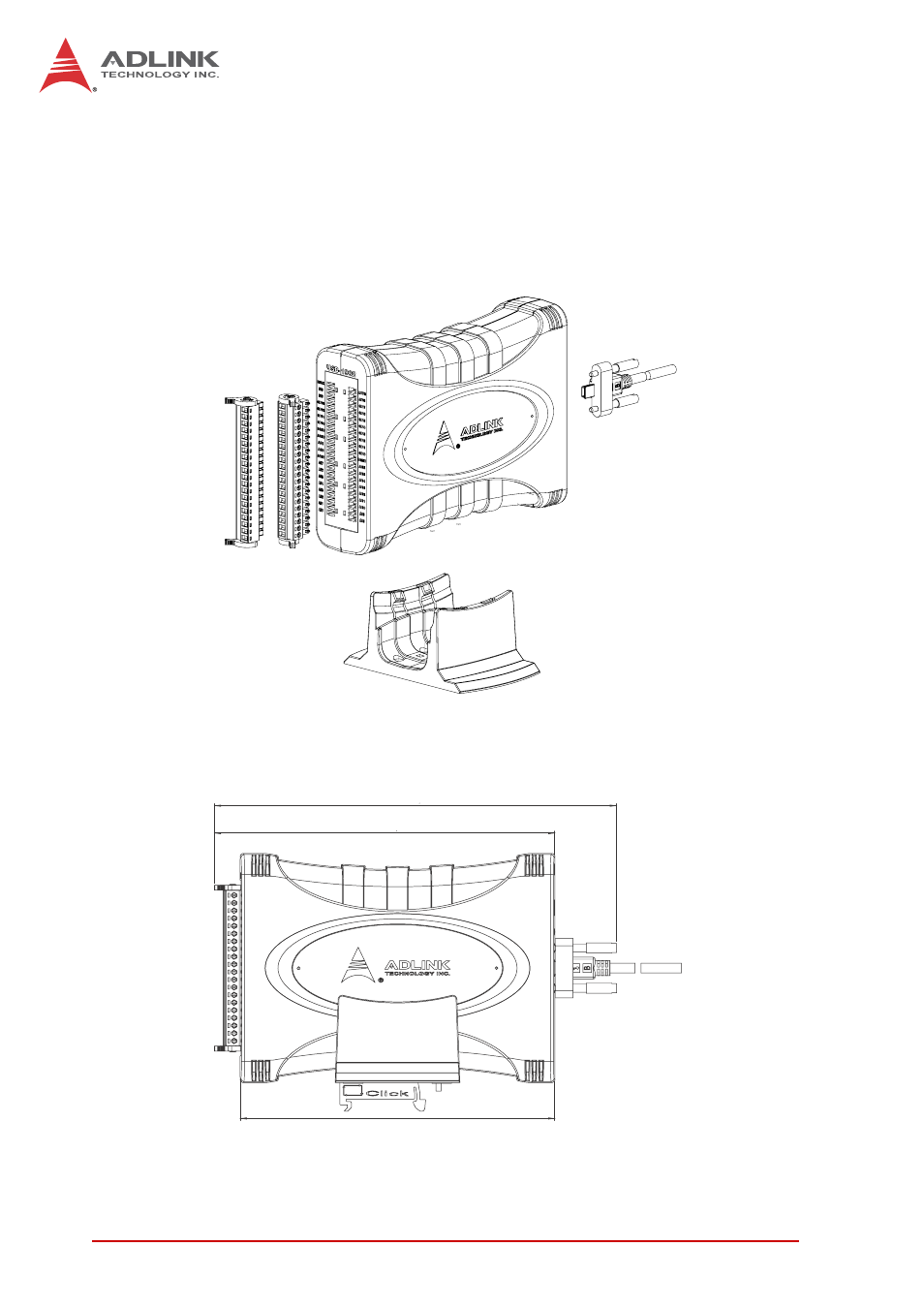

Figure 2-4: Module, Stand, Connector, and USB Cable
Figure 2-5: Module, Stand, & Wall Mount Kit Side View (w/ connections)
200.1
169.4
156.5
