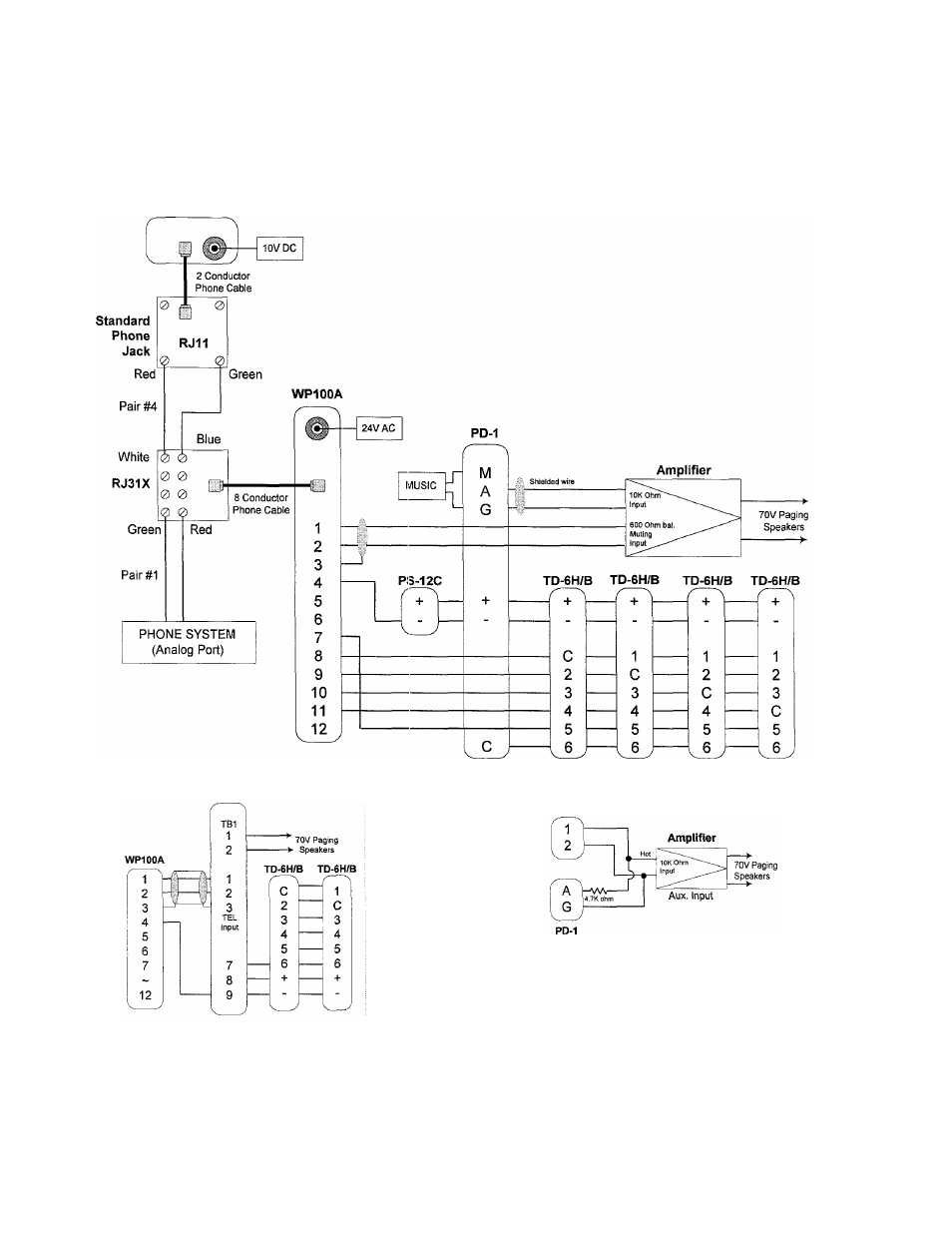

WIRING DIAGRAMS
TD-H WITH WIRELESS ROAMER SYSTEM
- With PD-1 and Amplifier -
ANA9500 Phone Base
WHEN USING A PG-C SERIES AMP
PG-C Amp
IF P.A. AMP HAS ONLY 1 INPUT AVAILABLE
FOR PAGING
WP100A
PG-C DIP SWITCH SETTINGS:
* Before operating the system, be sure to
configure the dip switches as foilows:
1 through 8: OFF (Lower position)
Optional: 6 = Pretone on/off. If pretone is
desired, move switch to ON (Upper position).
NOTES:
1. In this example;
Channel 5 of TD-6H/B calls the Roamer phone.
Channel 6 of TD-6H/B accesses the paging system.
2. To call from the phone to a TD-H intercom, Press "TALK",
channel number (1 through 4) and press # to activate ringer.
3. To cali from a TD-6H/B to the Roamer phone, press "5" and
"CALL" on the TD-6H/B (in this example). To answer, press
"TALK" on the ANA9500.
