7 OPERATIONS_________________________________________________
ADVISORY TONES (Continued):
• Call Waiting. Tone sent to the ANA9500 and the intercom station connected
to it to indicate that another telephone or intercom is trying to call the cordless
phone.
• Ring-back. Tone sent to an intercom that is attempting to call the ANA9500.
This tone is heard on the intercom station to indicate that the cordless phone is
ringing.
• Busy. Tone sent to an intercom that is attempting to call the cordless phone when
it is already on a call through the standard telephone system.
ft TROUBLESHOOTING

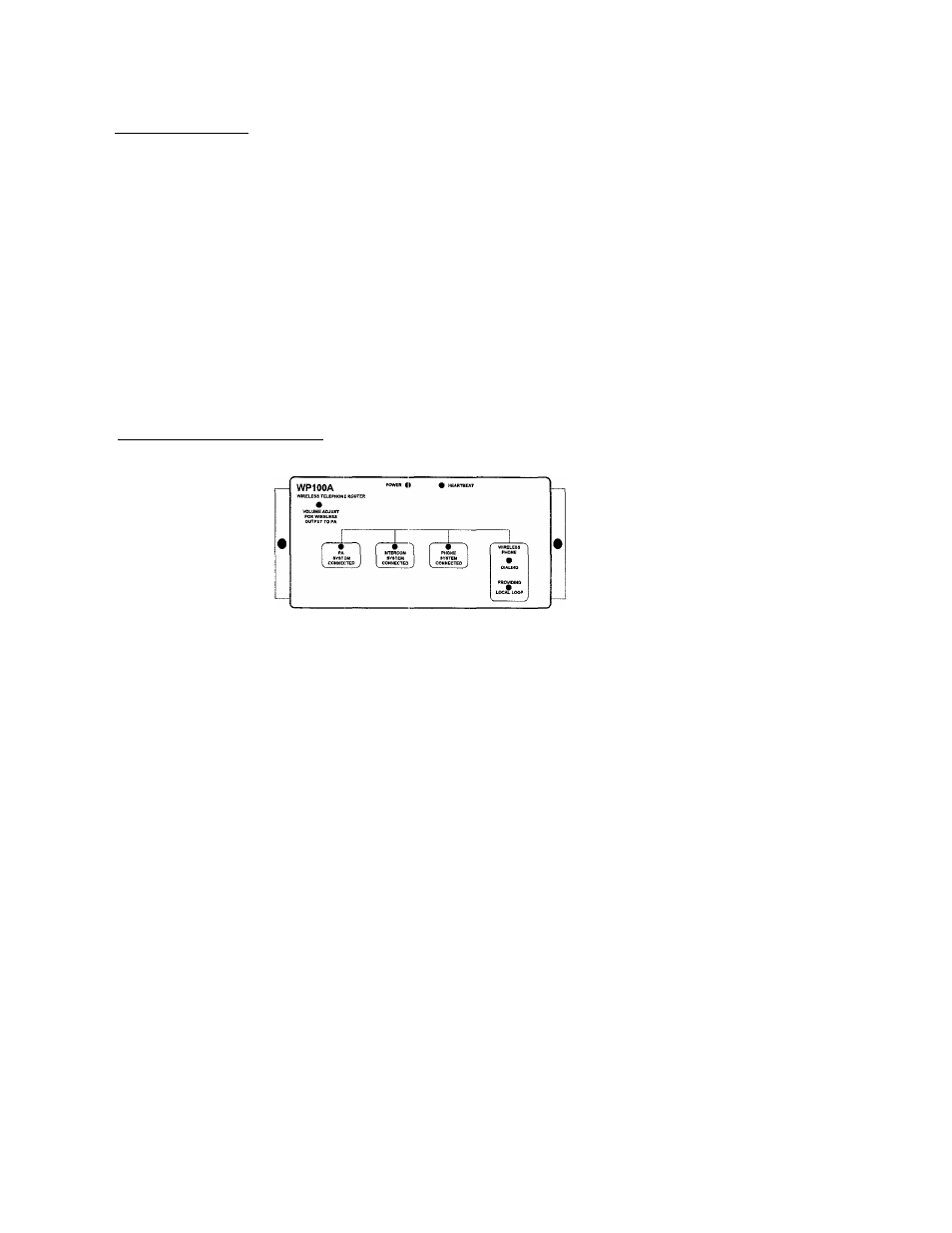

SYSTEM STATUS LED INDICATORS:
Name;
Power
Heartbeat
PA System Connected
Intercom System Connected
Phone System Connected
Dialing
Providing Local Loop
Function:
• Illuminates when power is on
• Fiash(;s during normal operation
• Illuminates when ANA9500 is connected to PA
• Flash(5S for an incoming call, stays lit when the ANA9500
is connected to an intercom station
• Flash(;s for an incoming call, stays lit when the ANA9500
is accessing an outside phone line (or other phone extension)
• Flashes when digits are being pressed on ANA9500
• Illuminates when local loop is provided to the ANA9500 phone
FAULT TOLERANCE:
• If the WP100A loses power, internal jumpers in the WP100A connect the cordless phone
to the facility’s phone system. If the 8-conductor phone cord is unplugged, internal jumpers
will connect the ANA9500 phone to the phone system. This ensures that in power outages
or system tampering that the cordless phone will still have primary telephone functions.
REMOVAL OF WP100A:
If the WP100A Interface unit needs to be taken out of the system for any reason, unplug
the phone cord at the RJ31X terminal block. This will ensure that the cordless phone will
still be connected to the telephone system (through internal jumpers in the RJ31X).
