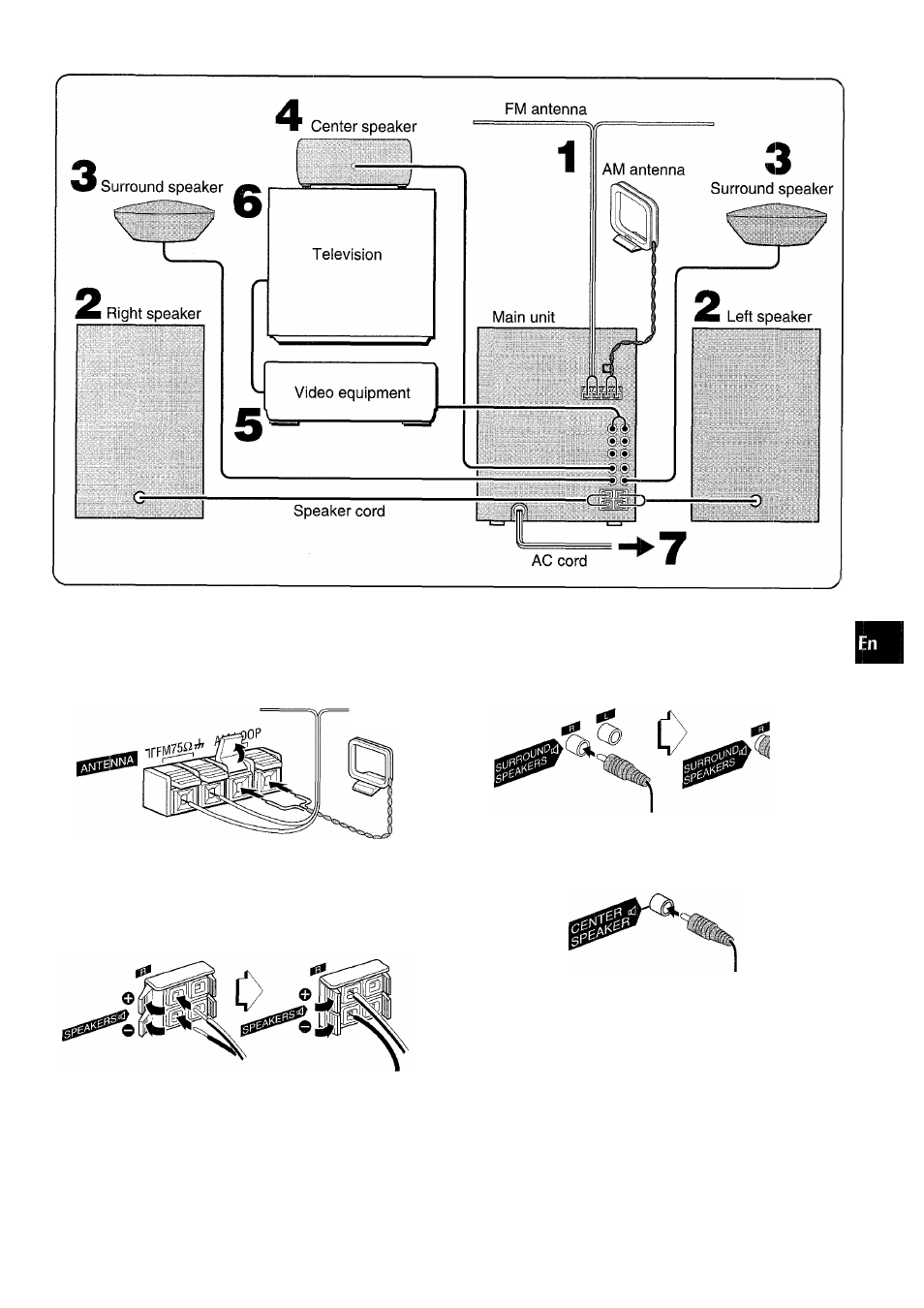

Connect the supplied antennas.
Connect the FM antenna to
FM 75 Cl
terminals and the AM
antenna to
AM LOOP
terminal.
FM antenna
AM antenna
2
Connect the right and left speakers to the main
unit.
Connect the right speaker cord to
SPEAKERS R
terminals,
and left to
SPEAKERS L
terminals.
The speaker cord with the white stripe should be connected
to
O
terminal and the black cord to
O
terminal.
3
Connect the surround speakers to the main unit.
There are no differences between the surround speakers,
Connect each surround speaker cord to
SURROUNDi
SPEAKERS R
or
L
terminal.
Connect the center speaker.
Connect the center speaker cord to
CENTER SPEAKER
terminal.
5 Connect the video equipment.
Connect
VIDEO/AUX
jack of this unit to the audio output jack
of the video equipment with an optional audio connecting cord.
6
Connect the Television to the video equipmcmt.
Refer to the Operating Instructions of the connected equipment
for details.
7 Connect the AC cord to an AC outlet.
• The game Demo will begin when the AC cord is plugged
into an AC outlet. See page 9 “Game Demo” for details.
