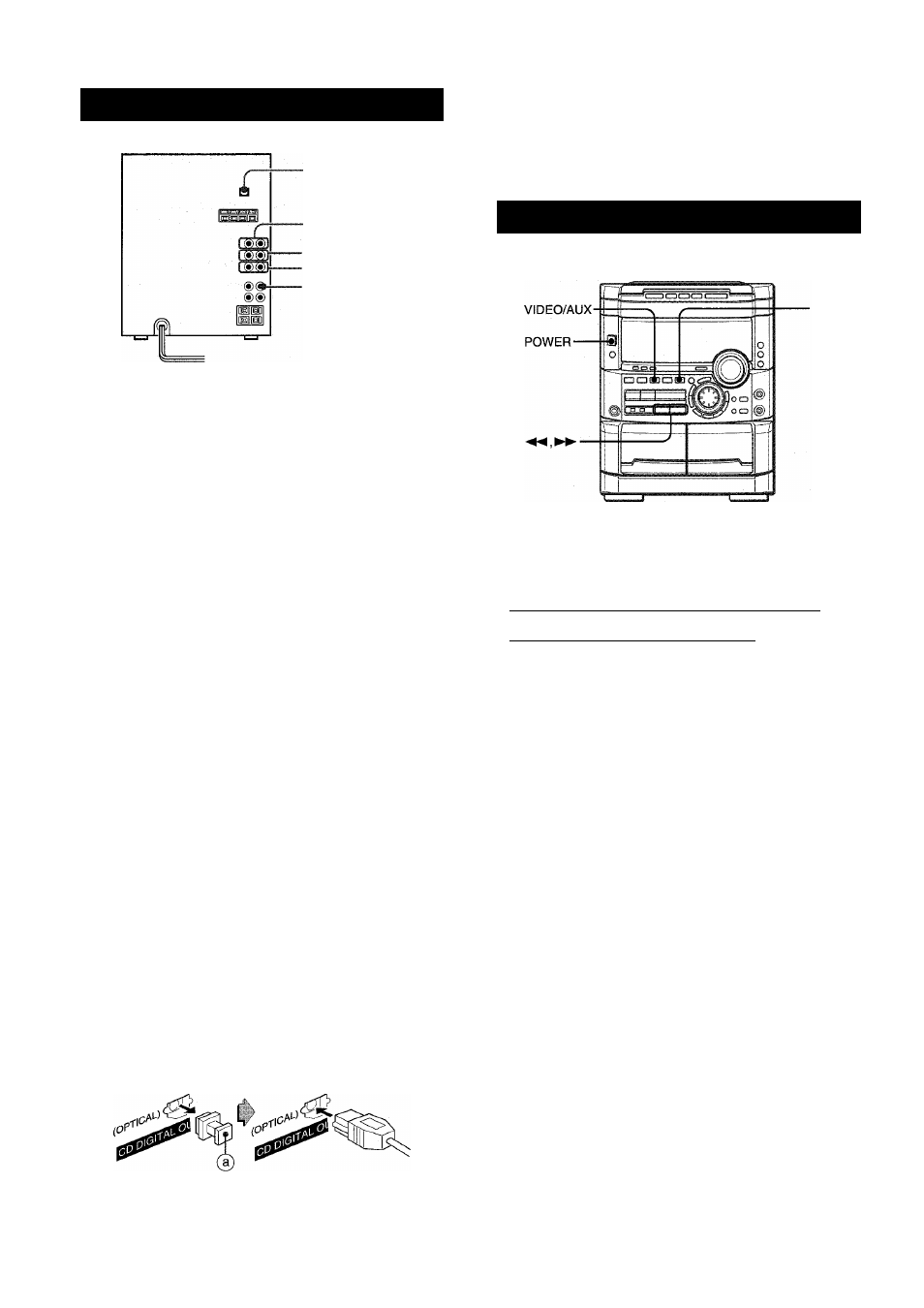

OTHER CONNECTIONS
CONNECTING OPTIONAL EOUIPMENT
SUBW OOFER JACK
-CD DIGITAL OUT
(OPTICAL)
• VIDEO/AUX
■
MD
■
LINE OUT
■ SUB
WOOFER
Refer to the operating instructions of the connected equipment
for detaiis.
• The connecting cords are not supplied. Obtain the necessary
connecting cords.
• Consult your local Aiwa dealer for optional equipment.
This unit can input analog sound signals through these jacks.
Use a cable with RCA phono plugs to connect audio equipment
(turntables, LD players, MD players, VCRs, TV, etc.).
Connect the red plug to the
VIDEO/AUX R
jack, and the white
plug to the
VIDEO/AUX L
jack.
When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.
MD JACKS
This jack is recommended to connect with an MD player.
Use a cable with RCA phono plugs.
Connect the red plug to the
MD R
jack, and the white plug to the
MD L
jack.
LINE OUT JACKS
This unit can output analog sound signal through these jacks.
Use a cable with RCA phono plugs to connect audio equipment
with
LINE IN
(analog input) jacks.
Connect the red plug of a cable to
LINE OUT R
jack, and the
white plug to
LINE OUT L
jack.
Connect an optional powered sub woofer with built-in-amplifier
to the jack.
LISTENING TO EXTERNAL SOURCES
■ MD
To play a equipment connected to
VIDEO/AUX
jacks or
MD
jacks
proceed as follows.
1
Press VIDEO/AUX or MD.
To play the equipment connected to VIDEO/AUX. press
VIDEO/AUX.
“VIDEO” appears on the display.
To play the equipment connected to MD. press
MD.
“MD”
appears on the display.
2
Play the connected equipment.
To change a source name in the display
When
VIDEO/AUX
is pressed, “VIDEO” is displayed initially. It
can be changed to “AUX” or “TV”.
With the power on, press
POWER
while pressing
VIDEO/AUX.
Repeat the procedure to select one of the names.
To adjust the sound level of the external source
When the sound level of the external source is much higher or
much lower than that of other function sources, adjust it as follows.
1
Press
VIDEO/AUX
or
MD
and play the equipment.
2 Presss ◄ ◄ or ► ► so that the sound level becomes the same
as that of other function sources.
Do not connect an equipment to
LINE OUT
jacks and
VIDEO/
AUX
jacks simultaneously. Otherwise, noise is generated and
malfunction occurs.
During recording, the sound level can not be adjusted.
CD DIGITAL OUT (OPTICAL) JACK
This unit can output CD digital sound signals through this jack.
Use an optical cable to connect digital audio equipment (DAT
deck, MD recorder, etc.).
Remove the dust cap
®
from the
CD DIGITAL OUT (OPTICAL)
jack. Then, connect an optical cable plug to the
CD DIGITAL
OUT (OPTICAL)
jack.
When the CD DIGITAL OUT (OPTICAL) jack is not being
used
Attach the supplied dust cap.
32
ENGLISH
