SETTING UP
The Dolby Pro Logic system which is the biggest feature of this
stereo system provides you with audio visual entertainment in
your home.
Complete setting and connection of the main unit, supplied
speakers, your TV and video equipment according to the
following procedure.

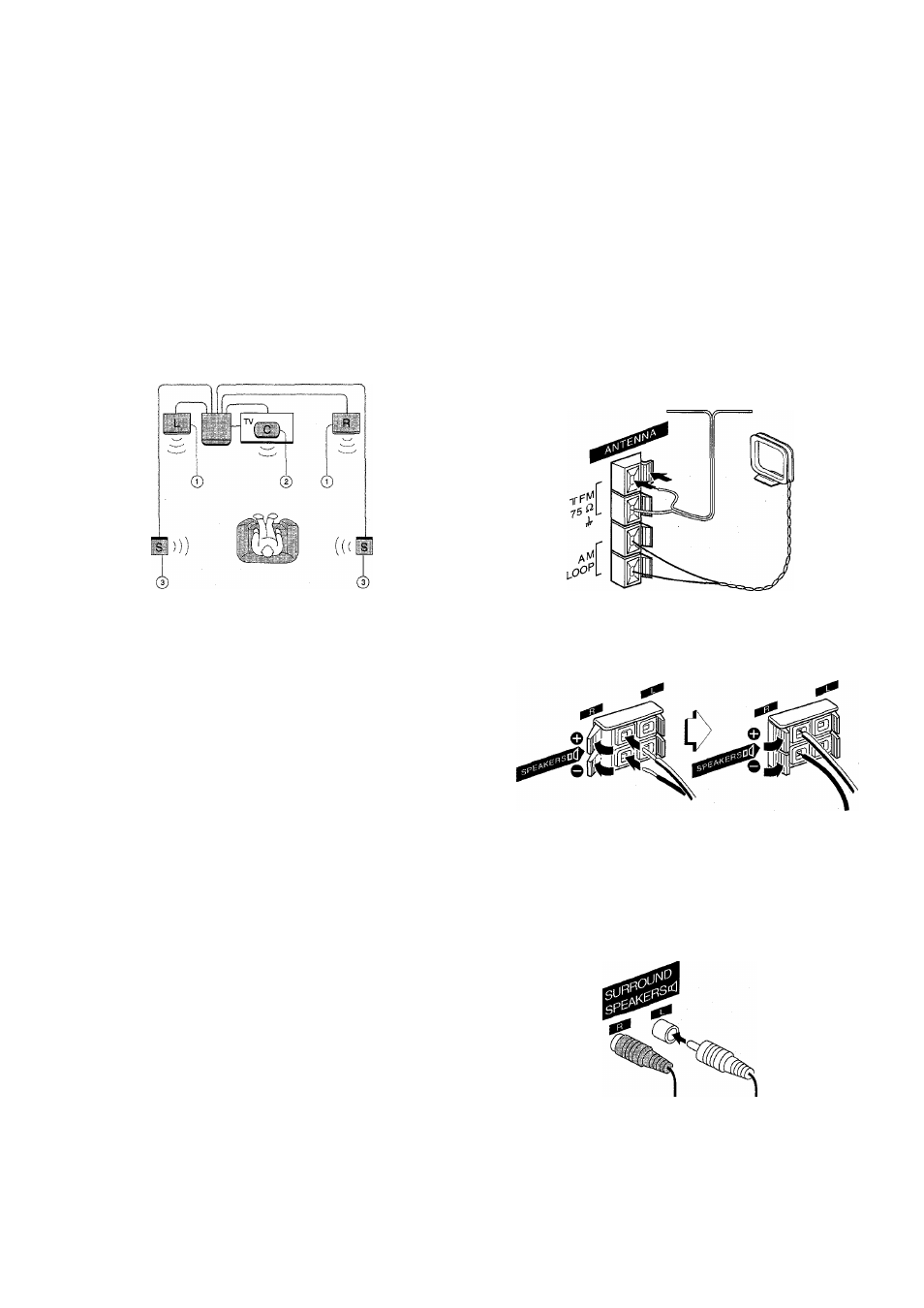

POSITIONING THE SPEAKERS
To achieve the optimum effects obtainable with the Dolby Pro
Logic system, it is important to position the speakers properly.
Refer to the following illustration to find out the best location in
your room.
CONNECTIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
120 V AC. Check that the rated voltage matches your local
voltage.
IMPORTANT
• Connect the speakers, antennas, and all optional equipment
first. Then connect the AC cord in the end.
• The front speaker marked R on the rear is the right speaker,
and the marked L is the left speaker.
• There are no difference between the surround speakers. Both
speakers can be connected as L (left) or R (right).
1 Connect the supplied antennas.
Connect the FM antenna to the FM 75 il terminals and the
AM antenna to the AM LOOP terminals.
© Front speakers
® Center speaker
Position in the center of the two front speakers. In addition,
position on or below the TV set, if connecting a TV set to the
unit.
@ Surround speakers
Place the surround speakers directly to the side of or slightly
behind the listening area. Align them horizontally, about 1
meter (3.2 feet) above ear height.
•
• No sound is heard from the center and surround speakers when
the Dolby Pro Logic and DSP are set to off.
• The center speaker sounds only when the Dolby Pro Logic is
set to on.
2 Connect the front speakers.
Connect the speaker with R mark to SPEAKERS R terminals,
and the speaker with L mark to SPEAKERS L terminals.
The cords with white stripes should be connected to the O
terminals and the other cords to the O terminals.
3 Connect the surround speakers.
There is no difference between the surround speakers. Both
speakers can be connected as R (right) or L (left).
Connect the surround speaker cords to the SURROUND
SPEAKERS <1 terminals.
