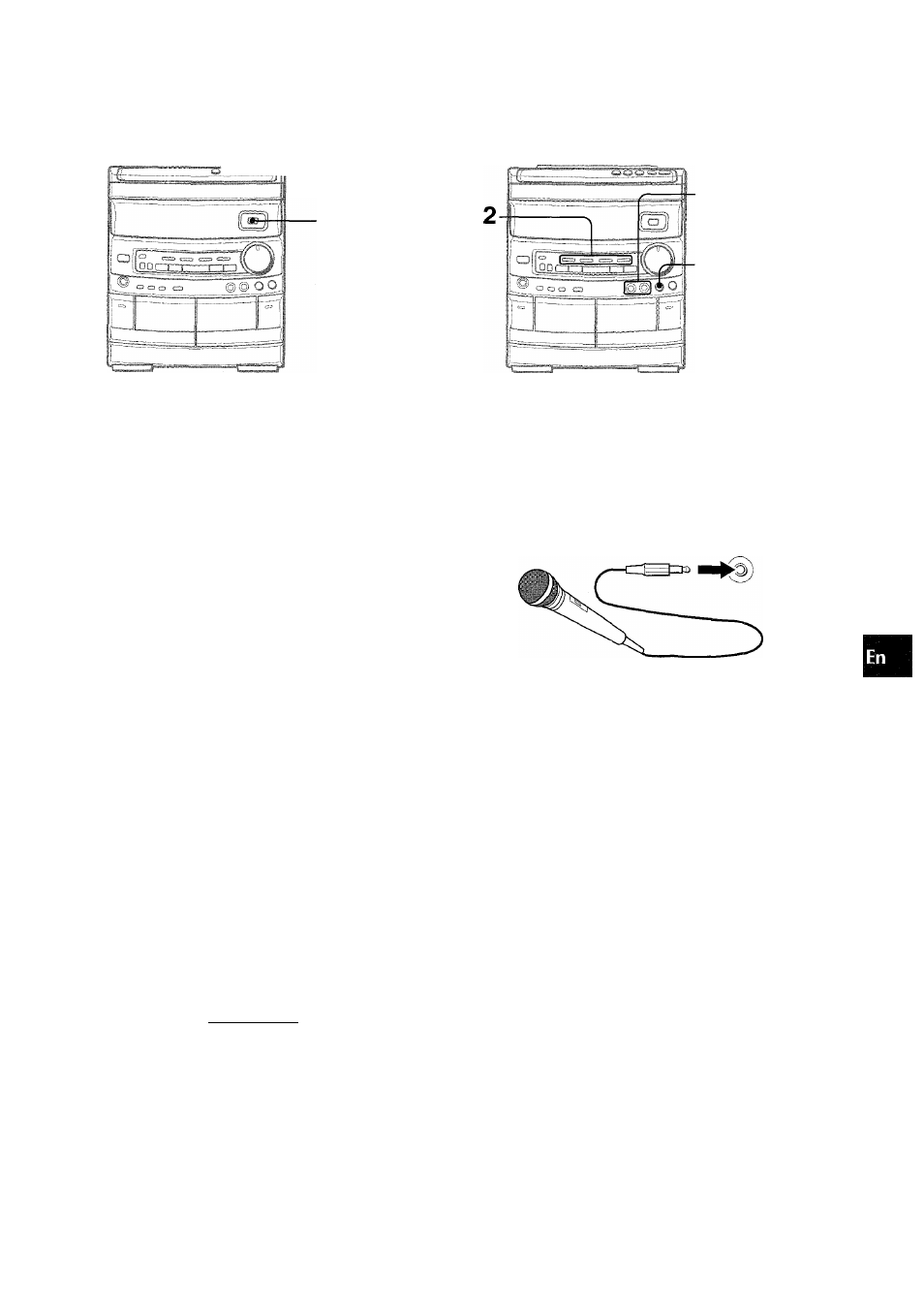

PLAY WITH DOLBY PRO LOGIC MICROPHONE MIXING
'¿.-JTSigST'i
DOLBY
PRO LOGIC
1 Start playback of the video source.
2 Press the DOLBY PRO LOGIC button.
NORMAL is selected, and the playback sound has the DOLBY
PRO LOGIC effect.
To cancel Dolby Pro Logic mode
Press the DOLBY PRO LOGIC button repeatedly until P-oFF Is
displayed.
ADDITIONAL DOLBY PRO LOGIC MODES
In addition to the NORMAL mode, this unit is also equipped with
the PHANTOM and the 3 CH LOGIC modes.
PHANTOM mode: Use this mode when no center speaker is
connected. The center channel signals are output through the
left and right speakers.
3 CH LOGIC mode: Use this mode when no surround speakers
are connected. This mode reproduces rear sounds through the
front speakers.
To select PHANTOM or 3 CH LOGIC
Press the DOLBY PRO LOGIC button to run through the mode
choices for selection in the following sequence.
NORMAL PHANTOM
— cancel —
3 CH LOGIC
]
To adjust the balance of connected speaker sound levels
Carry out steps 2 to 4 on page 17.
' Depending on the sound source and/or listening conditions, a
surround effect may not be obtained even when the DOLBY
PRO LOGIC is on.
' The full DOLBY PRO LOGIC effect cannot be obtained when
using software without nni°°i-°vsuri55u5i5i mark. In this case, use
the SURROUND system instead. (See page 7.)
1
4
i MANUAL
: SELECT
i _Jj_^
i
: ◄◄ ►►
u
o
Ü
O LlJ
-liC
OO
CL QC
a ^
-I
o
Q
Two microphones (not supplied) can be connected to this unit,
allowing you to sing along to music sources.
Use microphones with mini plugs (o3.5 mm.
Vs
inch).
Before connecting a microphone
Set the MIC MIXING control to MIN.
7 Connect your microphones to the MIC 1 and MIC
2 jacks.
MIC1 MIC 2
2 Press one of the function buttons to select the
source to be mixed, and play the source.
3 Adjust the volume and tone of the source.
4 Adjust the microphone volume with the MiC
MiXING control.
The volume of both microphones is adjusted simultaneously.
To echo the microphone sound
Press the MANUAL SELECT button on the remote control once
and then press the ◄◄ or ►► button. The display changes
as follows.
MAX (maximum) ^-3^-6 .... -15 ^ MIN (minimum)
• Make sure the SURROUND and the DOLBY PRO LOGIC are
turned off before pressing the MANUAL SELECT button.
To record microphone sound mixed with source sound
Follow the procedure for recording from the sound source (see
page 13).
The SYNC DUB button cannot be used for mixing recording.
When not using the microphones
Set the MIC MIXING control to MIN and remove the microphones
from the MIC jacks.
ENGLISH 18
