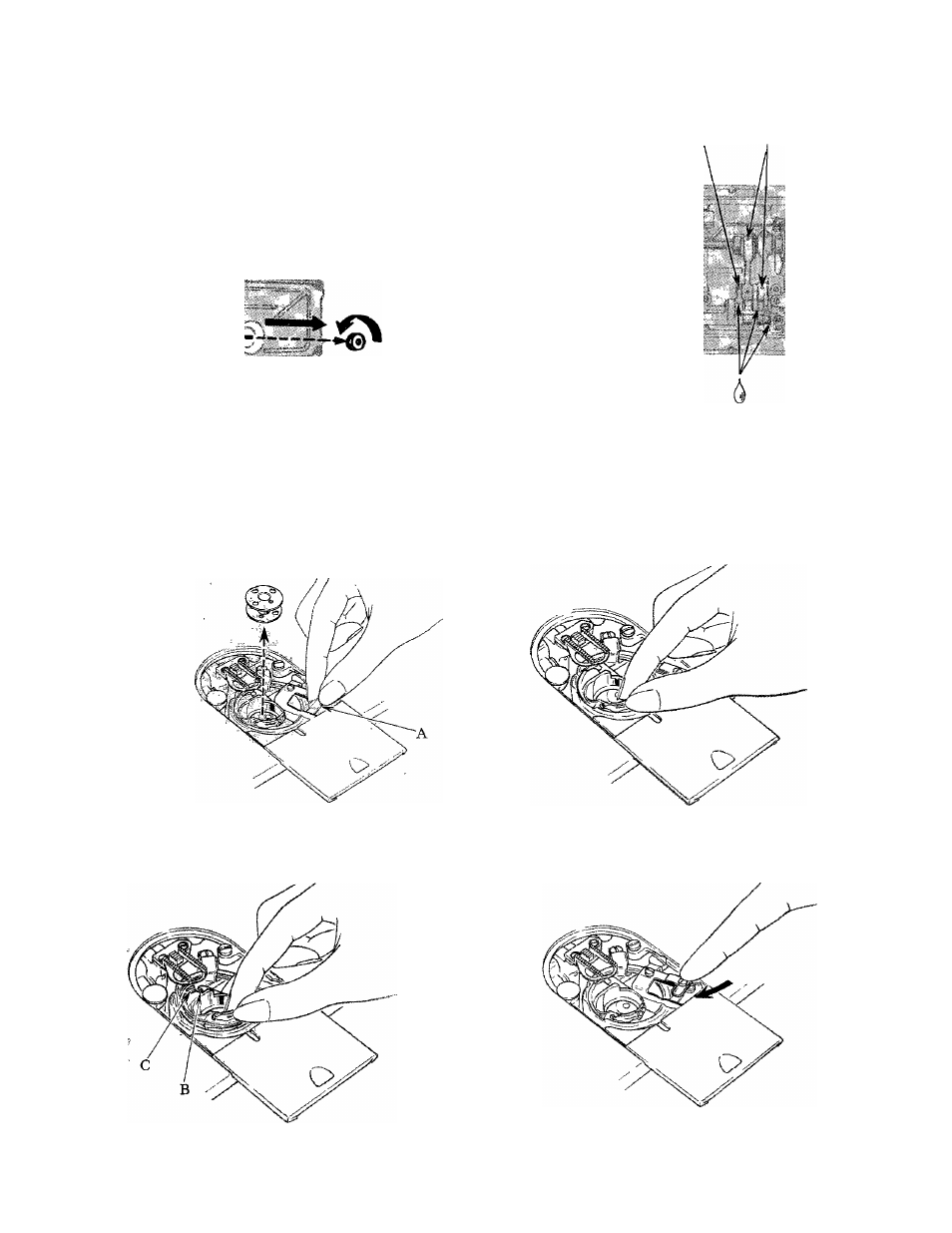

CARING FOR YOUR SEWING MACHINE (Continued)
Oil bottom of machine;
1. Disconnect plug from electrical outlet.
2. Tilt machine back and loosen screw from the center
of the machine bed to remove bottom cover.
3. Apply SINGER oil as shown.
A 6
\
/
If the machine is to be stored away for an indefinite period, a thorough brush-cleaning to remove all traces of
lint and fluff, followed by swabbing of all exposed parts with SINGER oil is necessary to protect the machine
against rust damage.
TO REMOVE AND REPLACE THE BOBBIN CASE
1. Remove throat plate and open slide plate.
2. -Remove the bobbin.
3. -Unlbck bobbin .ease, by lifting and twisting
bolder A to right as shown.
4. Remove bobbin case from machine.
5. Remove all lint, fluff, loose thread ends or any other
foreign matter which might clog the machine.
6. Replace bobbin case so that groove under tension
7
_ Push bobbin case holder to left until it snaps down
spring fits on hook raceway and fork B of case
into lock position.
straddles positioning stud C.
Close bed slide and replace throat plate.
