SINGER 610U User Manual
Page 10
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

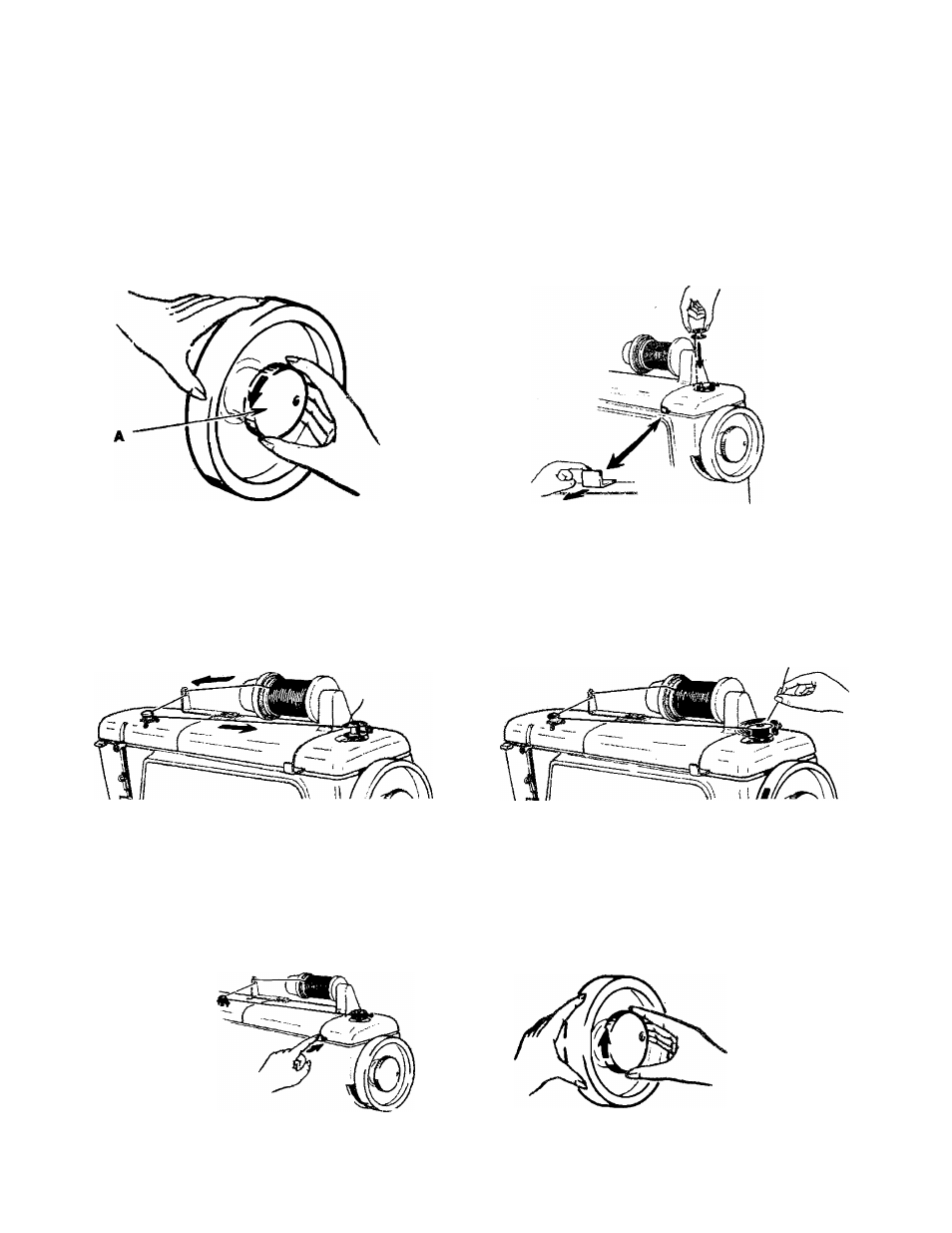

TO WIND THE BOBBIN
1. Loosen stop motion screw
A
with right hand in
direction shown by arrow.
2.
Place empty bobbin on spindle with pin of spindle
entering small hole in lower side of bobbin and pull
bobbin winder actuating slide.
Place spool of thread on Horizontal Spool Pin.
Carry the thread through the thread guide on the
arm top cover lid, between bobbin winder tension
discs and then through the hole in upper side of
bobbin as shown below.
4, Hold end of thread until a few coils are wound and
then break off the end of thread.
WHEN BOBBIN IS FULL
L
Push
bobbin
winder
actuating
slide
end
remove bobbin.
2.
Tighten stop motion
screw.
